AgentSmith-HUB

A high-performance security data pipeline with a real-time rules engine and deeply integrated LLM agents — built for modern SOC and detection engineering teams.

Process, enrich, detect, and respond at scale — with simple XML-based rules, CEP, rich plugins, and AI-powered analysis wired directly into the stream.

If you work in security operations, you probably deal with massive volumes of raw logs and alerts every day. You need to normalize, enrich, correlate, and route them — and ideally detect threats in real time, not in batch jobs. AgentSmith-HUB is built to handle all of this in a single, opinionated platform:

• High-signal detections, not dashboards — Design real-time detections and data transformations with simple, readable XML rules instead of ad‑hoc scripts
• Blazing fast at scale — 3.90M messages/sec on just 2 vCPUs (benchmark); built to sit directly in front of your SIEM / lake
• All-in-one pipeline — Input, normalization, enrichment, correlation, and output in one flow; no more glue scripts between Kafka, ES, ClickHouse, and “rule engines”
• First-class CEP — Detect ordered event sequences, absence patterns, and multi-source correlations over time with <sequence>, <threshold>, <iterator>, and <checklist>
• LLM agents in the stream — Drop LLM-powered agents into the same pipeline for alert triage, enrichment, rule authoring, and auto-whitelisting

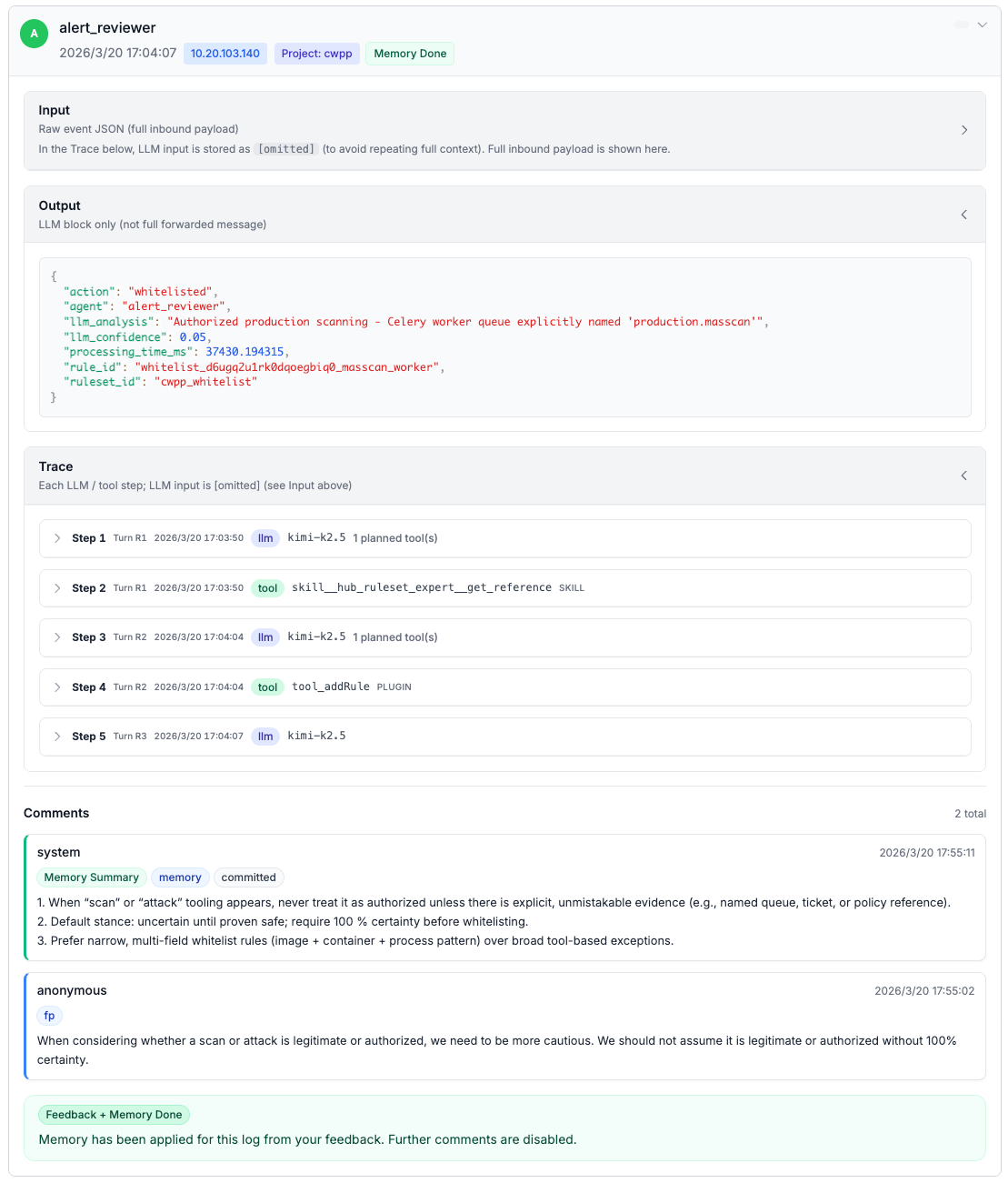

• Comment-to-memory learning loop — Convert reviewer comments from Agent Tools Logs into durable memory_notes, auto-commit updates, and continuously improve agent behavior
• Skills system — Attach knowledge bases and operational tools to agents via Skills, with progressive disclosure so prompts stay small and fast
• Rich plugin ecosystem — Threat intel (VirusTotal, ThreatBook, Shodan), GeoIP, encoding, regex, time/window helpers, LLM calls, and more
• Production features out of the box — Cluster mode, health checks, daily stats, sample data, Push Changes / review workflow, and a modern Web UI for rule and project orchestration

• SOC / CERT / CSIRT teams that want an opinionated place to run detections, triage alerts, and reduce false positives without building their own engine from scratch.
• Detection engineers / threat hunters who care about CEP, thresholds, and precise control over when an alert fires (and when it must not).
• Security platform / data teams who already own Kafka / ES / ClickHouse and want a thin, fast, open platform to orchestrate security data flows and LLM-powered analysis.

AgentSmith-HUB uses a straightforward pipeline model:

INPUT (Kafka / SLS / ...) → RULESET / AGENT → RULESET / AGENT → OUTPUT (Kafka / ES / ClickHouse / SLS / ...)

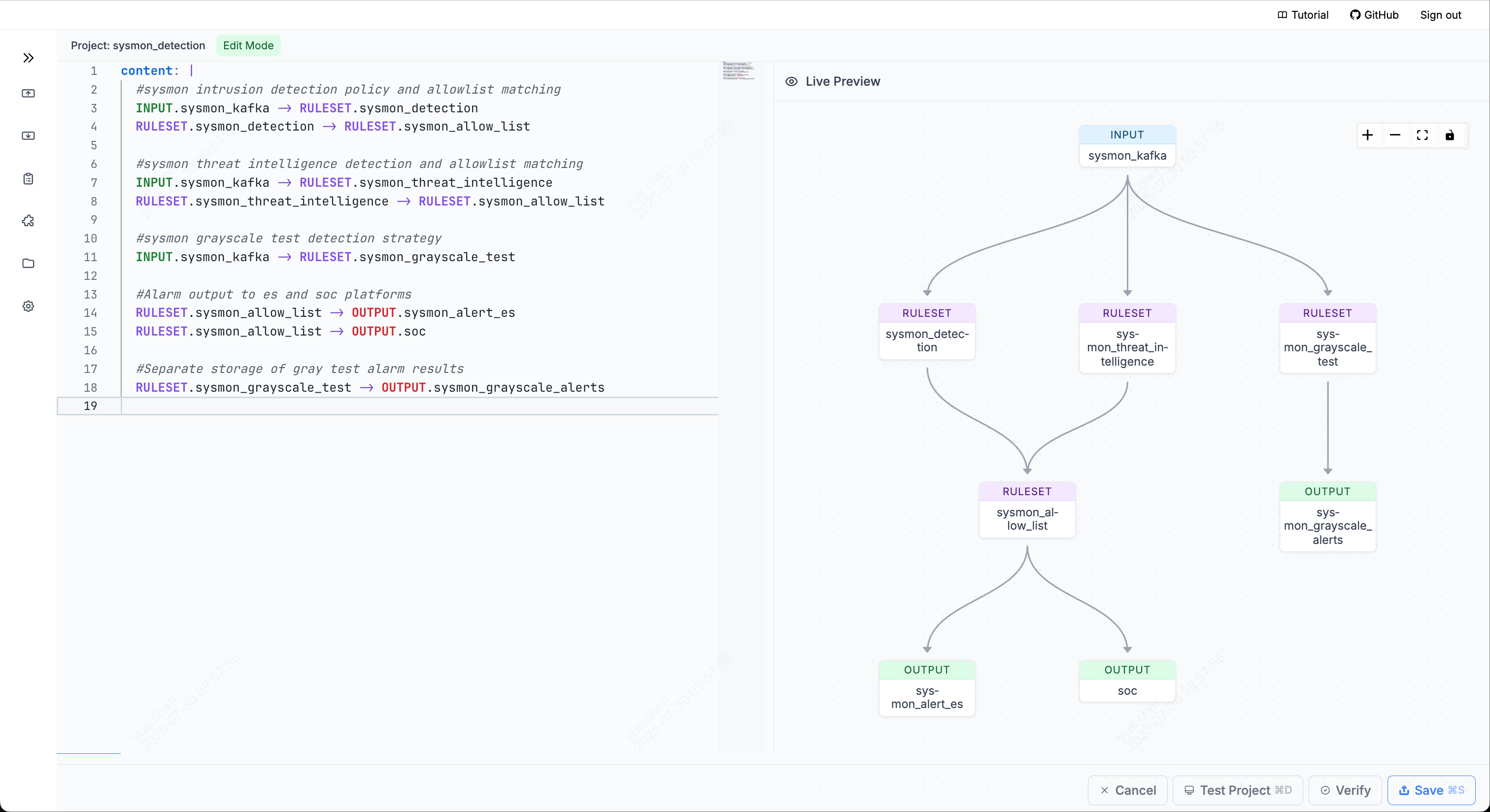

Rulesets and agents can be freely chained within a Project, giving you full control over data flow and allowing you to mix “hard” rules with “soft” LLM judgement in the same stream:

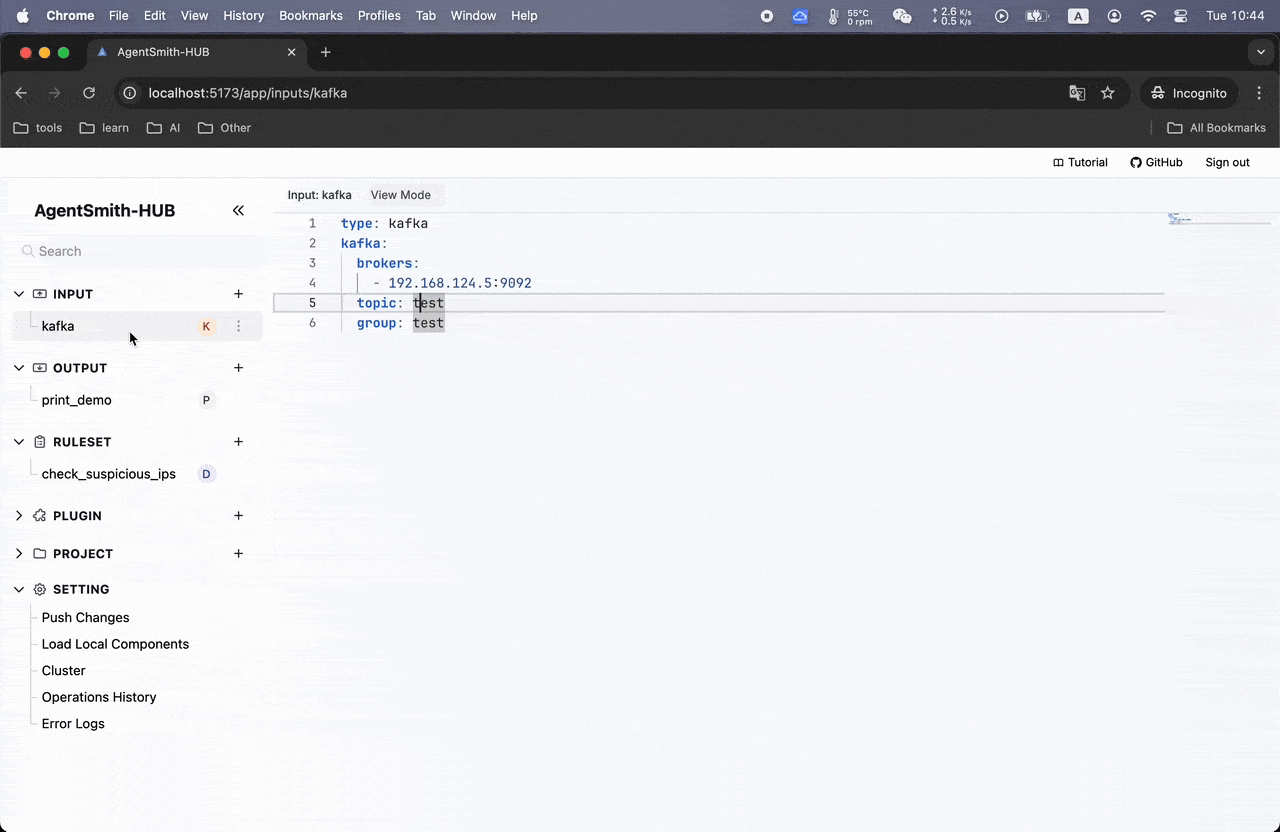

• INPUT: Connects to streaming sources like Kafka, Aliyun SLS, and cloud-managed Kafka variants; supports Grok parsing and JSON so you normalize once and reuse everywhere.
• RULESET: XML-based real-time rules engine with checks, checklists, thresholds (count / SUM / CLASSIFY), CEP sequences, iterators, and data append/modify/del — all executed strictly in the order you write them.
• AGENT: LLM-powered node that runs in the same pipeline as rulesets; for each event it can call an LLM (with tools and skills) to score, enrich, or auto-generate rules/whitelists, then forward the enriched event downstream.
• OUTPUT: Sends processed data to Kafka, Elasticsearch (v7/v8/v9), ClickHouse, or simple print, with batching, time-based flush, TLS/auth, and idempotent Kafka producers for safe delivery.
• SKILL: Reusable capability module for agents — knowledge skills provide on‑demand reference content, builtin skills expose Go-implemented tools like hub_ruleset_editor for ruleset CRUD.
• PLUGIN: Extensible function system powering checks, enrichment, and actions: GeoIP, URL parsing, encoding, time window helpers, threat intelligence lookups, single-shot LLM calls, and more — all composable directly in rules.

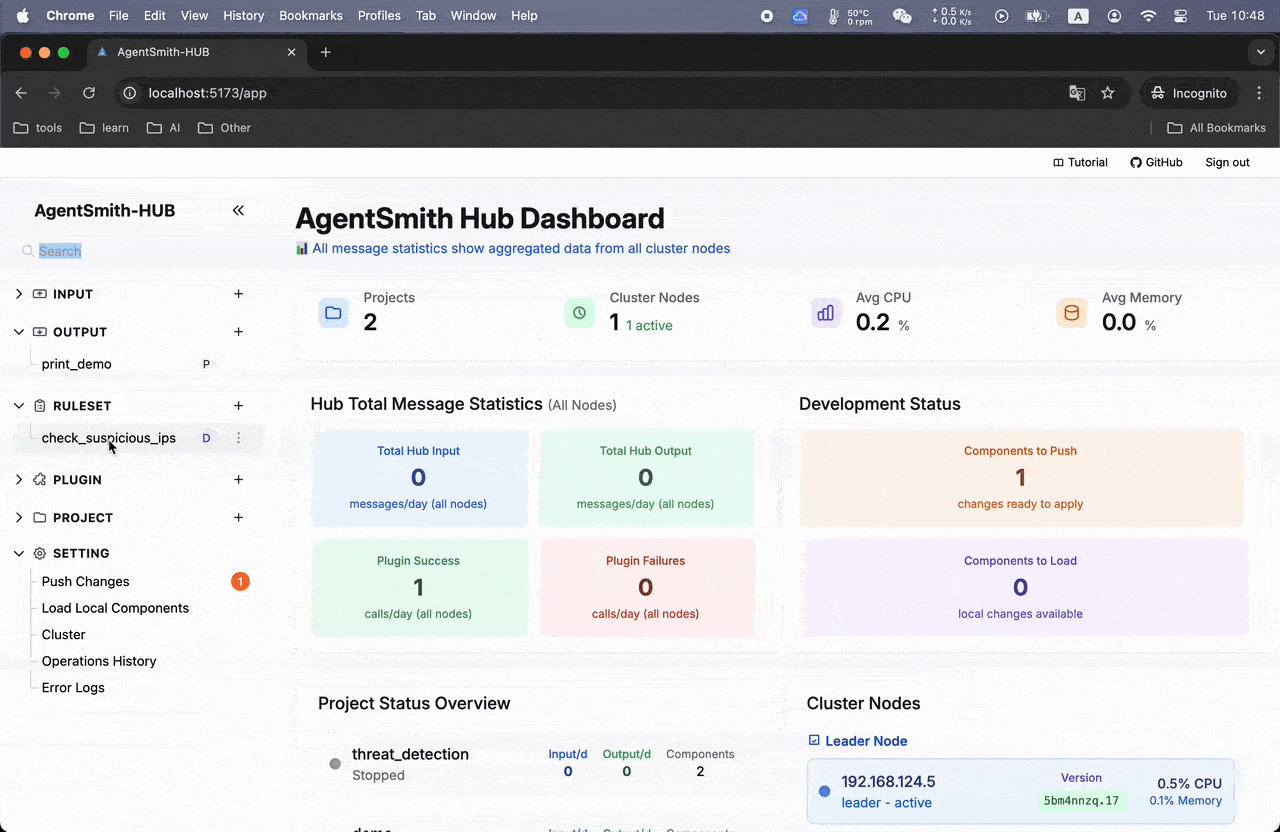

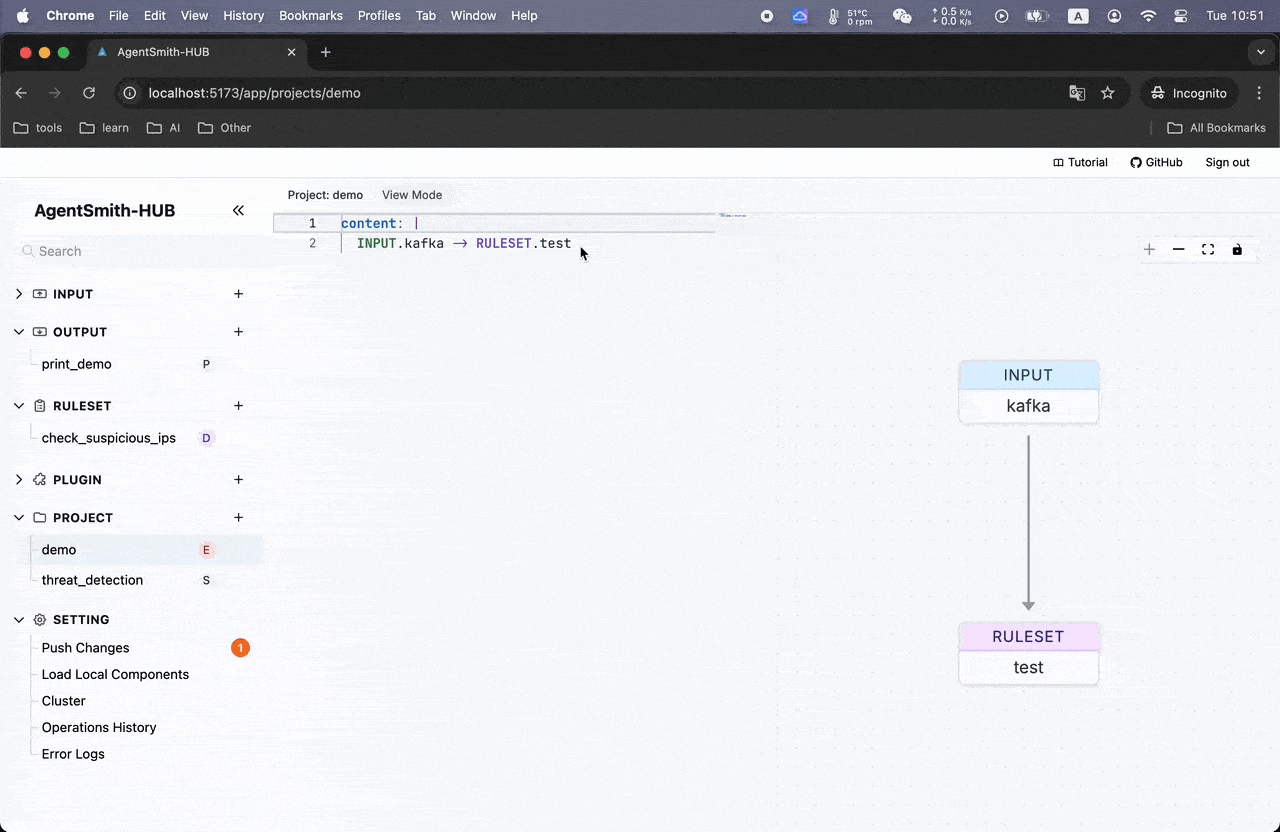

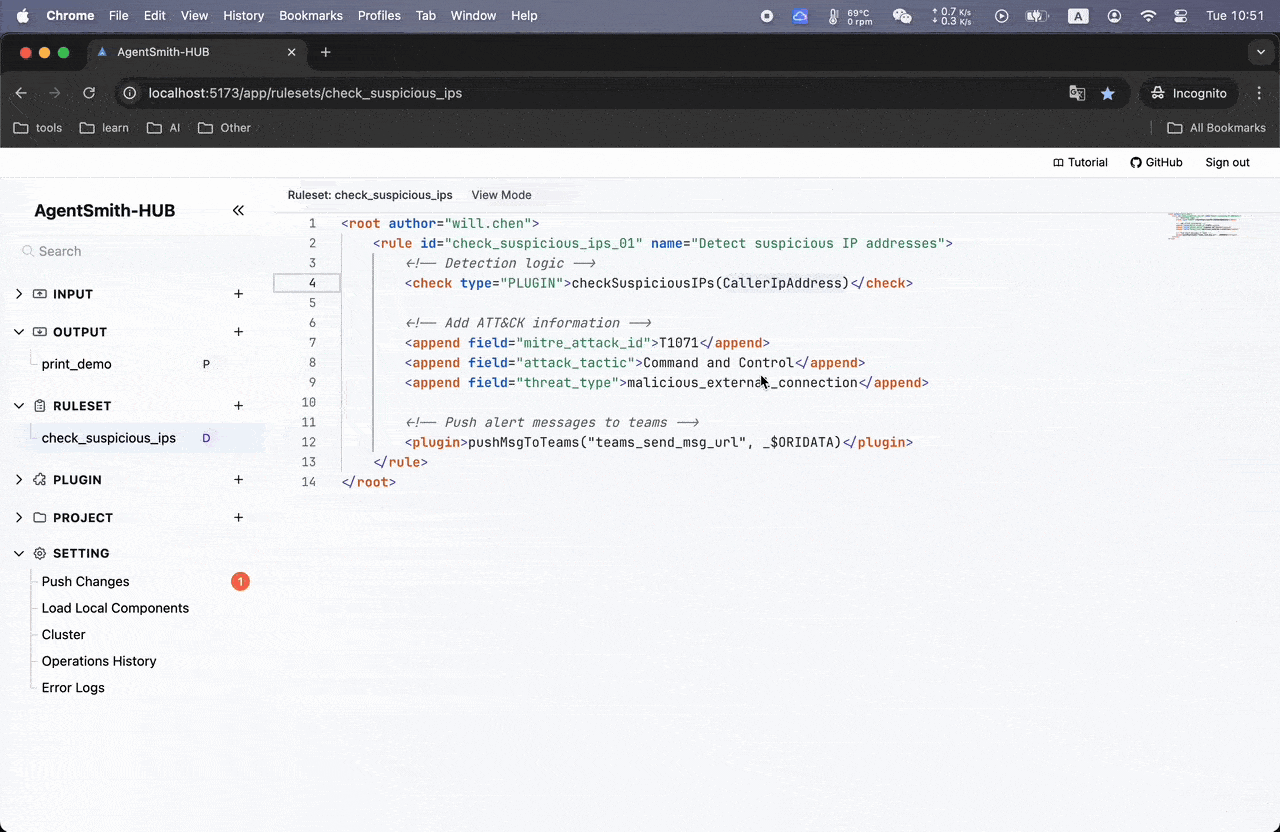

• Visual rule and project editing: Rich browser UI for editing rulesets with syntax help, validation, and GIF-level feedback; drag-style project orchestration to define INPUT → RULESET / AGENT → OUTPUT flows.

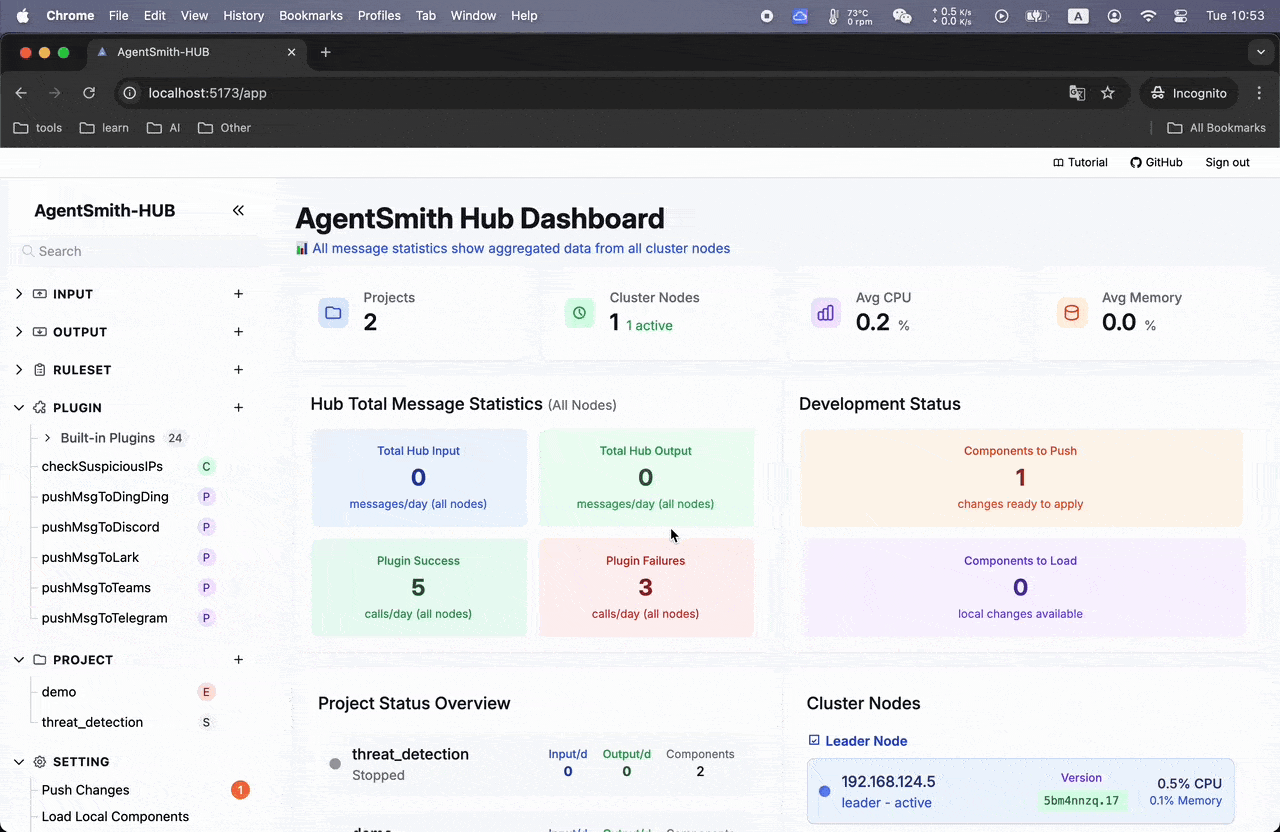

• One-click testing everywhere: Built-in test runners for Output, Ruleset, Plugin, Agent, and Project components (including sample data capture), so you can validate changes before they hit real outputs.

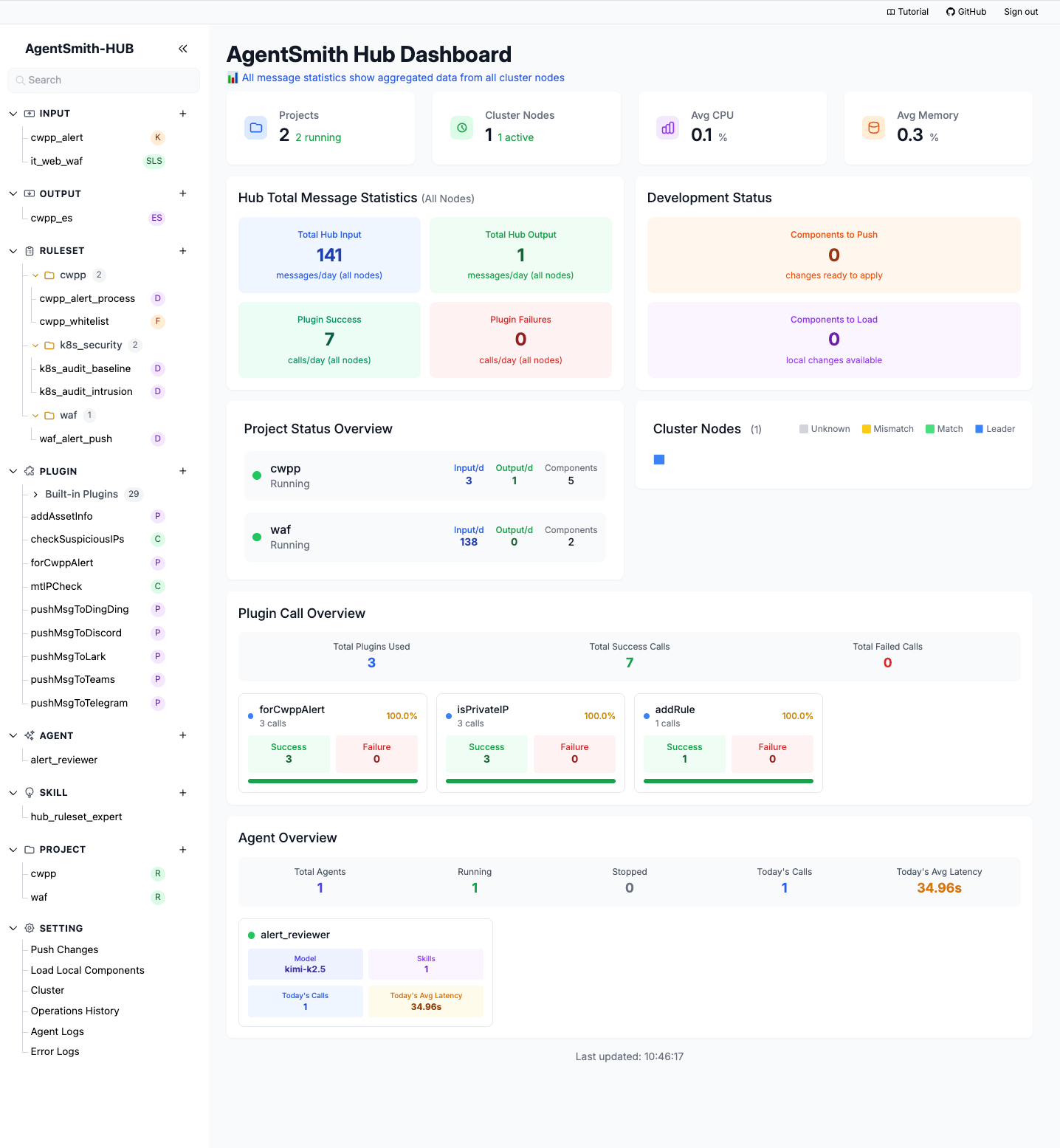

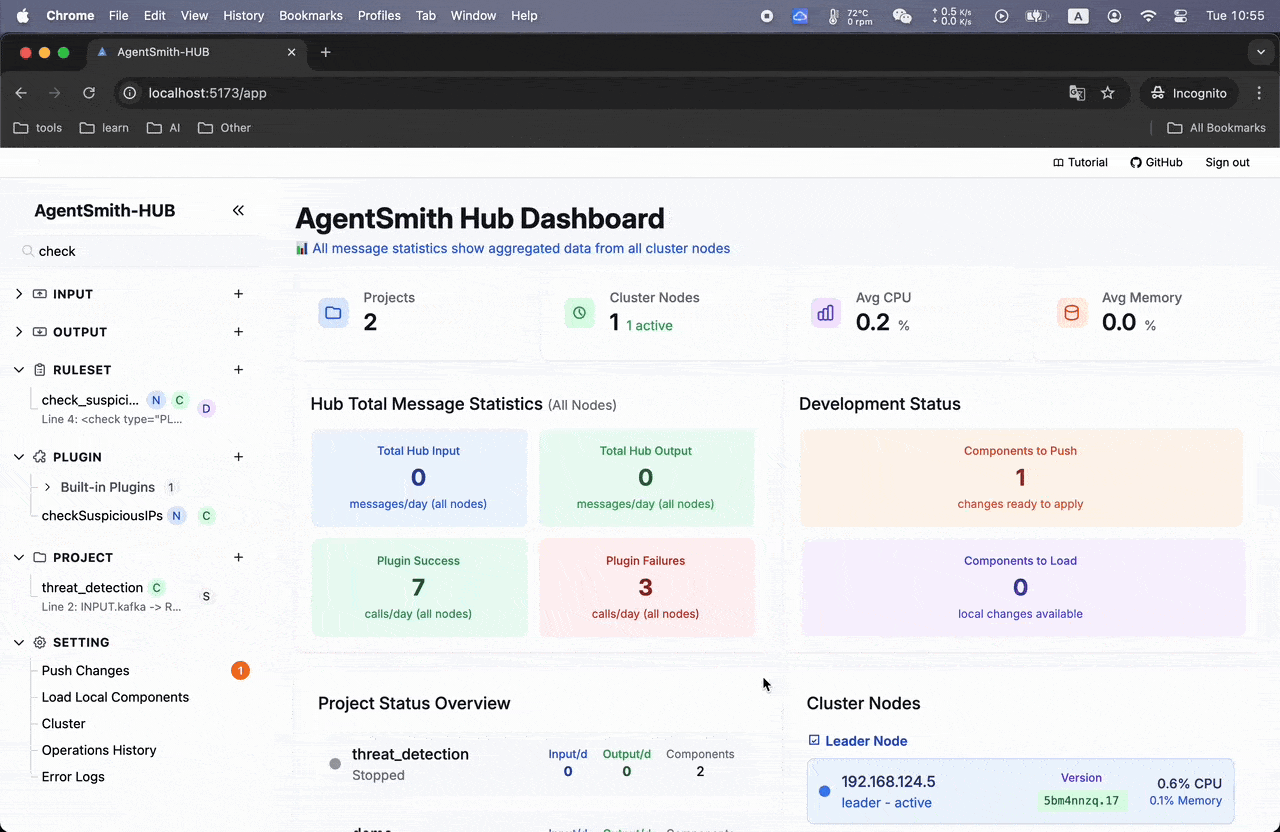

• Operations, errors, and cluster view: Dedicated views for error logs, operations history (project start/stop/restart, config changes, agent tool calls), and basic cluster status so you can see what is running where.
• Safe change management: All edits go through temporary configs, diff & review, and then Push Changes to apply — the platform automatically figures out affected projects and restarts them safely.
• HTTP API for automation: JSON APIs mirror the UI capabilities (component CRUD, project lifecycle, testing), so you can integrate AgentSmith-HUB into CI/CD, internal portals, or automation scripts.

At the heart of AgentSmith-HUB is a streaming rules engine designed for security detections:

• Checks & checklists: Match on strings, numbers, regex, and plugins; combine conditions with AND/OR/NOT using logical expressions.
• Thresholds & windows: Detect frequency, sums, or distinct counts over sliding time windows (e.g. brute-force, spray, exfil).
• CEP sequences: Express ordered multi-event patterns and absence (e.g. login -> !mfa, recon -> exploit -> exfil) with <sequence>.
• Data shaping: Enrich, modify, or delete fields in place, and call plugins to pull in external context or compute derived fields.

A minimal example that enriches with threat intel and then detects on the enriched field:

<rule id="enrich_and_detect" name="Enrich with TI then alert">
    <append type="PLUGIN" field="threat_info">threatbook(src_ip)</append>
    <check type="EQU" field="threat_info.severity">high</check>
    <append field="alert_level">critical</append>
</rule>

For the full syntax (all operations, modes, and best practices), see the Complete Guide.

Agents are LLM-powered components that sit in the pipeline alongside rulesets. They process events independently, call an LLM with tool-use support, and forward enriched results downstream.

# Agent: AI-powered alert triage
model: gpt-4o-mini
system_prompt: |
  For each alert, add llm_confidence (0-1) and llm_analysis fields.
skills:
  - hub_ruleset_expert    # Knowledge skill: rules engine reference
tools: all                # Expose all plugins as LLM tools
max_rounds: 3
timeout: 30s

# Optional long-term memory (recommended as YAML sequence)
memory_notes:
  - Keep output JSON compact and stable.
  - Treat routine CI scanner traffic as lower priority unless other signals exist.

Skills provide modular capabilities to agents:

• Knowledge skills — Reference docs loaded on-demand (progressive disclosure)
• Builtin skills — Go-implemented tools (e.g., hub_ruleset_editor for reading/writing rulesets)

Quick production tips:

• Prefer tools: [] by default and allowlist only needed plugin tools.
• Use tools: all only for broad assistant agents (rule-authoring / deep triage).
• In cluster mode, memory write/generate actions must go to the leader node.

Use agents in your project like any other component:

content: |
  INPUT.kafka_alerts -> AGENT.alert_reviewer
  AGENT.alert_reviewer -> OUTPUT.enriched_alerts

For full agent details (fields like reasoning_mode, reasoning_budget_tokens, memory_notes, and memory workflow in UI/API), see the Complete Guide.

AgentSmith-HUB ships with production-ready detection rulesets that you can deploy immediately — no rule-writing required. All rules are mapped to MITRE ATT&CK for seamless integration with your security workflows.

AgentSmith-HUB includes Kubernetes security rulesets out of the box. You can use them directly without writing custom XML first:

• config/ruleset/k8s_security/k8s_audit_baseline.xml
• config/ruleset/k8s_security/k8s_audit_intrusion.xml

Recommended onboarding flow:

1. Import both built-in rulesets.
2. Route Kubernetes audit logs to these rulesets in your Project.
3. Verify detections in test mode with real sample events.
4. Tune thresholds (if needed) for your cluster's normal behavior.

Two Sysmon rulesets are provided for medium/high-confidence endpoint detection use cases:

• config/ruleset/sysmon_security/sysmon_baseline.xml
• config/ruleset/sysmon_security/sysmon_intrusion.xml
• config/ruleset/sysmon_security/sysmon_exclude.xml (strict allowlist template)

Recommended onboarding flow for Sysmon:

1. Ensure your input normalizes core Sysmon fields used by rulesets.
2. Import sysmon_baseline.xml first and validate behavior in test mode.
3. Import sysmon_intrusion.xml and tune based on your endpoint baseline.
4. Add environment-specific allowlists with a separate EXCLUDE ruleset if needed.

More built-in rulesets for additional data sources are on the roadmap. Contributions are welcome!

1. Download and extract the release archive to /opt/agentsmith-hub
2. Copy the config folder: cp -r /opt/agentsmith-hub/config /opt/hub_config
3. Configure Redis in /opt/hub_config/config.yaml
4. Start the service:

   # Leader mode (default)
   ./start.sh

   # Follower mode (uses the same Redis as leader)
   ./start.sh --follower

   # See all options
   ./start.sh --help

5. Access token is generated at /etc/hub/.token on first run
6. Install and configure Nginx:

   sudo cp /opt/agentsmith-hub/nginx/nginx.conf /etc/nginx/
   sudo nginx -s reload

7. Open http://your-host in your browser (port 80)

• Complete Guide | Guide (Chinese)
• Performance Testing Report

AgentSmith-HUB is licensed under the Apache License 2.0 with the Commons Clause restriction.

You are free to use, modify, and deploy this software — the restriction only prevents selling the software itself as a commercial product or service. Internal enterprise use is fully permitted.
