SeekStorm: sub-millisecond, native vector & lexical search - in-process library & multi-tenancy server, in Rust.
Development started in 2015, in production since 2020, Rust port in 2023, open sourced in 2024, work in progress.
SeekStorm is open source licensed under the Apache License 2.0
Blog Posts: SeekStorm is now Open Source and SeekStorm gets Faceted search, Geo proximity search, Result sorting
- Internally, SeekStorm uses two separate, first-class, native index architectures for vector search and keyword search. Two native cores, not just a retrofit, add-on layer.
- SeekStorm doesn’t try to make one index do everything. It runs two native search engines and lets the query planner decide how to combine them.
- Two native index architectures under one roof:
- Lexical search: an inverted index optimized for lexical relevance,
- Vector search: an ANN index optimized for vector similarity.
- Both are first-class engines, integrated at the query planner level.
- Query planner with multiple QueryModes and FusionTypes
- Per query choice of lexical search, vector search, or hybrid search.
- Separate internal index, storage layouts, indexing, search, scoring, top-k candidates - unified query planner and result fusion (Reciprocal Rank Fusion - RRF).
- But the user is fully shielded from the complexity, as if it was only a single index.
- Enables pure lexical, pure vector or hybrid search (exhaustive, not only re-ranking of preliminary candidates).
- Fast sharded indexing: 35K docs/sec = 3 billion docs/day on a laptop.
- Fast sharded search: 7x faster query latency, 17x faster tail latency (P99) for lexical search.
- Billion-scale index
- Index either in RAM or memory mapped files
- Cross-platform (Windows, Linux, MacOS)
- SIMD (Single Instruction, Multiple Data) hardware acceleration support,
both for x86-64 (AMD64 and Intel 64) and AArch64 (ARM, Apple Silicon). - Single-machine scalability: serving thousands of concurrent queries with low latency from a single commodity server without needing clusters or proprietary hardware accelerators.
- 100% human 😎 craftsmanship - No AI 🤖 was forced into vibe coding/AI slop.
- Multi-Vector indexing: both from multiple fields and from multiple chunks per field.
- Integrated inference: Generate and index embeddings from any text document field.
- Alternatively, import and index externally generated embeddings.
- Multiple vector precisions: F32, I8.
- Multiple similarity measures: Cosine similarity, Dot product, Euclidean distance.
- Scalar Quantization (SQ).
- Chunking that respects sentence boundaries and Unicode segmentation for multilingual text.
- K-Medoid clustering: PAM (Partition Around Medoids) with actual data points as centers.
- Sharded and leveled IVF index.
- Approximate Nearest Neighbor Search (ANNS) in an Leveled IVF index.
- All field filters are directly active during vector search, not just as post-search filtering step.
- BM25F and BM25F_Proximity ranking
- 6 tokenizers, including Chinese word segmentation.
- Stemming for 38 languages.
- Optional stopword lists, custom and predefined, for smaller indices and faster search.
- Frequent word lists, custom and predefined, for faster phrase search by N-gram indexing.
- Inverted index
- Roaring-bitmap posting list compression.
- N-gram indexing
- Block-max WAND and Maxscore acceleration
- True real-time search, both for vector search and lexical search, with negligible performance impact
- Incremental indexing
- Unlimited field number, field length & index size
- Compressed document store: ZStandard
- Field filtering
- Faceted search: Counting & filtering of String & Numeric range facets (with Histogram/Bucket & Min/Max aggregation)
- Result sorting by any field, ascending or descending, multiple fields combined by "tie-breaking".
- Geo proximity search, filtering and sorting.
- Iterator to iterate through all documents of an index, in both directions, e.g., for index export, conversion, analytics and inspection.
- Search with empty query, but query facets, facet filter, and result sort parameters, ascending and descending.
- Typo tolerance / Fuzzy queries / Query spelling correction: return results if the query contains spelling errors.
- Typo-tolerant Query Auto-Completion (QAC) and Instant search.
- KWIC snippets, highlighting
- One-way and multi-way synonyms
- Language independent
- U8..U64
- I8..I64
- F32, F64
- Timestamp
- Bool
- String16, String32
- StringSet16, StringSet32
- Text (Multi-vector: automatically generated embeddings for each text field)
- Point
- Json
- Binary (embedded images, audio, video, pdf)
- Vector (externally generated embeddings)
- OR disjunction union
- AND conjunction intersection
- "" phrase
- - NOT
- TopK
- Count
- TopKCount
- Index and search via RESTful API with CORS.
- Ingest local data files in CSV, JSON, Newline-delimited JSON (ndjson), and Concatenated JSON formats via console command.
- Ingest local PDF files via console command (single file or all files in a directory).
- Multi-tenancy index management.
- API-key management.
- Embedded web server and web UI to search and display results from any index without coding.
- Web UI with query auto correction, query auto-completion, instant search, keyword highlighting, histogram, date filter, faceting, result sorting, document preview (as demo, for testing, as template).
- Code first OpenAPI generated REST API documentation
- Cross-platform: runs on Linux, Windows, and macOS (other OS untested).
- Docker file and container image at Docker Hub
Twin-core native vector & keyword search
Two separate, first-class, native index architectures for vector search and keyword search under one roof.
A query planner with 8 dedicated QueryModes and FusionTypes automatically decide how to combine the results for maximum query understanding.
Performance
Lower latency, higher throughput, lower cost & energy consumption, esp. for multi-field and concurrent queries.
Low tail latencies ensure a smooth user experience and prevent loss of customers and revenue.
While some rely on proprietary hardware accelerators (FPGA/ASIC) or clusters to improve performance,
SeekStorm achieves a similar boost algorithmically on a single commodity server.
Consistency
No unpredictable query latency during and after large-volume indexing as SeekStorm doesn't require resource-intensive segment merges.
Stable latencies - no cold start costs due to just-in-time compilation, no unpredictable garbage collection delays.
Scaling
Maintains low latency, high throughput, and low RAM consumption even for billion-scale indices.
Unlimited field number, field length & index size.
Relevance
Term proximity ranking provides more relevant results compared to BM25.
Real-time
True real-time search, as opposed to NRT: every indexed document is immediately searchable, even before and during commit.

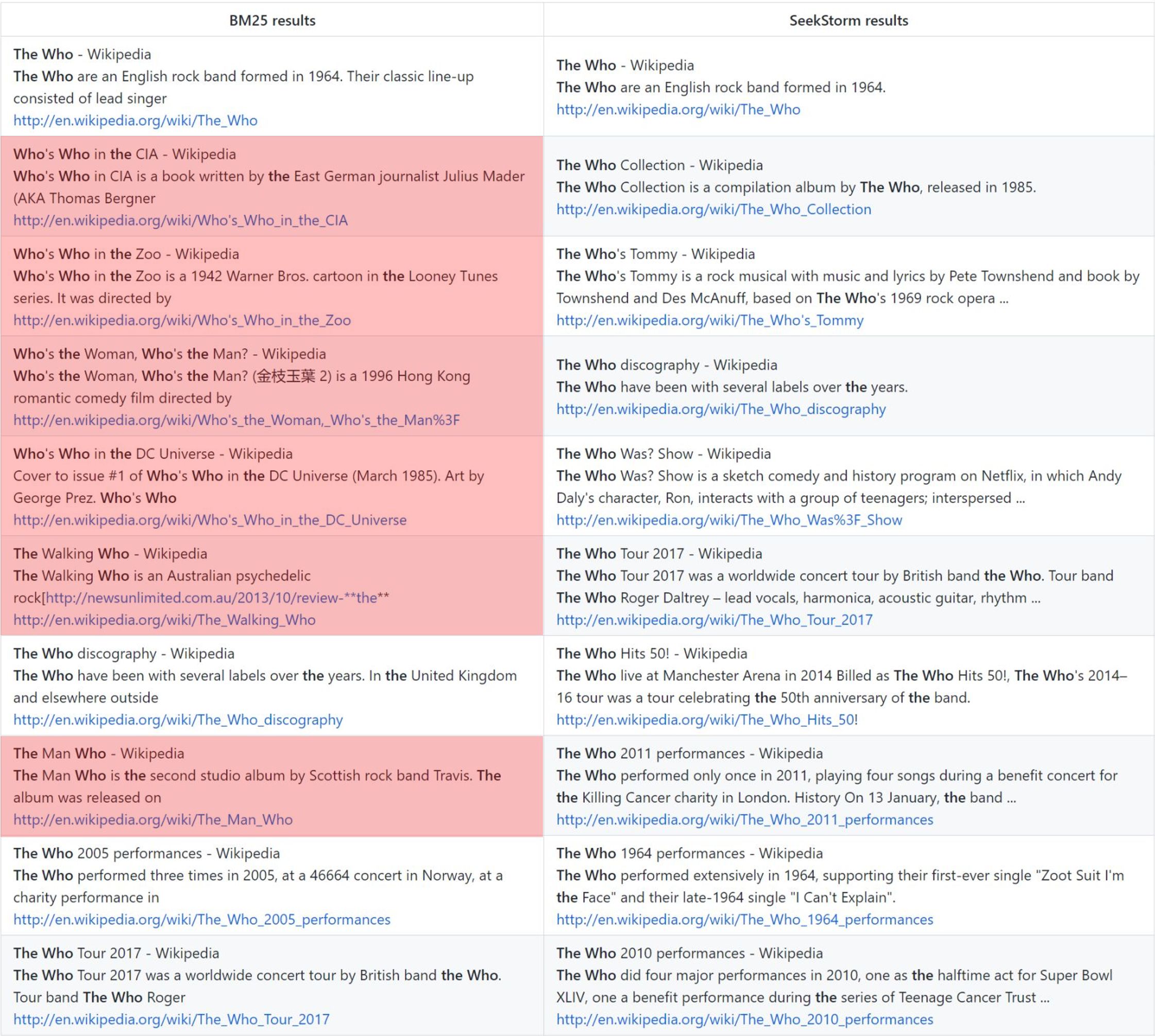

the who: vanilla BM25 ranking vs. SeekStorm proximity ranking

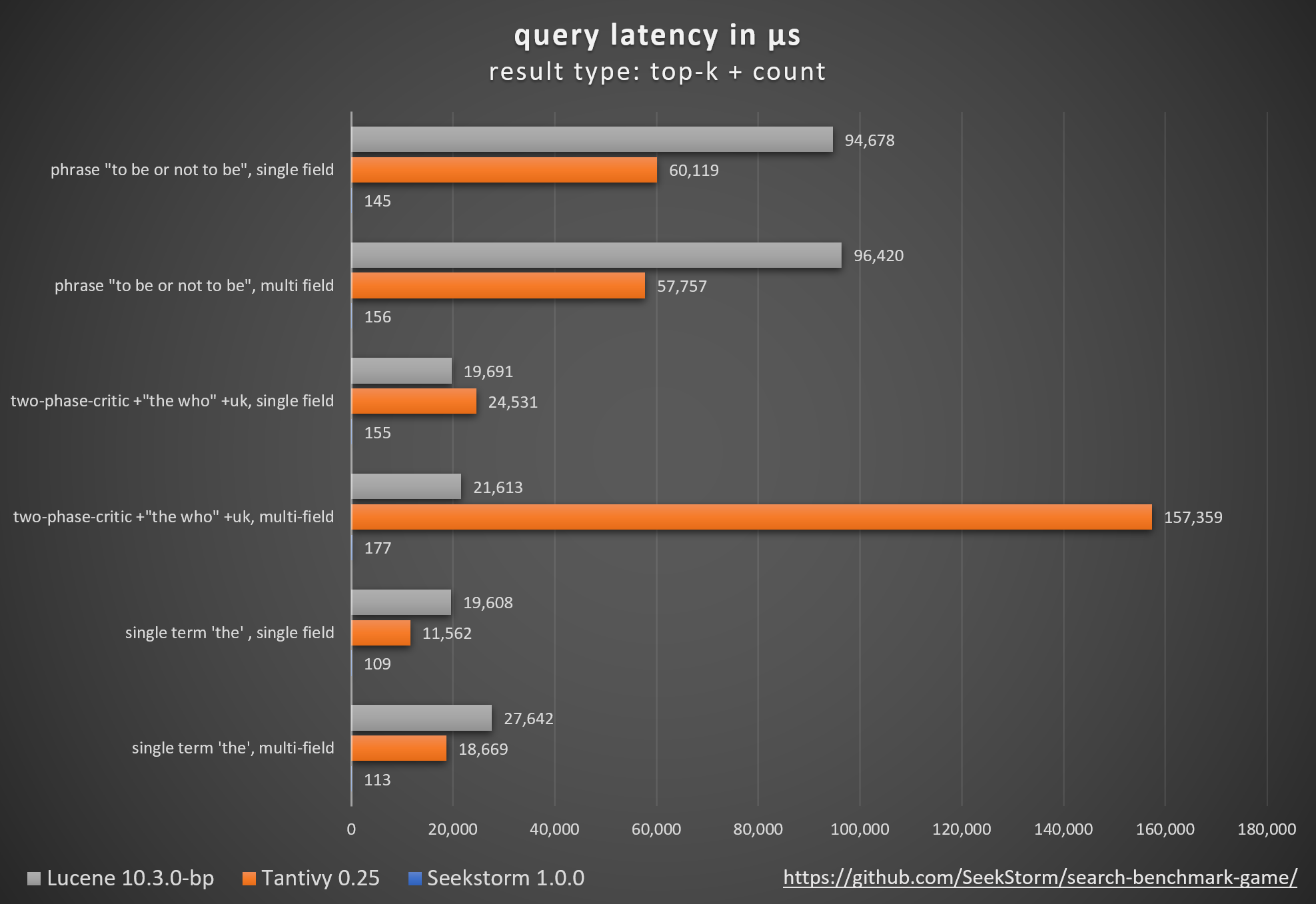

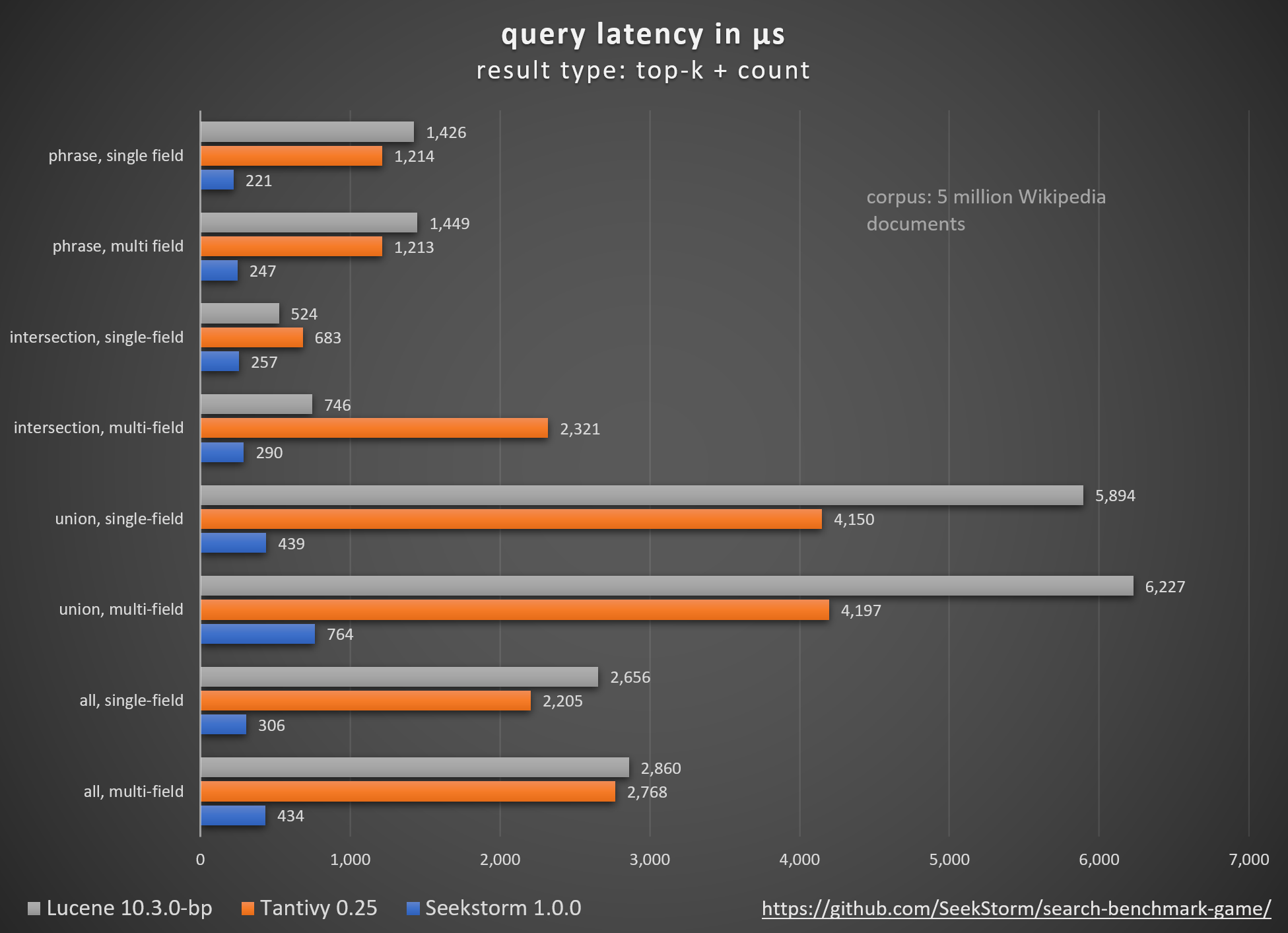

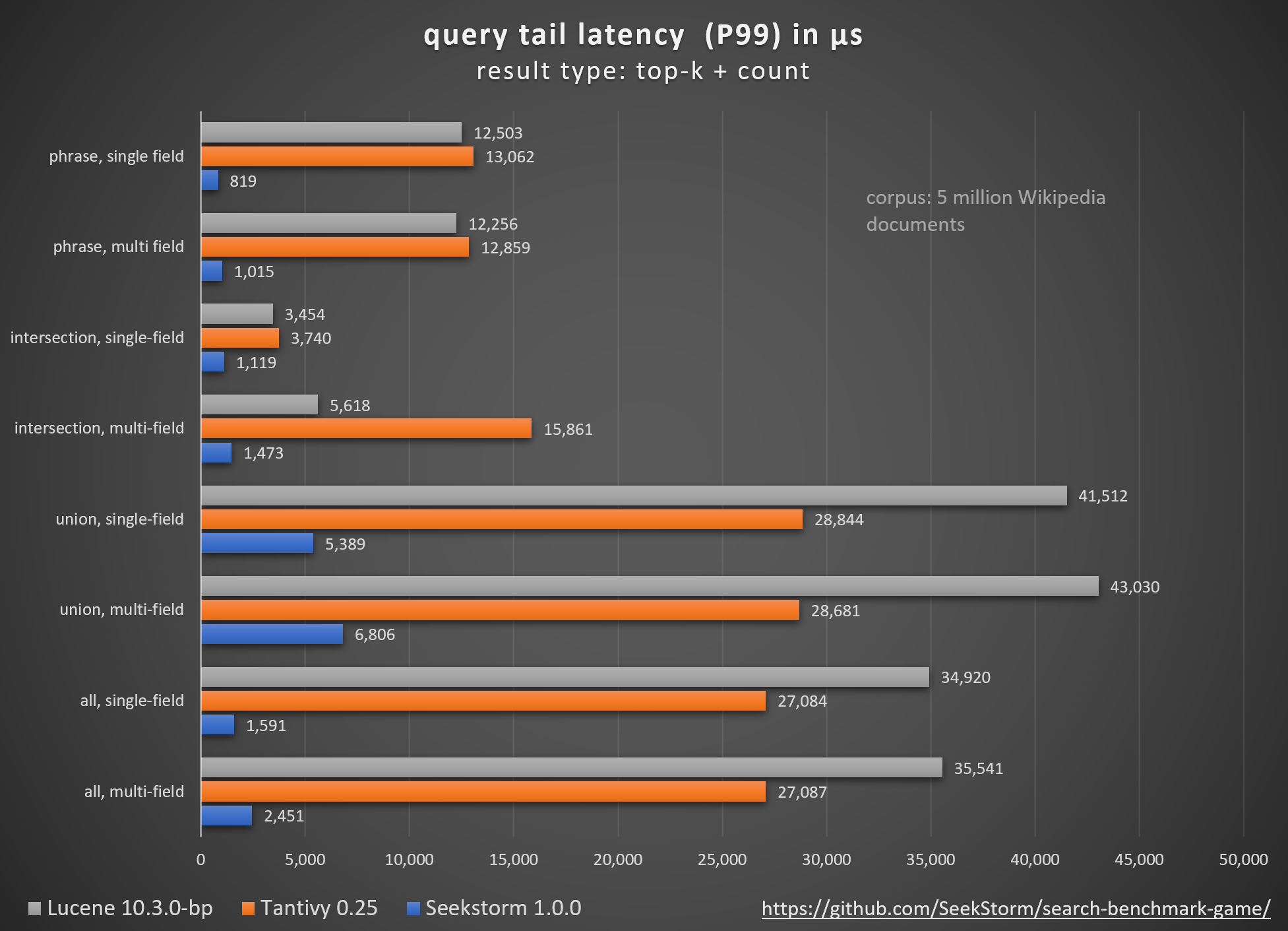

Methodology
Comparing different open-source search engine libraries (BM25 lexical search) using the open-source search_benchmark_game developed by Tantivy and Jason Wolfe.
Benefits
- using a proven open-source benchmark used by other search libraries for comparability
- adapters written mostly by search library authors themselves for maximum authenticity and faithfulness
- results can be replicated by everybody on their own infrastructure
- detailed results per query, per query type and per result type to investigate optimization potential
Detailed benchmark results https://seekstorm.github.io/search-benchmark-game/
Benchmark code repository https://github.com/SeekStorm/search-benchmark-game/
See our blog posts for more detailed information: SeekStorm is now Open Source and SeekStorm gets Faceted search, Geo proximity search, Result sorting

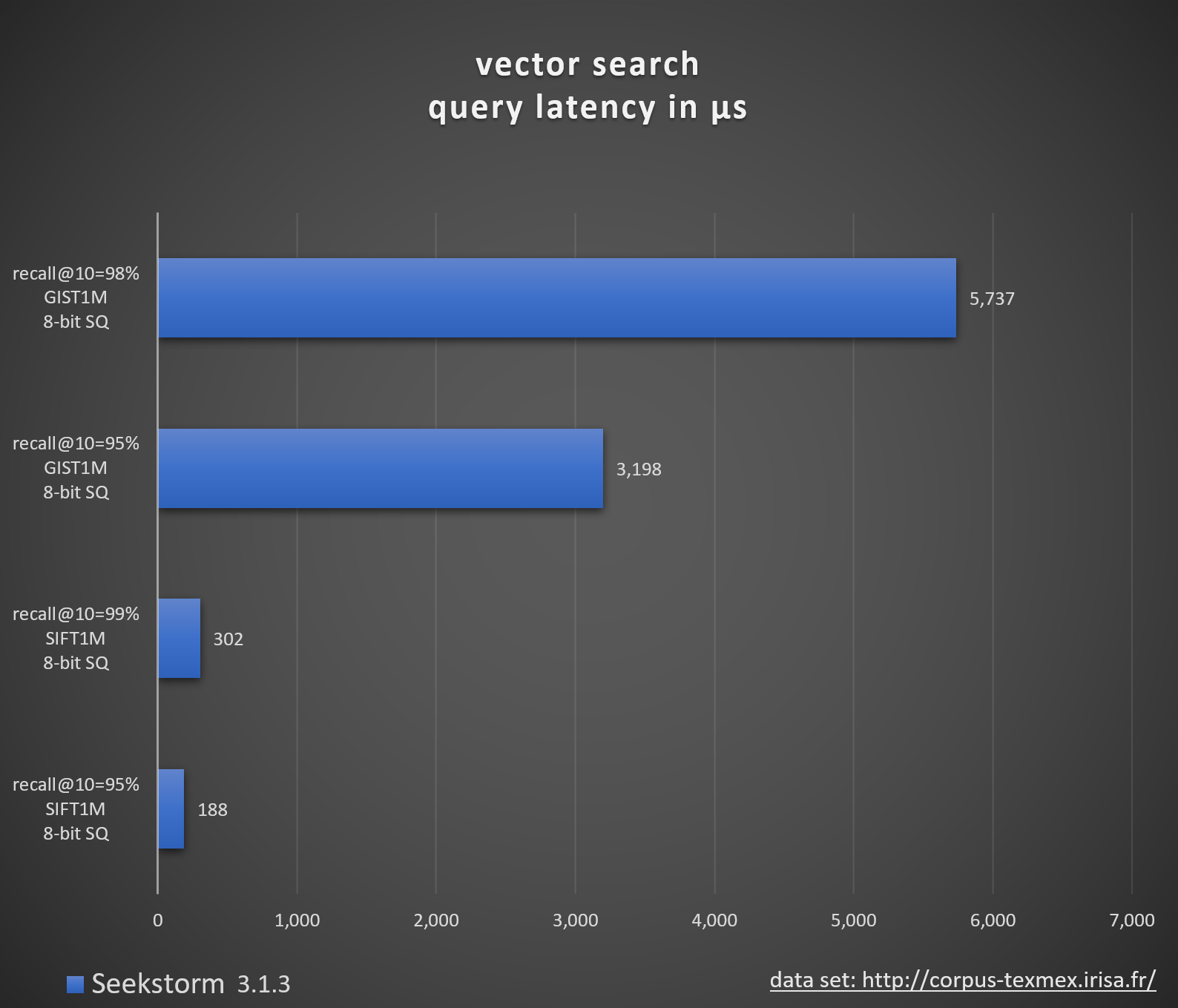

- 1 million vectors, 128 dimensions, f32 precision
- nprobe=16 -> recall@10=95%, average latency=188 microseconds
- nprobe=33 -> recall@10=99%, average latency=302 microseconds
There are benchmarks of vector search engines, and benchmarks of lexical search engines.
But seeing the latency of lexical search and vector search stacked up against each other might offer some unique insight.

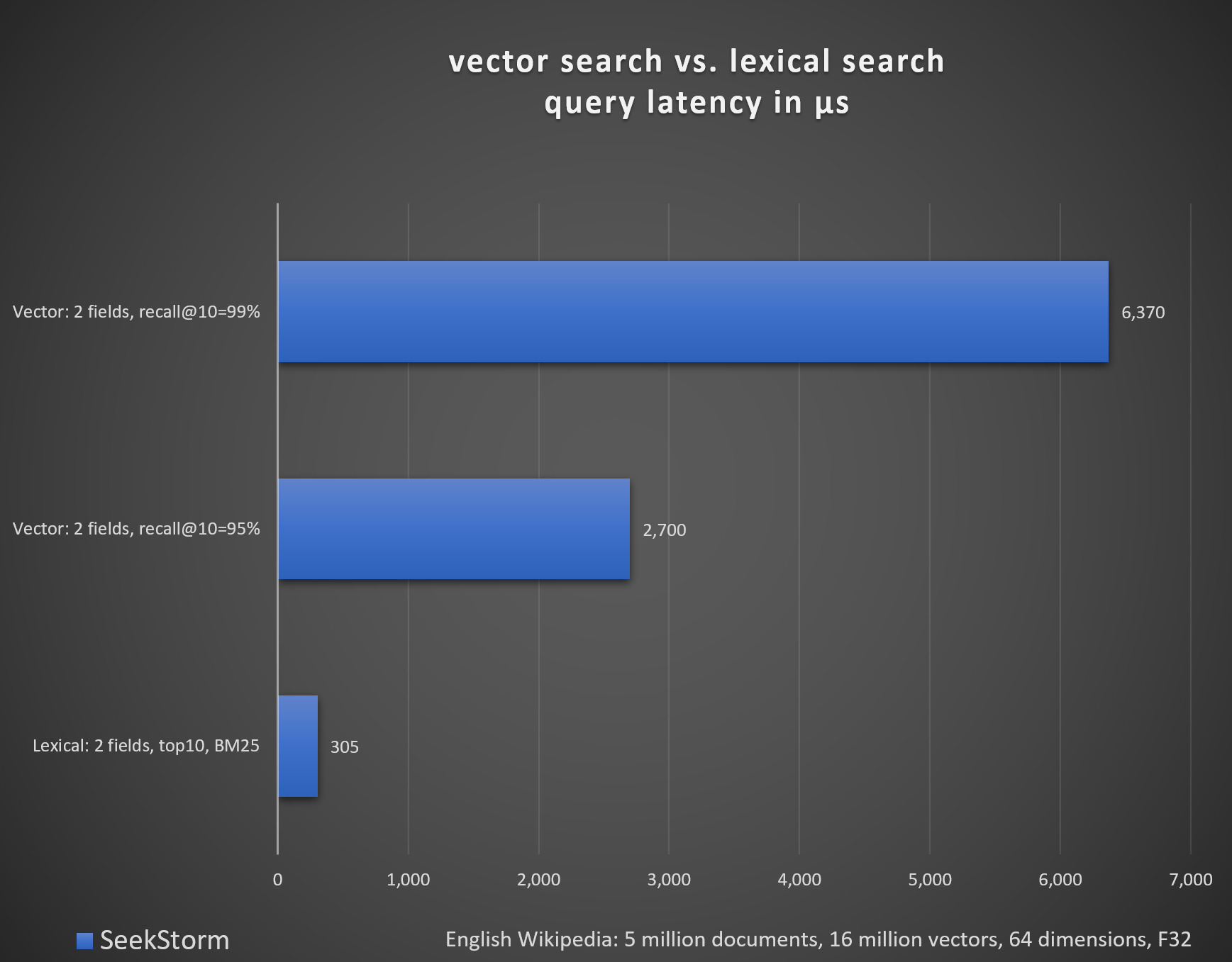

English Wikipedia: 5 million documents, 16 million vectors
Lexical: 2 fields, top10, BM25, average latency 305 microseconds
Vector: 2 fields, nprobe=68 -> recall@10=95%, average latency 2,700 microseconds
Vector: 2 fields, nprobe=200 -> recall@10=99%, average latency 6,370 microseconds
Using Model2Vec from MinishLab: PotionBase2M, chunks: 1000 byte
We are using the English Wikipedia data (5 million entries) and queries (300 intersection queries) derived from the AOL query dataset, both from Tantivy’s search-benchmark-game.
- Search speed might be good enough for a single search. Below 10 ms people can't tell latency anymore. Search latency might be small compared to internet network latency.
- But search engine performance still matters when used in a server or service for many concurrent users and requests for maximum scaling, throughput, low processor load, and cost.
- With performant search technology, you can serve many concurrent users at low latency with fewer servers, less cost, less energy consumption, and a lower carbon footprint.
- It also ensures low latency even for complex and challenging queries: instant search, fuzzy search, faceted search, and union/intersection/phrase of very frequent terms.
- Local search performance matters, e.g. when many local queries are spawned for reranking, fallback/refinement queries, fuzzy search, data mining or RAG befor the response is transferred back over the network.
- Besides average latencies, we also need to reduce tail latencies, which are often overlooked but can cause loss of customers, revenue, and a bad user experience.
- It is always advisable to engineer your search infrastructure with enough performance headroom to keep those tail latencies in check, even during periods of high concurrent load.
- Also, even if a human user might not notice the latency, it still might make a big difference in autonomous stock markets, defense applications or RAG which requires multiple queries.
Despite what the hype-cycles https://www.bitecode.dev/p/hype-cycles want you to believe, keyword search is not dead, as NoSQL wasn't the death of SQL.
You should maintain a toolbox, and choose the best tool for your task at hand. https://seekstorm.com/blog/vector-search-vs-keyword-search1/
Keyword search is just a filter for a set of documents, returning those where certain keywords occur in, usually combined with a ranking metric like BM25. A very basic and core functionality is very challenging to implement at scale with low latency. Because the functionality is so basic, there is an unlimited number of application fields. It is a component, to be used together with other components. There are use cases which can be solved better today with vector search and LLMs, but for many more keyword search is still the best solution. Keyword search is exact, lossless, and it is very fast, with better scaling, better latency, lower cost and energy consumption. Vector search works with semantic similarity, returning results within a given proximity and probability.
Because lexical search and vector search complement each other. We can significantly improve result quality with hybrid search by combining their strengths, while compensating their shortcomings.
- Lexical search is fast, precise, exact, and language independent - but unable to deal with meaning and semantic similarity.
- Vector search understands similarities - but is language dependent, can't deal with new or rare terms it wasn't trained for, it is slower and more expensive.
If you search for exact results like proper names, numbers, license plates, domain names, and phrases (e.g. plagiarism detection) then keyword search is your friend. Vector search, on the other hand, will bury the exact result that you are looking for among a myriad of results that are only somehow semantically related. At the same time, if you don’t know the exact terms, or you are interested in a broader topic, meaning or synonym, no matter what exact terms are used, then keyword search will fail you.
- works with text data only
- unable to capture context, meaning and semantic similarity
- low recall for semantic meaning
+ perfect recall for exact keyword match
+ perfect precision (for exact keyword match)
+ high query speed and throughput (for large document numbers)
+ high indexing speed (for large document numbers)
+ incremental indexing fully supported
+ smaller index size
+ lower infrastructure cost per document and per query, lower energy consumption
+ good scalability (for large document numbers)
+ perfect for exact keyword and phrase search, no false positives
+ perfect explainability
+ efficient and lossless for exact keyword and phrase search
+ works with new vocabulary out of the box
+ works with any language out of the box
+ works perfect with long-tail vocabulary out of the box
+ works perfect with any rare language or domain-specific vocabulary out of the box
+ RAG (Retrieval-augmented generation) based on keyword search offers unrestricted real-time capabilities.Vector search is perfect if you don’t know the exact query terms, or you are interested in a broader topic, meaning or synonym, no matter what exact query terms are used. But if you are looking for exact terms, e.g. proper names, numbers, license plates, domain names, and phrases (e.g. plagiarism detection) then you should always use keyword search. Vector search will instead bury the exact result that you are looking for among a myriad of results that are only somehow related. It has a good recall, but low precision, and higher latency. It is prone to false positives, e.g., in plagiarism detection as exact words and word order get lost.
Vector search enables you to search not only for similar text, but for everything that can be transformed into a vector: text, images (face recognition, fingerprints), audio, enabling you to do magic things like "queen - woman + man = king."
+ works with any data that can be transformed to a vector: text, image, audio ...
+ able to capture context, meaning, and semantic similarity
+ high recall for semantic meaning (90%)
- lower recall for exact keyword match (for Approximate Similarity Search)
- lower precision (for exact keyword match)
- lower query speed and throughput (for large document numbers)
- lower indexing speed (for large document numbers)
- incremental indexing is expensive and requires rebuilding the entire index periodically, which is extremely time-consuming and resource intensive.
- larger index size
- higher infrastructure cost per document and per query, higher energy consumption
- limited scalability (for large document numbers)
- unsuitable for exact keyword and phrase search, many false positives
- low explainability makes it difficult to spot manipulations, bias and root cause of retrieval/ranking problems
- inefficient and lossy for exact keyword and phrase search
- Additional effort and cost to create embeddings and keep them updated for every language and domain. Even if the number of indexed documents is small, the embeddings have to created from a large corpus before nevertheless.
- Limited real-time capability due to limited recency of embeddings
- works only with vocabulary known at the time of embedding creation
- works only with the languages of the corpus from which the embeddings have been derived
- works only with long-tail vocabulary that was sufficiently represented in the corpus from which the embeddings have been derived
- works only with rare language or domain-specific vocabulary that was sufficiently represented in the corpus from which the embeddings have been derived
- RAG (Retrieval-augmented generation) based on vector search offers only limited real-time capabilities, as it can't process new vocabulary that arrived after the embedding generationVector search is not a replacement for keyword search, but a complementary addition - best to be used within a hybrid solution where the strengths of both approaches are combined. Keyword search is not outdated, but time-proven.
We have (partially) ported the SeekStorm codebase from C# to Rust
- Factor 2..4x performance gain vs. C# (latency and throughput)
- No slow first run (no cold start costs due to just-in-time compilation)
- Stable latencies (no garbage collection delays)
- Less memory consumption (no ramping up until the next garbage collection)
- No framework dependencies (CLR or JVM virtual machines)
- Ahead-of-time instead of just-in-time compilation
- Memory safe language https://www.whitehouse.gov/oncd/briefing-room/2024/02/26/press-release-technical-report/
Rust is great for performance-critical applications 🚀 that deal with big data and/or many concurrent users. Fast algorithms will shine even more with a performance-conscious programming language 🙂
see ARCHITECTURE.md
cargo build --release
⚠ WARNING: make sure to set the MASTER_KEY_SECRET environment variable to a secret, otherwise your generated API keys will be compromised.
Build documentation
cargo doc --no-deps
Access documentation locally
SeekStorm\target\doc\seekstorm\index.html
SeekStorm\target\doc\seekstorm_server\index.html
zh(default): Enables TokenizerType.UnicodeAlphanumericZH that implements Chinese word segmentation to segment continuous Chinese text into tokens for indexing and search.pdf(default): Enables PDF ingestion viapdfiumcrate.vb: vb (verbose) adds additional properties to theResultstruct:- field_id
- chunk_id
- level_id
- shard_id
- cluster_id
- cluster_score
- vector_score
- lexical_score
- source: ResultSource (Lexical/Vector/Hybrid)
You can disable the SeekStorm default features by using default-features = false in the cargo.toml of your application.
This can be useful to reduce the size of your application or if there are dependency version conflicts.
[dependencies]
seekstorm = { version = "0.12.19", default-features = false }
Add required crates to your project
cargo add seekstorm
cargo add tokio
cargo add serde_json
Use an asynchronous Rust runtime
use std::error::Error;
#[tokio::main]
async fn main() -> Result<(), Box<dyn Error + Send + Sync>> {
// your SeekStorm code here
Ok(())
}create schema (from JSON)
use seekstorm::index::SchemaField;
let schema_json = r#"
[{"field":"title","field_type":"Text","store":false,"index_lexical":false,"dictionary_source":true,"completion_source":true},
{"field":"body","field_type":"Text","store":true,"index_lexical":true},
{"field":"url","field_type":"Text","store":false,"index_lexical":false}]"#;
let schema:Vec<SchemaField>=serde_json::from_str(schema_json).unwrap();create schema (from SchemaField)
use seekstorm::index::{SchemaField,FieldType};
let schema= vec![
SchemaField::new("title".to_owned(), false, false,false, FieldType::Text, false,false, 1.0,true,true),
SchemaField::new("body".to_owned(),true,true,false,FieldType::Text,false,true,1.0,false,false),
SchemaField::new("url".to_owned(), false, false,false, FieldType::Text,false,false,1.0,false,false),
];create index
# tokio_test::block_on(async {
use std::path::Path;
use seekstorm::index::{IndexMetaObject, Clustering, LexicalSimilarity,TokenizerType,StopwordType,FrequentwordType,AccessType,StemmerType,NgramSet,SchemaField,FieldType,SpellingCorrection,QueryCompletion,DocumentCompression,create_index};
use seekstorm::vector::Inference;
use seekstorm::vector_similarity::VectorSimilarity;
let index_path=Path::new("C:/index/");
let schema= vec![
SchemaField::new("title".to_owned(), false, false,false, FieldType::Text, false,false, 1.0,true,true),
SchemaField::new("body".to_owned(),true,true,false,FieldType::Text,false,true,1.0,false,false),
SchemaField::new("url".to_owned(), false, false, false,FieldType::Text,false,false,1.0,false,false),
];
let meta = IndexMetaObject {
id: 0,
name: "test_index".into(),
lexical_similarity: LexicalSimilarity::Bm25f,
tokenizer: TokenizerType::UnicodeAlphanumeric,
stemmer: StemmerType::None,
stop_words: StopwordType::None,
frequent_words: FrequentwordType::English,
ngram_indexing: NgramSet::NgramFF as u8,
document_compression: DocumentCompression::Snappy,
access_type: AccessType::Mmap,
spelling_correction: Some(SpellingCorrection { max_dictionary_edit_distance: 1, term_length_threshold: Some([2,8].into()),count_threshold: 20,max_dictionary_entries:500_000 }),
query_completion: Some(QueryCompletion{max_completion_entries:10_000_000}),
clustering: Clustering::None,
inference: Inference::None,
};
let segment_number_bits1=11;
let index_arc=create_index(index_path,meta,&schema,&Vec::new(),segment_number_bits1,false,None).await.unwrap();
# });open index (alternatively to create index)
# tokio_test::block_on(async {
use std::path::Path;
use seekstorm::index::open_index;
let index_path=Path::new("C:/index/");
let mut index_arc=open_index(index_path,false).await.unwrap();
# });index documents (from JSON)
# tokio_test::block_on(async {
use std::path::Path;
use seekstorm::index::{open_index, IndexDocuments};
let index_path=Path::new("C:/index/");
let mut index_arc=open_index(index_path,false).await.unwrap();
let documents_json = r#"
[{"title":"title1 test","body":"body1","url":"url1"},
{"title":"title2","body":"body2 test","url":"url2"},
{"title":"title3 test","body":"body3 test","url":"url3"}]"#;
let documents_vec=serde_json::from_str(documents_json).unwrap();
index_arc.index_documents(documents_vec).await;
# });index document (from Document)
# tokio_test::block_on(async {
use seekstorm::index::{FileType, Document, IndexDocument, open_index};
use std::path::Path;
use serde_json::Value;
let index_path=Path::new("C:/index/");
let mut index_arc=open_index(index_path,false).await.unwrap();
let document= Document::from([
("title".to_string(), Value::String("title4 test".to_string())),
("body".to_string(), Value::String("body4 test".to_string())),
("url".to_string(), Value::String("url4".to_string())),
]);
index_arc.index_document(document,FileType::None).await;
# });commit documents
# tokio_test::block_on(async {
use seekstorm::commit::Commit;
use seekstorm::index::open_index;
use std::path::Path;
let index_path=Path::new("C:/index/");
let mut index_arc=open_index(index_path,false).await.unwrap();
index_arc.commit().await;
# });search index
# tokio_test::block_on(async {
use seekstorm::search::{Search, SearchMode, QueryType, ResultType, QueryRewriting};
use seekstorm::index::open_index;
use std::path::Path;
let index_path=Path::new("C:/index/");
let mut index_arc=open_index(index_path,false).await.unwrap();
let query="test".to_string();
let query_vector=None;
let search_mode=SearchMode::Lexical;
let enable_empty_query=false;
let offset=0;
let length=10;
let query_type=QueryType::Intersection;
let result_type=ResultType::TopkCount;
let include_uncommitted=false;
let field_filter=Vec::new();
let query_facets=Vec::new();
let facet_filter=Vec::new();
let result_sort=Vec::new();
let query_rewriting= QueryRewriting::SearchRewrite { distance: 1, term_length_threshold: Some([2,8].into()), correct:Some(2),complete: Some(3), length: Some(5) };
let result_object = index_arc.search(query, query_vector, query_type, search_mode, enable_empty_query, offset, length, result_type,include_uncommitted,field_filter,query_facets,facet_filter,result_sort,query_rewriting).await;
// ### display results
use seekstorm::highlighter::{Highlight, highlighter};
use std::collections::HashSet;
let highlights:Vec<Highlight>= vec![
Highlight {
field: "body
