🧠 Multi-Agent Orchestration Framework

A declarative LangGraph-based framework for building multi-agent workflows

A plug-and-play multi-agent orchestration framework for developers building domain-specific AI systems with LangGraph — composable, declarative, and production-ready.

langgraph multi-agent llm ai-framework fastapi python orchestration yaml-config redis azure-openai agent-framework langchain workflow-engine conversational-ai state-management declarative modular production-ready

Multi-Agent Orchestration Framework
is a developer-oriented orchestration framework for building multi-agent, multi-domain AI systems powered by LangGraph.

It provides a structured, extensible runtime for combining:

• 🧠 Agents (decision-makers powered by LLMs)
• 🔗 Nodes (graph-executable logic units)
• 🧰 Tools (external integrations)
• 💾 Memory (Redis-based short-term state)
• ⚙️ Providers (Azure OpenAI, etc.)

Together, they form intelligent conversational workflows defined declaratively via YAML —
so developers can rapidly compose and extend domain-specific AI applications without reimplementing orchestration logic.

Build modular, reasoning-driven AI systems — without writing orchestration code.

+-----------------------------------------------------------+
|              🧠 Multi-Agent Orchestrator                   |
|-----------------------------------------------------------|
|  AgentRouter  |  LangGraphBuilder  |  StateManager        |
+-----------------------------------------------------------+
|             YAML-defined Domain Workflows                 |
|-----------------------------------------------------------|
|  Nodes → Agents → Tools → Providers → LLMs                |
|-----------------------------------------------------------|
|  Redis Memory  |  FastAPI API  |  Extensible Providers    |
+-----------------------------------------------------------+

This structure allows you to design your own domain workflows
(e.g., school, finance, support) by simply defining intents and linking nodes/agents in YAML.

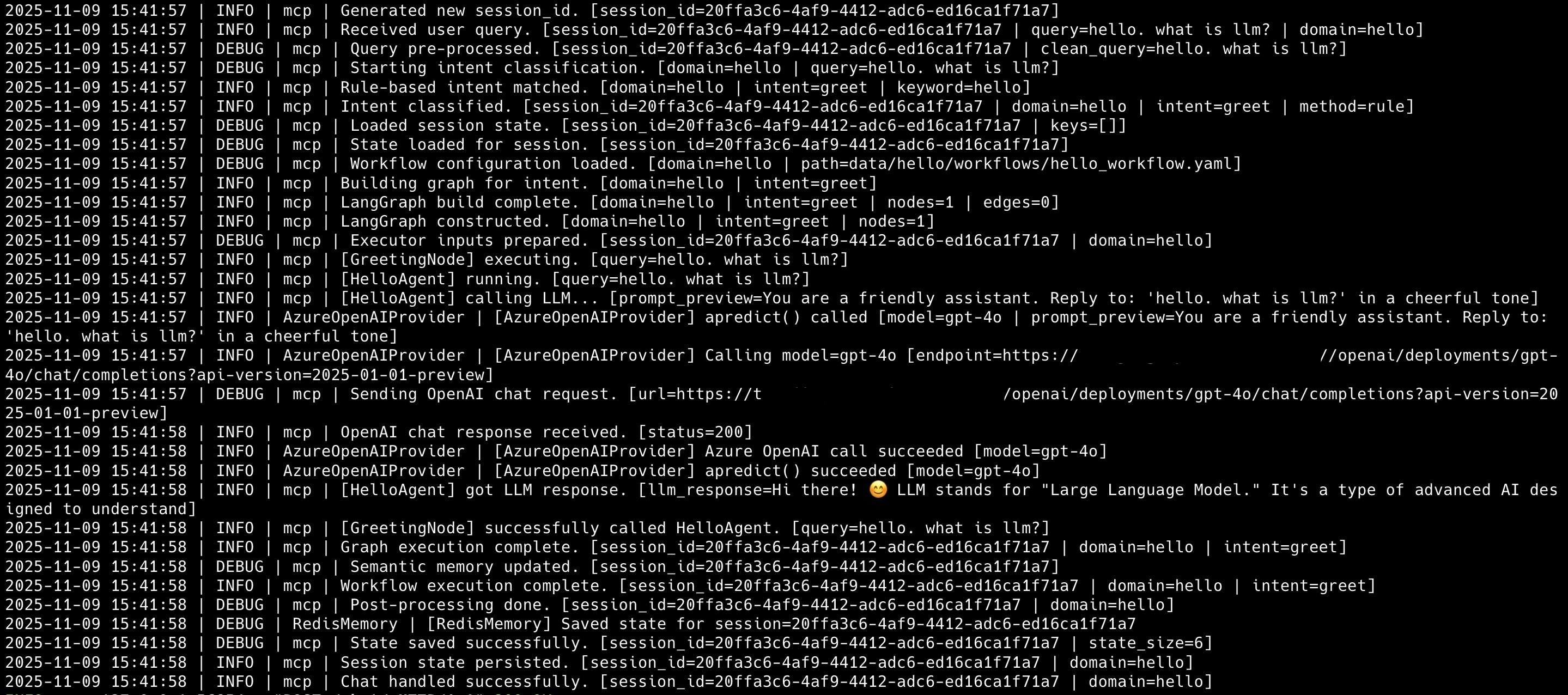

Example: The framework orchestrating a full reasoning flow — from intent classification and LangGraph construction to AzureOpenAI inference and Redis state persistence.

git clone https://github.com/yx-fan/agent-flow-framework.git
cd agent-flow-framework
pip install -r requirements.txt
cp .env.example .env

Then edit .env to configure Redis and Azure OpenAI (or your preferred provider if you update related code).

uvicorn main:app --host 0.0.0.0 --port 8001 --reload

Access the API at
👉 http://127.0.0.1:8001/chat

📚 Interactive API Documentation:

• Swagger UI: http://127.0.0.1:8001/docs
• ReDoc: http://127.0.0.1:8001/redoc

curl -X POST "http://127.0.0.1:8001/chat"
-H "Content-Type: application/json"
-d '{"query": "hello. what is llm?"}'

In the body, you can also specify a domain and additional session_id if needed:

-d '{"query": "hello. what is llm?", "domain": "hello", "session_id": 20ffa3c6-4af9-4412-adc6-ed16ca1f71a7"}'

{
    "session_id": "20ffa3c6-4af9-4412-adc6-ed16ca1f71a7",
    "query": "hello",
    "domain": "hello",
    "result": {
        "domain": "hello",
        "intent": "greet",
        "result": {
            "query": "hello. what is llm?",
            "domain": "hello",
            "greeting": "Hello there 👋! Let me think about that for you...",
            "agent_reply": "👋 Hello! You said: 'hello. what is llm?'.\nLLM says: Hi there! 😊 LLM stands for \"Large Language Model.\" It's a type of advanced AI designed to understand and generate human-like text. Think of it as a virtual assistant or brainy language buddy that can help with everything from answering questions to creating stories! Did you want to know more about it? 😄",
            "timestamp": "2025-11-09T20:41:57.600949",
            "llm_used": true
        }
    }
}

✅ The framework dynamically loads the hello domain workflow →
executes GreetingNode → calls HelloAgent → routes through AzureOpenAIProvider.

data/hello/intents.yaml

intents:
  greet:
    description: Simple greetings and small talk.
    keywords: ["hello", "hi", "hey", "morning"]

data/hello/workflows/hello_workflow.yaml

greet:
  nodes:
    - name: Greeting
      type: node
      class: GreetingNode
      agent: HelloAgent
  edges: []

This modular structure lets you add new domains
by simply creating a folder like data/school/ or data/finance/
and defining custom intents.yaml + workflow.yaml files.

agent-flow-framework/ ├── core/ # Base abstractions & registry ├── orchestrator/ # LangGraph builder & orchestration logic ├── nodes/ # Domain-specific nodes ├── agents/ # Domain-specific agents ├── tools/ # External API / DB / function tools ├── data/ # Domain intents & workflows (YAML) ├── providers/ # LLM providers (AzureOpenAI, etc.) ├── memory/ # Memory interface & Redis implementation ├── api/ # FastAPI endpoints ├── main.py # FastAPI entrypoint └── requirements.txt

Multi-Agent Orchestration Framework consists of three layers — from low-level abstraction to runtime orchestration — each clearly separated and independently extensible.

Base Abstractions:
base_agent.py, base_node.py, base_tool.py
Define a consistent lifecycle (pre_* → execute → post_*) and encapsulate error handling across all components.

Configuration & Logging:
config.py loads environment variables and system settings;
logger.py provides structured, contextual logging with traceable IDs.

Registry:
registry.py enables dynamic registration and runtime discovery of nodes, agents, and tools — supporting modular plug-and-play extensibility.

Memory Interface:
memory_interface.py unifies short-term (e.g., Redis) and long-term (e.g., vector store) memory operations through a consistent interface.

Exception Model:
exceptions.py defines standardized errors (AgentError, NodeError, …) to ensure predictable error propagation and graceful recovery.

Responsibilities:
Drives runtime orchestration, workflow construction, and multi-domain coordination.

• LangGraphBuilder: Parses YAML definitions and constructs executable LangGraph workflows.
• AgentRouter: Selects the appropriate agent based on intent recognition or contextual routing.
• StateManager: Manages conversation state, context persistence, and execution cache.
• OrchestratorImpl: The central execution engine — handles unified entrypoints, async execution, exception flow, and callback control.
• ReflectionNode / FeedbackManager: Support reflective reasoning, evaluation, and multi-agent feedback loops.

Node:
Encapsulates deterministic logic or structured data transformation steps.

Agent:
Handles reasoning and decision-making using LLMs, capable of invoking nodes and tools dynamically.

Tool:
Bridges the system to the external world (APIs, databases, file systems), designed to be declarative, stateless, and reusable.

You can easily extend the framework by adding:

• a new domain (e.g., data/finance/)
• a new agent that inherits from BaseAgent
• or a new tool that implements BaseTool.

Then just register it in your YAML workflow — no orchestration code changes required.

Contributions, issues, and feature requests are welcome!
Feel free to open a Pull Request or start a discussion.

Please read our Contributing Guide for details on our code of conduct and the process for submitting pull requests.

If you find this framework useful, please give it a ⭐️ star — it helps others discover the project and keeps development active!

MIT License © 2025 Yuxin Fan
