PyTorch Template

One YAML. One command. Full research pipeline.

Config-driven experiment pipeline with dual logging, real-time TUI monitor, and AI agent skills.

Why This Template?

Problem	Solution
Config errors discovered after hours of GPU time	`preflight` runs 1-batch forward+backward in seconds
Rewriting training loops for every project	Callback-based loop — extend without modifying the core
"Which logging do I use?"	Choose `wandb` or `tui` per config — CSV always saved
Can't see training progress without W&B	Rust TUI monitor renders loss curves in real-time from CSV
Manual hyperparameter tuning	Optuna + PFL pruner prunes unpromising trials early
HPO is a black box after it finishes	`hpo-report` shows parameter importance and boundary warnings
Silent overfitting or exploding gradients	Auto-detected by callbacks, logged to W&B/TUI/CSV
"It worked on my machine"	Full provenance: Python / PyTorch / CUDA / GPU / git hash

Quick Start

git clone https://github.com/Axect/pytorch_template.git && cd pytorch_template

# Install (uv recommended)
uv venv && source .venv/bin/activate
uv pip install -U torch wandb rich beaupy numpy optuna matplotlib \
  scienceplots typer tqdm pyyaml pytorch-optimizer pytorch-scheduler

# Check your environment
python -m cli doctor

# Validate → Preview → Train → Analyze
python -m cli preflight configs/run_template.yaml
python -m cli preview configs/run_template.yaml
python -m cli train configs/run_template.yaml --device cuda:0
python -m cli analyze

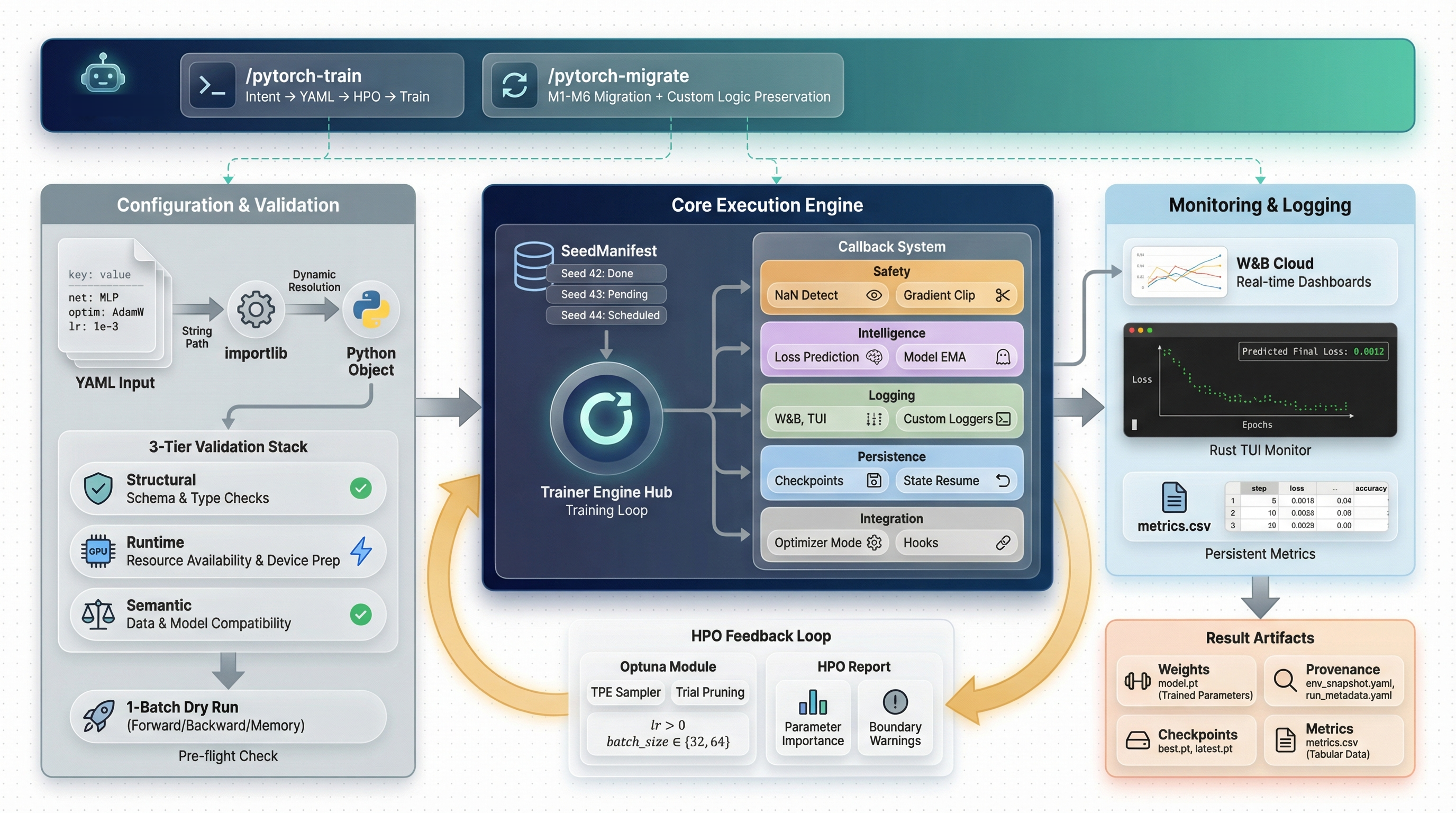

How It Works

Everything is YAML

project: MyProject
device: cuda:0
logging: tui                                           # 'wandb' or 'tui'
net: model.MLP                                         # any importlib-resolvable path
optimizer: pytorch_optimizer.SPlus
scheduler: pytorch_scheduler.ExpHyperbolicLRScheduler
criterion: torch.nn.MSELoss
data: recipes.regression.data.load_data                # plug in any load_data() here
seeds: [89, 231, 928, 814, 269]                        # multi-seed reproducibility
epochs: 150
batch_size: 256
net_config:
  nodes: 64
  layers: 4
optimizer_config:
  lr: 1.e-1
scheduler_config:
  total_steps: 150
  upper_bound: 300
  min_lr: 1.e-6

All module paths are resolved via importlib. Three layers of validation run before a single GPU cycle is consumed:

Structural — format checks, non-empty seeds, positive epochs/batch_size
Runtime — CUDA availability, all import paths resolve
Semantic — upper_bound >= total_steps, lr positivity, unique seeds

Dual Logging

The logging field controls where metrics are displayed:

`logging:`	Display	W&B	CSV	latest_model.pt
`wandb`	W&B dashboard + periodic console print	Yes	Always	Always
`tui`	Every-epoch terminal output (agent-friendly)	No	Always	Always

CSV and latest model are always saved, regardless of logging mode. This means:

Agents can read metrics.csv and latest_model.pt mid-training
The TUI monitor can render loss curves from any run
No data is lost even without W&B

Callback Architecture

The training loop emits events; behaviors are independent, priority-ordered callbacks:

Callback	Priority	Purpose
`NaNDetectionCallback`	5	Detect NaN loss, signal stop
`OptimizerModeCallback`	10	SPlus / ScheduleFree train/eval toggle
`GradientMonitorCallback`	12	Track gradient norms, warn on explosion
`LossPredictionCallback`	70	Predict final loss via shifted exponential fit
`OverfitDetectionCallback`	75	Detect train/val divergence
`WandbLoggingCallback`	80	Log to W&B (when `logging: wandb`)
`TUILoggingCallback`	80	Terminal logging (when `logging: tui`)
`CSVLoggingCallback`	81	Write `metrics.csv` every epoch (always active)
`PrunerCallback`	85	Report to Optuna pruner
`EarlyStoppingCallback`	90	Patience-based stopping
`CheckpointCallback`	95	Periodic + best-model checkpoints
`LatestModelCallback`	96	Save `latest_model.pt` every epoch (always active)

Add your own by subclassing TrainingCallback — zero changes to the training loop:

class GradientClipCallback(TrainingCallback):
    priority = 15  # runs right after GradientMonitorCallback

    def on_train_step_end(self, trainer, **kwargs):
        torch.nn.utils.clip_grad_norm_(trainer.model.parameters(), 1.0)

Loss Prediction

The LossPredictionCallback fits a shifted exponential decay model to the validation loss history:

L(t) = a · exp(-b · t) + c

The predicted final loss is c (the asymptotic floor). The fitting uses EMA-smoothed data with a 3-point anchor method, which:

Works with positive and negative losses
Handles plateau, oscillation, and non-convergent patterns
Returns raw loss values (same units as input)

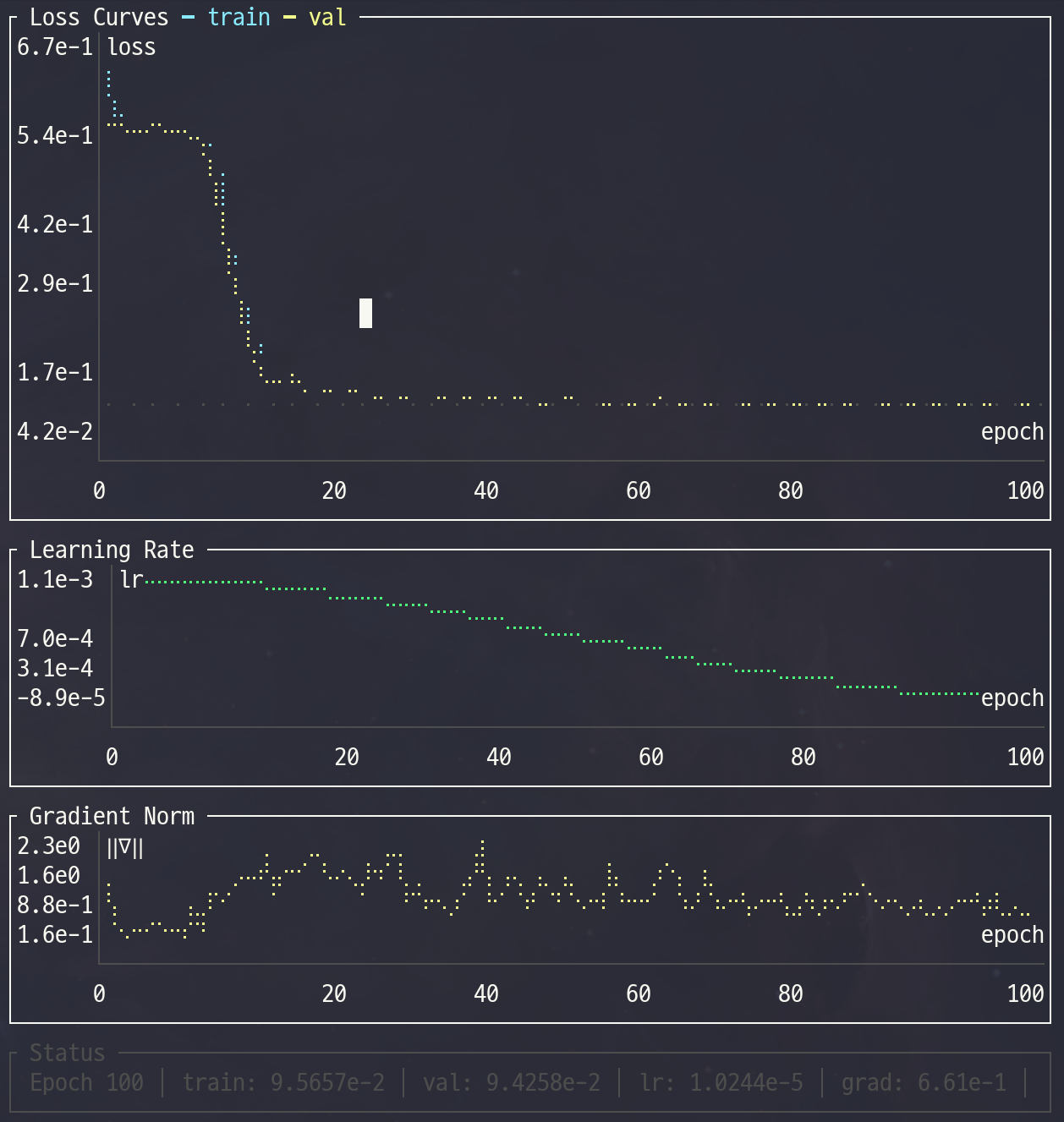

Real-time TUI Monitor

A Rust-based terminal UI reads metrics.csv and renders live charts:

Features:

Loss curves (train/val) with Braille sub-pixel rendering
Learning rate schedule and gradient norm history
Predicted final loss overlay
Log scale toggle: log₁₀ for positive data, symlog₁₀ for mixed-sign
Status bar with current metrics and time since last update
1.2 MB static binary — no runtime dependencies

Usage:

# Build once (requires Rust toolchain)
cd tools/monitor && cargo build --release && cd ../..

# Run alongside training (in a separate terminal)
python -m cli monitor                                      # auto-detect latest run
python -m cli monitor runs/MyProject/group/42/metrics.csv  # specific file

# Or run the binary directly
./tools/monitor/target/release/training-monitor runs/MyProject/group/42/

Key	Action
`q` / `Esc`	Quit
`l`	Toggle log scale
`←` / `→`	Switch metric tabs (when custom metrics are logged)

HPO Monitoring

The same binary supports real-time HPO monitoring by reading the Optuna SQLite database:

python -m cli monitor --hpo   # auto-detects .db file

Four tabs: Overview (trial scatter + best convergence), Parameters (per-parameter scatter grid), Best Trial (training curves of current best), Trials (interactive table — select a row and press Enter to view its curves).

Key	Action
`+` / `-`	Y-axis zoom in/out
`↑` / `↓`	Y-axis pan (or row selection in Trials tab)
`r`	Reset Y axis to auto
`x`	Toggle X-axis log (Parameters tab)

See Chapter 4: HPO — Monitoring in Real-time for details.

Pre-flight Check

Catches problems in seconds — not after hours of GPU time:

                         Pre-flight Check
┌─────────────────────────┬────────┬──────────────────────────────────┐
│ Check                   │ Status │ Detail                           │
├─────────────────────────┼────────┼──────────────────────────────────┤
│ Import paths & device   │  PASS  │                                  │
│ Semantic validation     │  PASS  │                                  │
│ Object instantiation    │  PASS  │                                  │
│ Data loading            │  PASS  │ train=8000, val=2000             │
│ Forward pass            │  PASS  │ output=(256, 1), loss=0.512341   │
│ Shape check             │  PASS  │                                  │
│ Gradient check          │  PASS  │ grad norm=0.034821               │
│ Optimizer step          │  PASS  │                                  │
│ Scheduler step          │  PASS  │                                  │
│ GPU memory              │  PASS  │ peak=42.3 MB (1 batch)           │
└─────────────────────────┴────────┴──────────────────────────────────┘
All pre-flight checks passed.

Use --json for machine-readable output (used by AI agent skills for automated parsing).

HPO with Optuna

# Run HPO
python -m cli train configs/my_run.yaml --optimize-config configs/my_opt.yaml

# Analyze results
python -m cli hpo-report --opt-config configs/my_opt.yaml

The custom PFL (Predicted Final Loss) pruner fits shifted exponential decay to early loss history and prunes trials before they waste GPU time.

Study: my_study (MyProject_Opt.db)
Trials: 50 total, 38 completed, 11 pruned, 1 failed

Best Trial #23
  Value: 0.003241

         Parameter Importance
┌─────────────────────────┬──────────────────────────────────────┐
│ Parameter               │ Importance                           │
├─────────────────────────┼──────────────────────────────────────┤
│ optimizer_config_lr     │ 0.8741 ██████████████████████████    │
│ net_config_layers       │ 0.1259 ████                          │
└─────────────────────────┴──────────────────────────────────────┘

Boundary Warnings:
  optimizer_config_lr=0.231 at UPPER boundary [1e-3, 1e+0]

A boundary warning means the optimizer would benefit from a wider search range.

AI-Assisted Training (Agent Skills)

This template ships with built-in agent skills that guide the full experiment lifecycle across Claude Code, Codex, and Forge:

You: "Set up HPO for my FluxNet model, version 0.3"

Agent: Creates configs/SolarFlux_v0.3/fluxnet_run.yaml
       Creates configs/SolarFlux_v0.3/fluxnet_opt.yaml
       Runs preflight to catch any config issues
       Launches HPO with SPlus + ExpHyperbolicLR defaults
       Runs hpo-report to analyze results
       Extracts best params → fluxnet_best.yaml
       Launches final multi-seed training

The skill encodes domain knowledge: correct lr ranges for SPlus (1e-3 to 1e+0), why total_steps must not be synced to HPO epochs for hyperbolic schedulers, and how to interpret boundary warnings.

See skills/pytorch-train/ for details.

Migrating Existing Projects

If you have a project based on an older version of this template, the pytorch-migrate skill can detect your current version and apply incremental updates automatically.

Install skills globally (once per agent):

python -m cli update-skills --agent claude          # install to ~/.claude/skills
python -m cli update-skills --agent codex           # install to ~/.codex/skills
python -m cli update-skills --agent forge           # install to ~/forge/skills
python -m cli update-skills --agent claude --copy   # copy instead of symlink

Use in any project:

cd ~/my-project  # any pytorch_template-based project
# In your agent:
/pytorch-migrate

The skill detects which features are missing (v1 through v6) and applies only the needed migrations, preserving your custom models, data loaders, and callbacks.

Extend It

Custom Model

# my_model.py
class MyTransformer(nn.Module):
    def __init__(self, hparams: dict, device: str = "cpu"):
        super().__init__()
        self.d_model = hparams["d_model"]

net: my_model.MyTransformer
net_config:
  d_model: 256
  nhead: 8

Custom Loss Function

criterion: my_losses.FocalLoss
criterion_config:
  gamma: 2.0
  alpha: 0.25

Custom Data

Create a module with a load_data() function that returns (train_dataset, val_dataset):

# recipes/myproject/data.py
def load_data():
    return train_dataset, val_dataset

data: recipes.myproject.data.load_data

See recipes/regression/ and recipes/classification/ for complete examples.

Custom Metrics

from metrics import MetricRegistry
registry = MetricRegistry(["mse", "mae", "r2", "my_module.MyMetric"])
results = registry.compute(y_pred, y_true)

Project Structure

pytorch_template/
├── cli.py              # CLI: train, preflight, validate, preview, doctor, analyze, hpo-report, monitor
├── config.py           # RunConfig (frozen, 3-tier validation) + OptimizeConfig
├── util.py             # Trainer, run(), predict_final_loss()
├── callbacks.py        # 12 built-in callbacks + CallbackRunner
├── checkpoint.py       # CheckpointManager + SeedManifest
├── provenance.py       # Environment capture + config hashing
├── pruner.py           # PFL pruner for Optuna
├── metrics.py          # Metric registry (MSE, MAE, R2)
├── model.py            # Built-in MLP
├── configs/            # YAML config templates
├── recipes/            # Example recipes (regression, classification)
├── tools/monitor/      # Rust TUI monitor (ratatui)
├── tests/              # Unit tests
├── docs/               # Human Skill Guide
└── skills/             # Agent skills (pytorch-train, pytorch-migrate)

Output per Seed Run

runs/{project}/{group}/{seed}/
├── model.pt            # Final model state_dict
├── latest_model.pt     # Updated every epoch
├── metrics.csv         # Real-time CSV log (all metrics)
├── env_snapshot.yaml   # Environment metadata
├── run_metadata.yaml   # Training metadata
├── best.pt             # Best checkpoint (if enabled)
└── latest.pt           # Full checkpoint (if enabled)

CLI Reference

Command	Description
`train <config> [--device DEV] [--optimize-config OPT]`	Train or run HPO
`preflight <config> [--device DEV] [--json]`	1-batch forward+backward check
`validate <config>`	Structural + runtime config validation
`preview <config>`	Show model architecture and param count
`doctor`	Check Python, PyTorch, CUDA, wandb, packages
`hpo-report [--db DB] [--opt-config OPT] [--top-k K] [--json]`	HPO analysis: param importance, boundary warnings
`analyze [--project P] [--group G] [--seed S]`	Evaluate a trained model
`monitor [PATH] [--interval MS] [--list]`	Launch real-time TUI monitor (or list available runs)
`update-skills [--agent AGENT] [--copy] [--uninstall]`	Install/update agent skills for Claude, Codex, or Forge

All commands are invoked via python -m cli <command>.

Documentation

	AI Agent Skill	Human Guide
Location	`skills/pytorch-train/`	`docs/`
Teaches	Config rules, param ranges, CLI commands	Design decisions, trade-offs, workflow intuition

Read the Human Skill Guide — 5 chapters covering the full pipeline.

License

MIT

Acknowledgments

pytorch-optimizer — optimizers including SPlus
pytorch-scheduler — schedulers including ExpHyperbolicLR
Optuna — hyperparameter optimization framework
ratatui — Rust TUI framework for the training monitor

Version	Changes	Urgency	Date
v0.3.0	## New Features - Dual logging: `logging: wandb` (default) or `logging: tui` for agent-friendly terminal output - CSVLoggingCallback (always active): writes `metrics.csv` every epoch with dynamic column expansion - TUILoggingCallback: structured per-epoch terminal output replacing W&B - LatestModelCallback (always active): saves `latest_model.pt` every epoch - Rust TUI monitor (`tools/monitor/`): real-time loss curve visualization from `metrics.csv` - Provenance tracking	High	4/8/2026
v0.2.0	## What's New ### Pre-flight Check Run 1 batch forward+backward before training to catch config errors in seconds: ```bash python -m cli preflight configs/run_template.yaml --device cuda:0 ``` Detects shape mismatches, NaN/Inf gradients, scheduler param issues, and estimates GPU memory. ### HPO Analysis After HPO, understand what Optuna found: ```bash python -m cli hpo-report --opt-config configs/my_opt.yaml ``` Shows parameter importance (fANOVA), boundary warnings, and top-K trial comparison	Medium	3/27/2026
