A modern web-based SD-WAN traffic generator with real-time monitoring, customizable traffic patterns, and comprehensive security testing. Perfect for testing SD-WAN deployments, network QoS policies, and application performance.

• Features
• Screenshots Gallery
• Platform Support
• Prerequisites
• Quick Start
• Verify Installation
• What Happens on First Start?
• Usage
• Configuration
• Useful Commands
• Architecture
• Troubleshooting
• Security
• Key Concepts
• Docker Images
• Documentation
• Use Cases
• Contributing
• Roadmap
• License
• Support

I built this tool after years of writing one-off scripts for SD-WAN and security POCs, and never finding a single lab platform that really matched what I see in the field. With a long background in networking and security, I wanted something that could generate realistic mixes of web/SaaS, voice and IoT traffic, tie in security use cases, and still be simple enough for engineers, partners and customers to run on their own. This project is my way to turn all that lab and demo experience into an open-source tool that helps people design, validate and troubleshoot modern SASE/SD-WAN deployments more effectively.

• 67 Pre-configured Applications - Popular SaaS apps (Google, Microsoft 365, Salesforce, Zoom, etc.).
• Realistic Traffic Patterns - Authentic HTTP requests with proper headers, User-Agents, and Referers
• Real-time Dashboard - Live traffic visualization, metrics, and status monitoring
• Weighted Distribution - Configure application traffic ratios using a visual Group/App percentage system
• Traffic Rate Control - Dynamically adjust generation speed from 0.1s to 5s delay via a slider
• Protocol & IP Flexibility - Support for explicit http:// or https:// and full IP address identification
• Multi-interface Support - Bind to specific network interfaces
• Voice Simulation (RTP) - Simulate real-time voice calls (G.711, G.729) with Scapy-based packet forging. Read more
• Speedtest (XFR): High-performance throughput and latency validation with real-time telemetry. Learn more about XFR testing. 🚀
• IoT/SaaS Emulation: Pre-populated application targets for SD-WAN policy verification.
• IoT Simulation - Simulate a variety of IoT devices (Cameras, Sensors) with Scapy-based DHCP and ARP support for "Real-on-the-Wire" physical network presence. Includes Security Testing / Attack Mode to validate malicious behavior detection (DNS Flood, C2 Beacon, Port Scan, Data Exfiltration). Read more
• Unified Source/Target Architecture - Every Stigix instance is versatile. It can simultaneously act as a Source (generating traffic) and a Target (responding to echo/bandwidth/SLA probes).
• Active by Default - High-precision traffic and responsive services (Voice Echo, XFR, HTTP SLA) are started automatically upon deployment. Any instance can be used as a test target by any other instance.
• Prisma SD-WAN Integration - Automatic discovery of sites and LAN interfaces via API for "Zero-Config" connectivity probes and path validation. Read more
• Convergence Lab (Performance) - High-precision UDP failover monitoring (up to 1000 PPS) to measure SD-WAN tunnel transition times. Read more
• Smart Networking - Auto-detection of default gateways and interfaces (enp2s0, eth0) for a "Zero-Config" experience on physical Linux boxes. Read more
• VyOS Control - Orchestrate network events and perturbations (latency, loss, rate-limiting, ip blocking) on VyOS routers via Vyos API. Read more
• Autodiscovery & Registry - Automatic peer-to-peer discovery using Cloudflare Workers. "Zero-Config" multi-node setup with stateless authentication. Read more 📡✨
• Smart Identity - Automatic instance identification using system hostname. Simplifies deployment by reducing environment variables. 🆔
• Target Site Mode - Standalone container acting as a branch/hub target with HTTP, Voice, Failover tests and Bandwidth services (IPerf AND XFR speedtest). Read more

• URL Filtering Tests - Validate 66 different URL categories (malware, phishing, gambling, adult content, etc.)
• DNS Security Tests - Test DNS security policies with 24 domains (malware, phishing, DGA, etc.)
• Threat Prevention - EICAR file download testing for IPS validation
• Scheduled Testing - Automated security tests at configurable intervals
• EDL - IP, URL, DNS urls with sequential or random execution
• Test Results History - Persistent logging with search, filtering, and export

• Real-time Logs - Live log streaming with WebSocket updates
• Statistics Dashboard - Success/failure rates, latency metrics, bandwidth tracking
• Live VPN Topology Overlay - Real-time visualization of SD-WAN tunnels with path status (Active/Backup/Down) and HUB-specific filtering. Directly from Prisma SASE API.
• Persistent Logging - JSONL storage with 7-day retention and auto-rotation
• Search & Filter - Find specific tests quickly with powerful search
• Export Capabilities - Download results in JSON, CSV, or JSONL format

• Auto-detection - Automatically detects network interfaces on first start
• Auto-generated Config - Creates applications-config.json with 67 apps automatically
• One-liner Install - Ready in 30 seconds with single command (Linux/macOS). Supports Dashboard or Target Site modes.
• Docker-based - Pre-built multi-platform images (AMD64 + ARM64).
• Export/Import config capability - to clone appplications, probes, IOT , Vyos configurations
• One-Click Upgrade (Beta) - Built-in maintenance UI to pull latest images and restart services with a single click.

• JWT Authentication - Secure login with token-based auth
• Log Rotation - Automatic cleanup with configurable retention
• Health Monitoring - Built-in healthchecks and dependency management
• Resource Limits - Optional CPU and memory constraints

The project is evolving rapidly with new features and refinements added in every release.

• Favicon System: Automated discovery and caching of SaaS application icons with intelligent fallback UI for enhanced dashboard visibility. 🌐✨
• Speedtest (XFR): High-performance throughput and latency validation with real-time telemetry and searchable history.
• IoT Security Testing: Bad behavior simulation for IoT devices (DNS Flood, C2 Beacon, Port Scan).
• Live VPN Topology: Real-time visualization of SD-WAN overlay paths with intelligent peer device mapping and HUB filtering.
• Site Discovery: Automatic discovery of Prisma SD-WAN LAN interfaces for path validation.
• Traffic Volume History: Persistent metrics storage and historical visualization in the dashboard.
• Probe Management Modal: Streamlined UI for adding/editing synthetic probes with improved validation and a functional Export button. 🛠️
• Cloud Egress Context: Enhanced "System Info" tab with real-time public IP, geolocation, and ASN data for Cloud probes. 🌍
• MCP Bridge Setup: New setup-bridge.sh script for automated local installation of the Claude MCP bridge. 🤖

View full changelog with all version details →

Explore the application interface organized by feature area. Each category contains detailed screenshots showcasing the functionality.

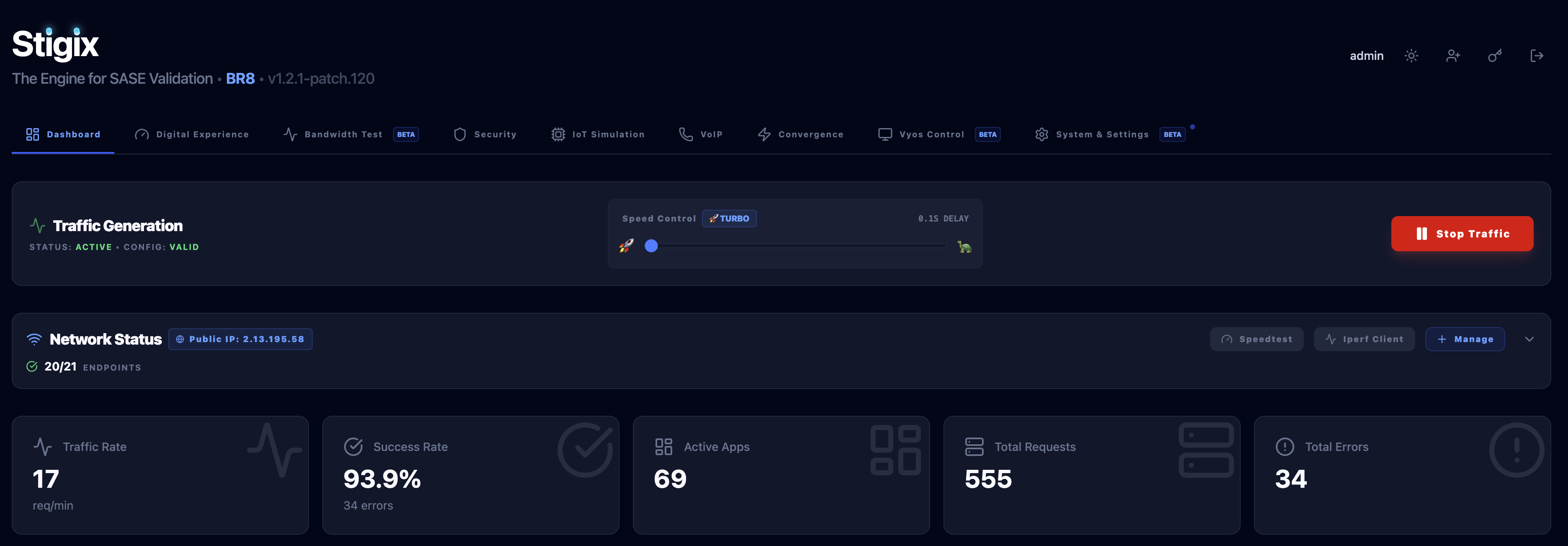

Real-time monitoring, traffic control, and system health overview.

View all Main Dashboard screenshots → (2 images)

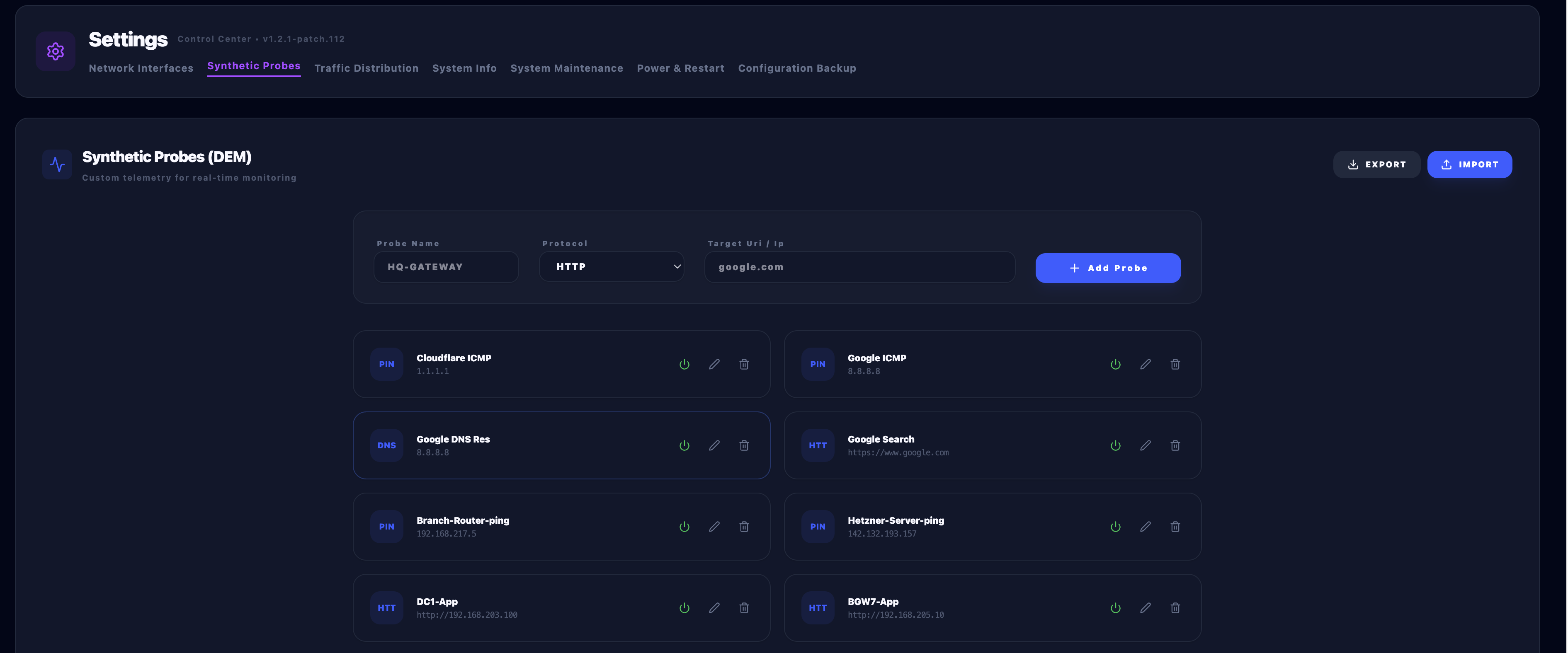

Network interfaces, traffic distribution, synthetic probes, and application management.

View all Configuration screenshots → (2 images)

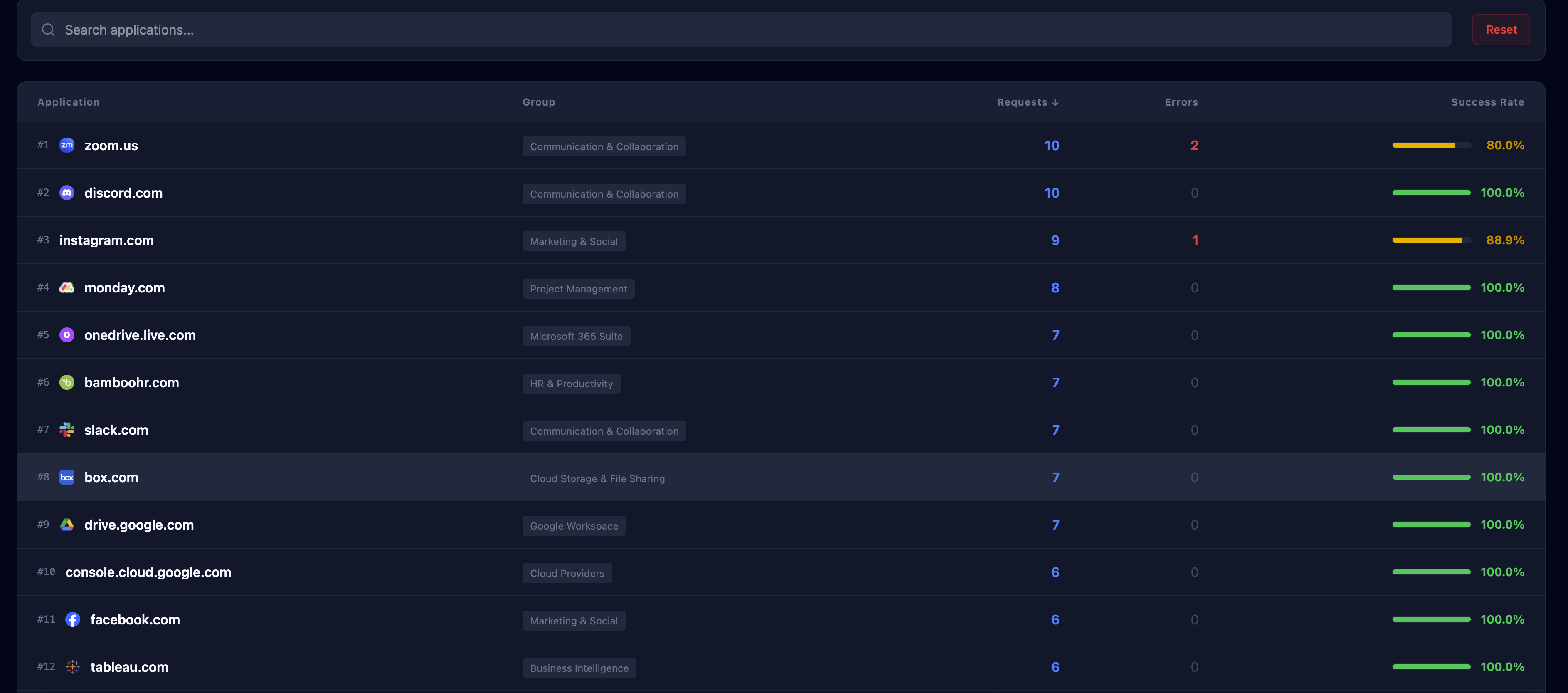

Traffic volume charts, success rates, and performance metrics.

View all Statistics screenshots → (1 image)

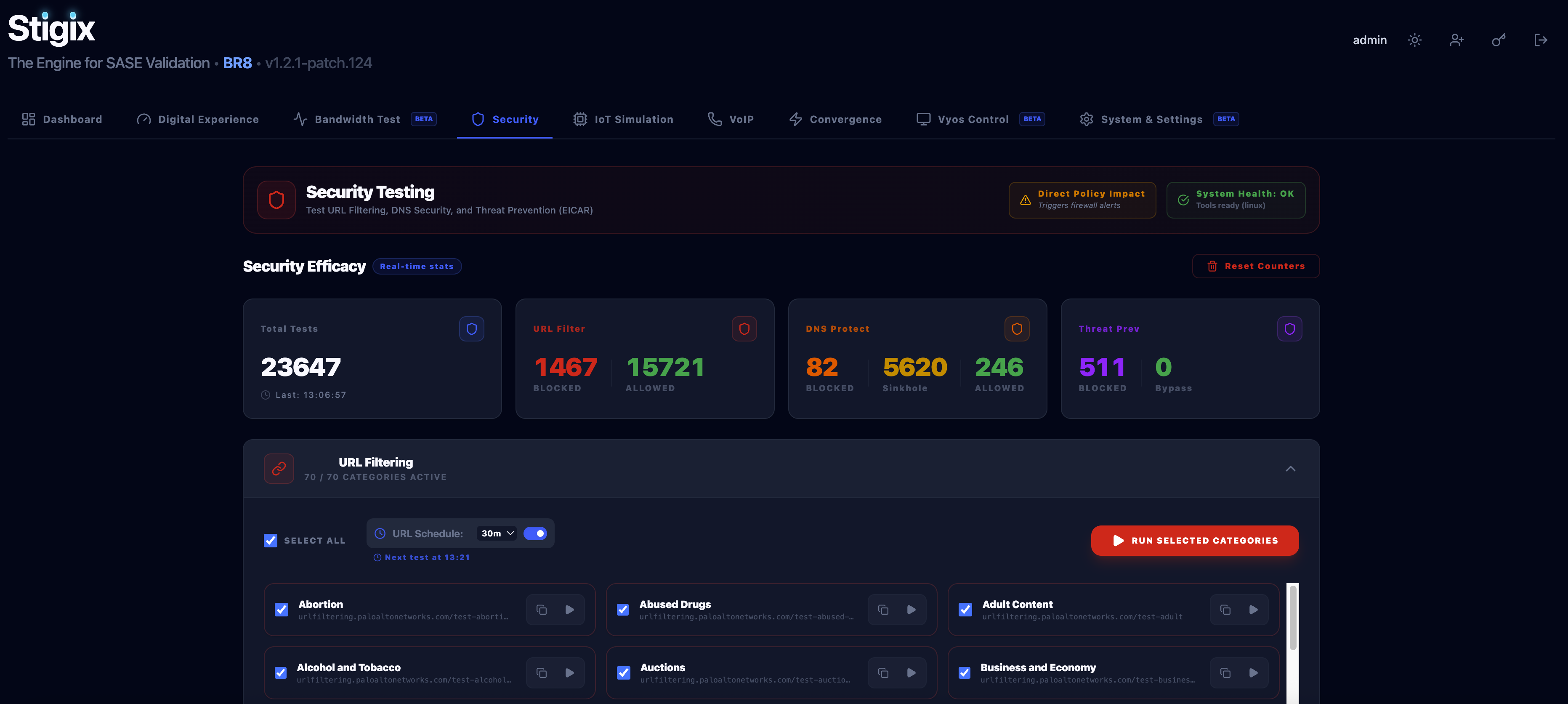

URL filtering, DNS security, threat prevention validation, and test results history.

View all Security screenshots → (7 images)

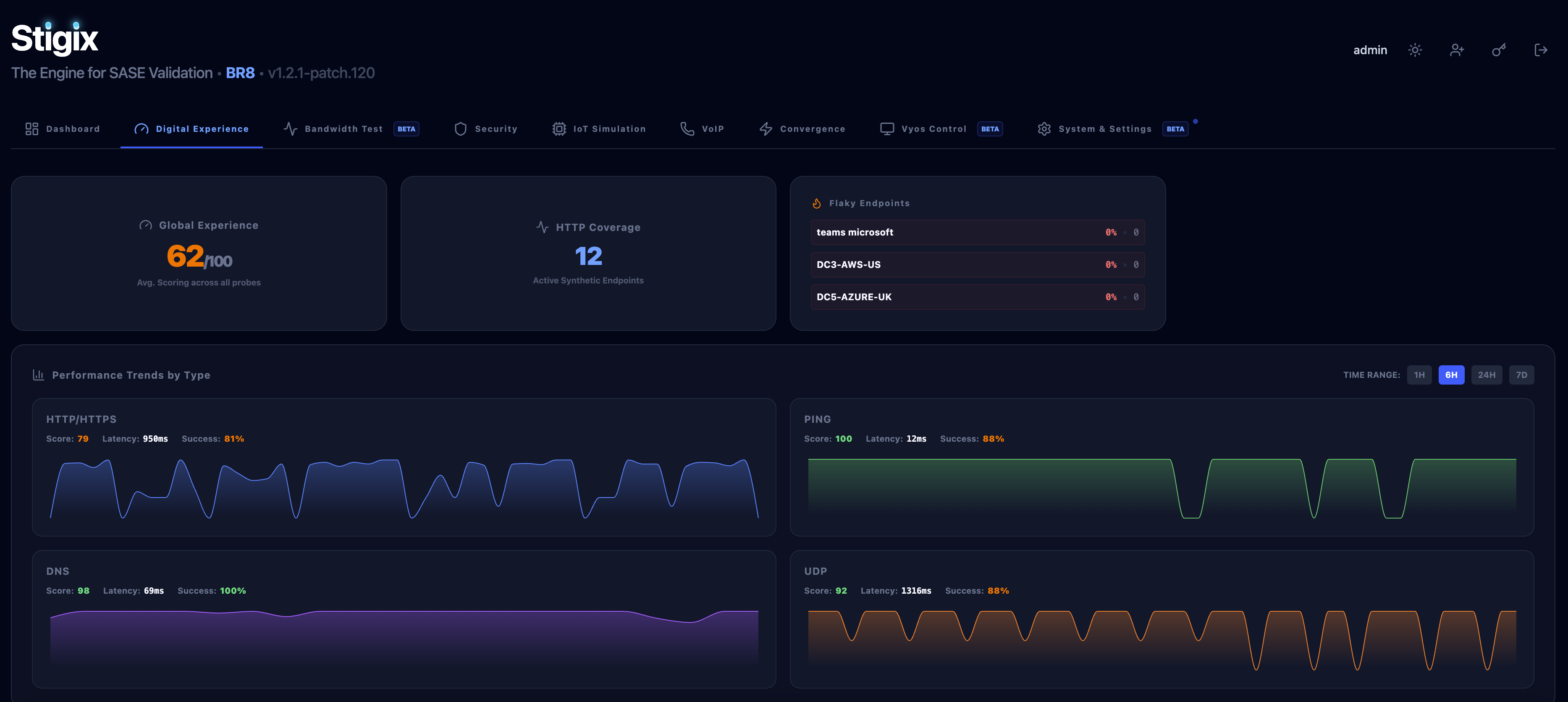

Connectivity performance, synthetic probes, and endpoint health tracking.

View all Performance screenshots → (5 images)

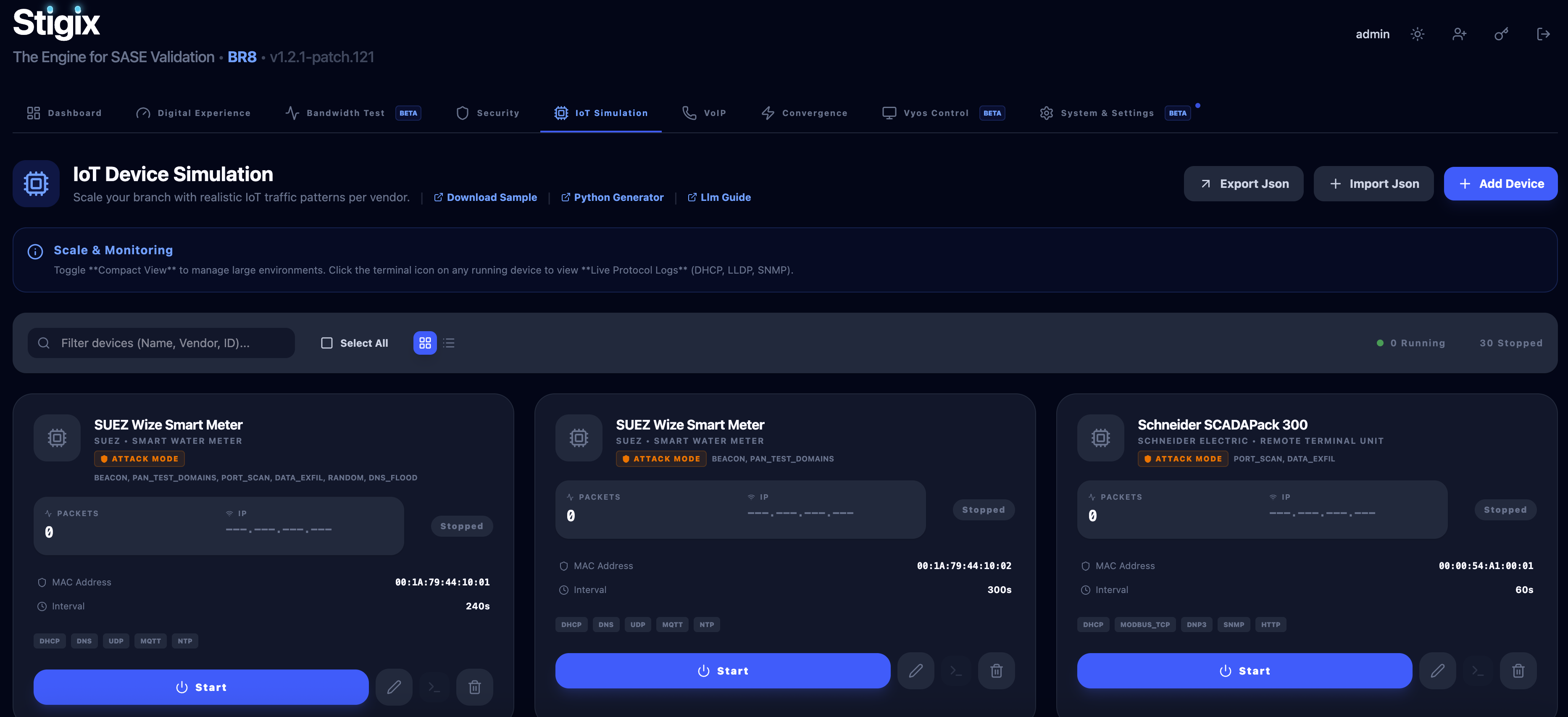

Layer-2/3 device simulation with DHCP and ARP support.

View all IoT screenshots → (6 images)

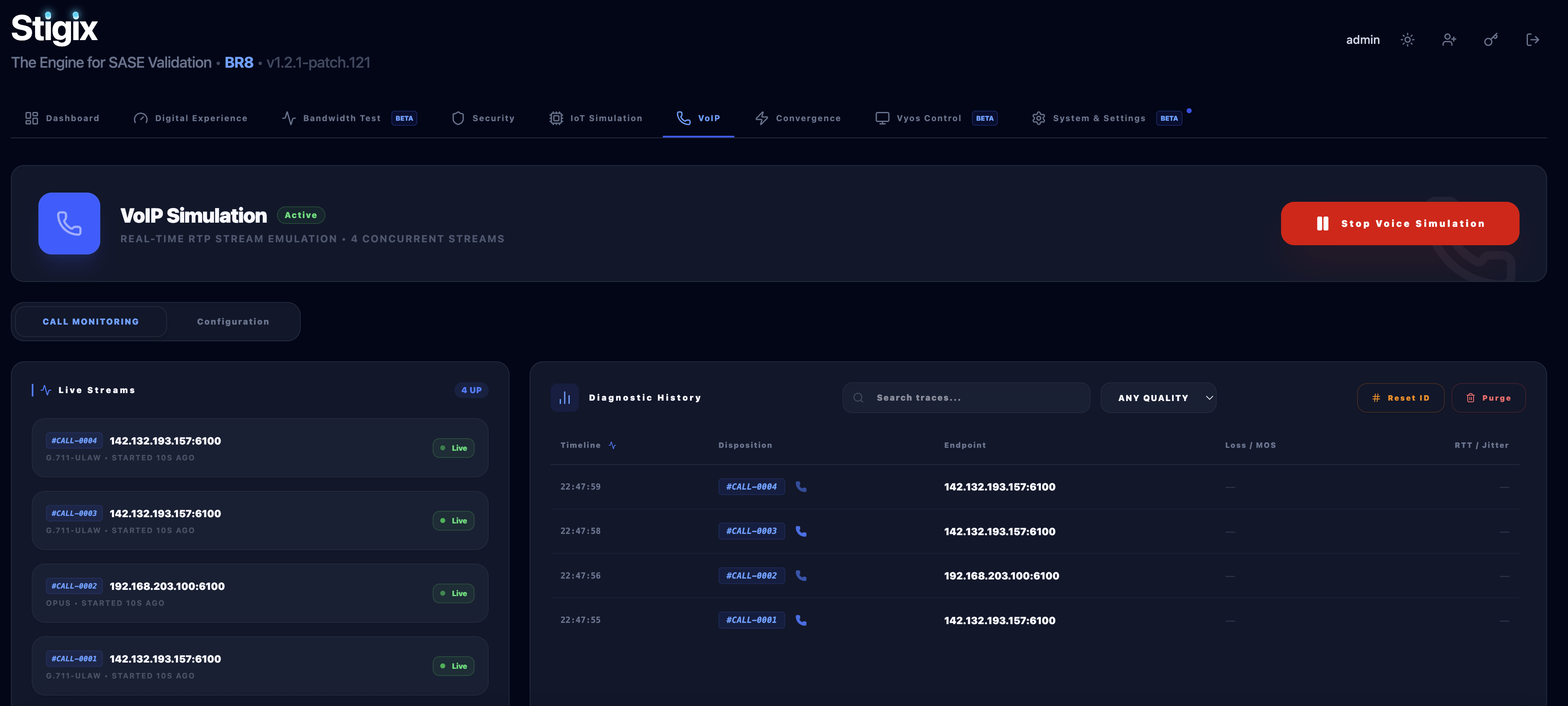

RTP packet generation, QoS analytics, and MOS scoring.

View all Voice screenshots → (3 images)

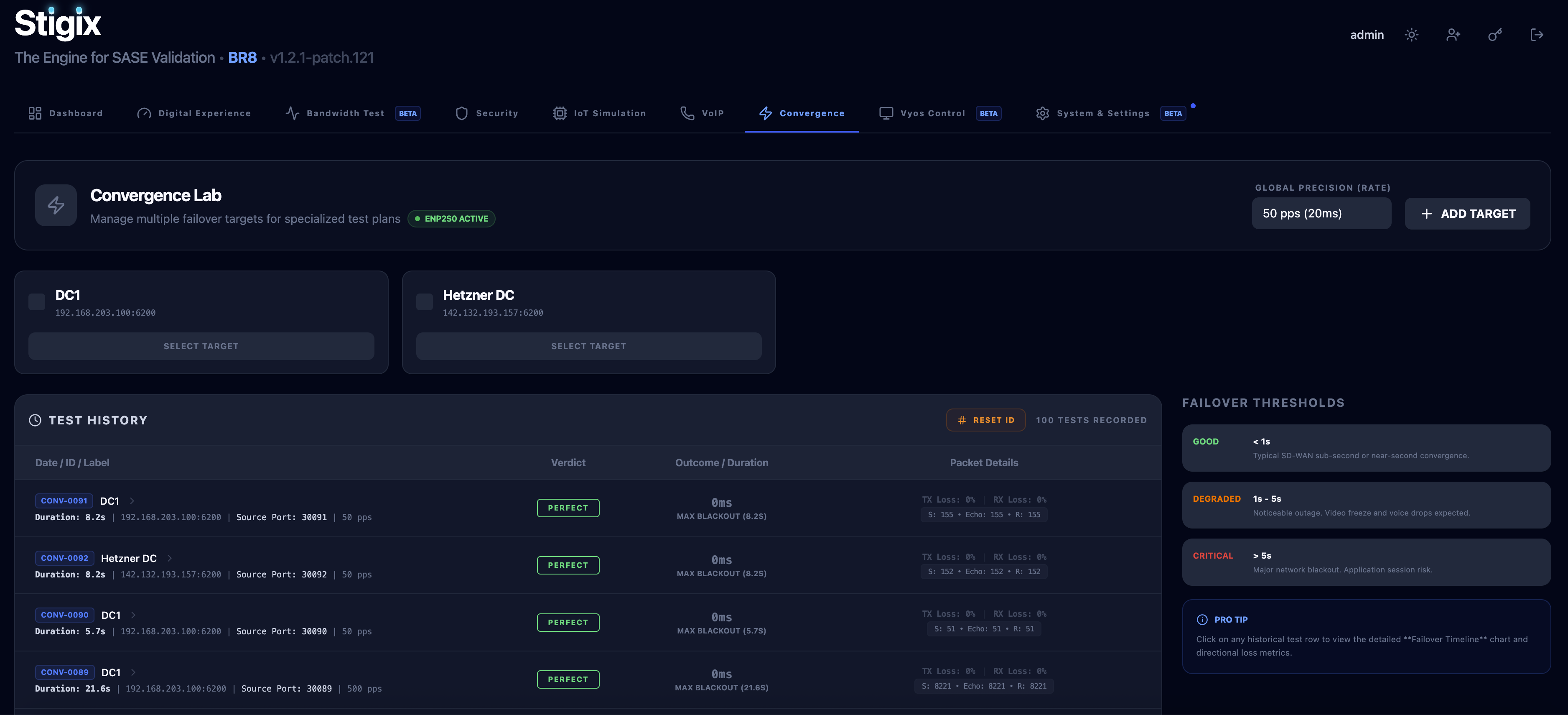

High-precision UDP failover monitoring and convergence testing.

View all Failover screenshots → (3 images)

Network impairment orchestration (latency, loss, rate-limiting) on VyOS routers.

View all VyOS Control screenshots → (5 images)

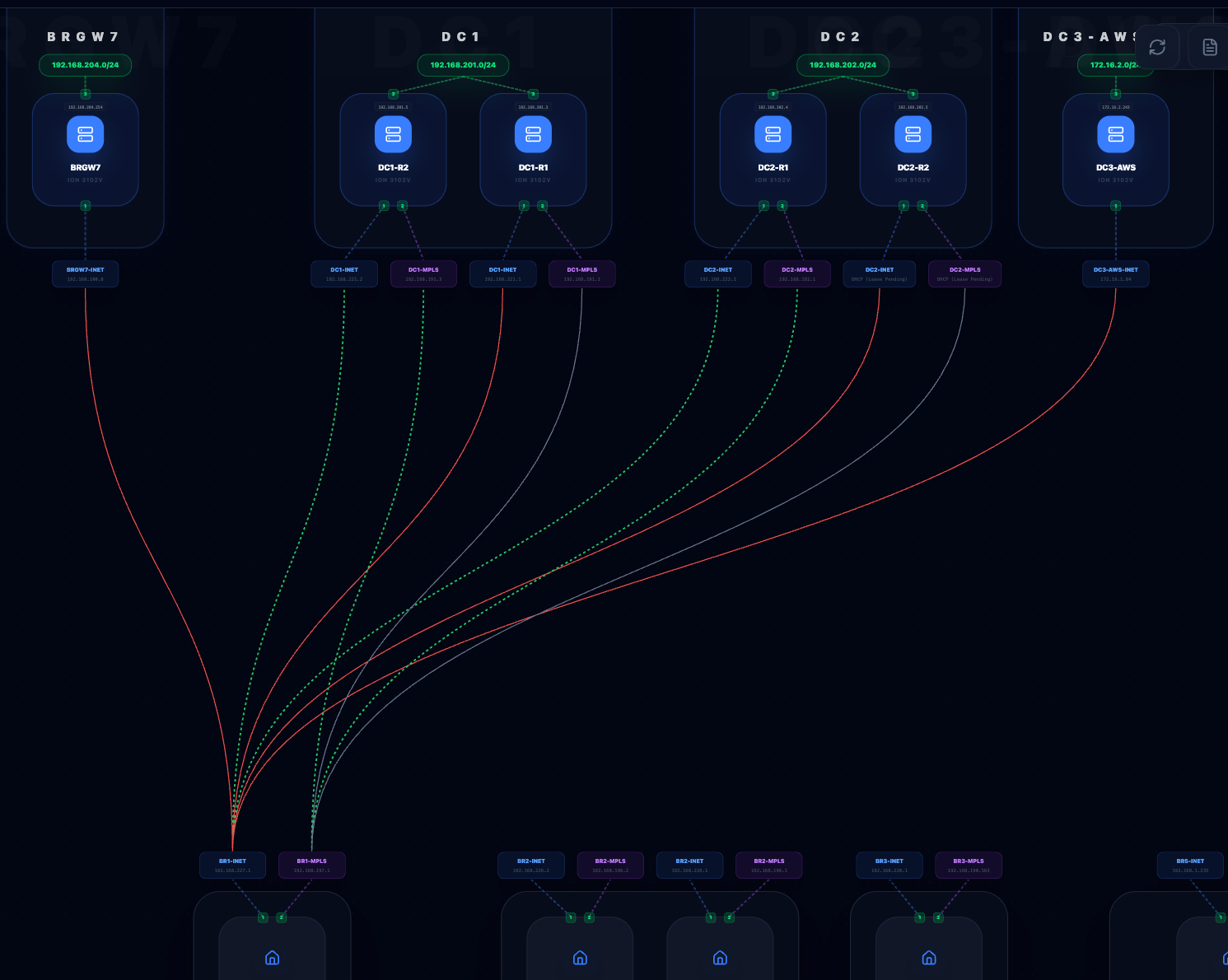

Real-time visualization of SD-WAN overlay paths with intelligent peer device mapping and HUB filtering.

View all Topology screenshots → (3 images)

This application runs on:

• 🐧 Linux - Docker Engine (Ubuntu, Debian, CentOS, etc.)
• 🍎 macOS - Docker Desktop for Mac (macOS 11+)
• 🪟 Windows - Docker Desktop with WSL 2 (Windows 10/11)

Windows Users: The one-liner installation script is not supported in PowerShell.
Please follow the Windows Installation Guide for step-by-step instructions.

This application runs in Docker containers. You must have Docker installed and running before installation.

• Install Docker Desktop for Mac
  • Download from: https://www.docker.com/products/docker-desktop/
  • Requires macOS 11 or later
  • Important: Launch Docker Desktop and wait until it's running (🐳 icon in menu bar)
• Alternatives: OrbStack or Colima (lightweight alternatives for macOS)

• Install Docker Desktop for Windows with WSL 2
  • Complete guide: Windows Installation Guide
  • Requires Windows 10/11 64-bit
  • Important: WSL 2 must be enabled and Docker Desktop must be running

• Install Docker Engine
  • Follow official guide: https://docs.docker.com/engine/install/ubuntu/
  • Or quick install:

    curl -fsSL https://get.docker.com -o get-docker.sh
    sudo sh get-docker.sh
    sudo usermod -aG docker $USER
    # Logout and login again

# Check Docker is running
docker --version
docker ps

# Expected output:
# Docker version 24.x.x or later
# CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS   PORTS   NAMES

Requirements: Docker must be running (see Prerequisites above)

We provide an interactive installation script that configures the Stigix All-in-One container for your environment.

curl -sSL https://raw.githubusercontent.com/jsuzanne/stigix/main/install.sh | bash

What to expect:

🚀 Stigix (All-in-One) - Installation
==========================================
✅ Docker is running.
🐧 Platform: Native Linux detected. (Using host mode for full features)

📌 Choose Deployment Mode:
1) Both (Source + Target) [Default] - Runs Dashboard, Traffic Gen, and Echo targets
2) Target Only - Deploys only the Echo/XFR targets
3) Source Only - Deploys only the Dashboard and Traffic Gen
Select an option [1-3] (Default: 1): 1
🎯 Selected Mode: both
📦 Downloading Base Configuration from GitHub...
✅ Files prepared in /path/to/stigix
🔧 Pulling images and starting Stigix All-in-One...

This will:

• ✅ Check if Docker is installed and running
• ✅ Detect your OS to configure networking (Host for Linux, Bridge for Mac/WSL)
• ✅ Let you choose your deployment mode (Interactive)
• ✅ Pull the single, optimized jsuzanne/stigix:stable image
• ✅ Start all necessary services automatically
• ✅ Auto-generate configuration

Access: http://localhost:8080
Credentials: admin / admin (change after first login)

Advanced flags: You can bypass interactivity using --mode <both|source|target> or simulate the install with --dry-run. Example: curl -sSL https://raw.githubusercontent.com/jsuzanne/stigix/main/install.sh | bash -s -- --mode target

Windows Users: The one-liner installation script is not supported in PowerShell. Please follow the Windows Installation Guide for step-by-step instructions.

If you prefer not to use the install script, you can download the compose file manually.

mkdir -p stigix && cd stigix
# Download the consolidated compose file
curl -sSL -o docker-compose.yml https://raw.githubusercontent.com/jsuzanne/stigix/main/docker-compose.yml
# Start the All-in-One container
docker compose up -d

Consolidated Architecture: Stigix is now distributed as a single All-in-One image (jsuzanne/stigix) managed by supervisord. This simplifies deployment and ensures all components (Dashboard, Traffic Gen, Voice, Echo, XFR, MCP) are always in sync.

Windows (PowerShell):

# Create directory
mkdir C:\stigix
cd C:\stigix

# Download bridge mode compose file
curl.exe -L https://raw.githubusercontent.com/jsuzanne/stigix/main/docker-compose.example.bridge.yml -o docker-compose.yml

# Start services
docker compose up -d

Default credentials: admin / admin

For detailed Windows instructions, see Windows Installation Guide

# go to directory
cd stigix/

# Check containers status
docker compose ps

# Check logs (should be clean, no [ERROR] messages)
docker compose logs -f

# Check health endpoint
curl http://localhost:8080/api/health
# Expected: {"status":"healthy","version":"1.1.0-patch.7"}

# Check auto-generated config
ls -la config/
cat config/interfaces.txt  # Your auto-detected interface
jq '.applications[]' config/applications-config.json | head -5  # 67 applications

Expected: No [ERROR] messages in logs ✅

The system auto-generates everything you need:

1. config/applications-config.json - 67 popular SaaS applications (Google, Microsoft 365, Salesforce, etc.) and traffic control settings.
2. config/interfaces.txt - Auto-detected network interface (eth0, en0, ens4, etc.)
3. config/users.json - Default admin user with bcrypt-hashed password

No manual configuration needed! 🎉

Simply start the containers and access the dashboard at http://localhost:8080

1. Login to the web dashboard at http://localhost:8080
2. Dashboard Tab: View real-time statistics and control traffic generation
3. Configuration Tab:
   • Add network interfaces (e.g., eth0, wlan0)
   • Adjust traffic distribution percentages for different application categories
   • Use explicit http:// or https:// prefixes for internal or specific servers
4. Logs Tab: View real-time traffic logs and statistics
5. Security Tab: Run URL filtering, DNS security, and threat prevention tests
6. Start/Stop: Use the toggle button on the dashboard

Navigate to the Security tab to:

• Test URL categories (malware, phishing, gambling, etc.)
• Validate DNS security policies
• Test IPS/threat prevention with EICAR downloads
• Schedule automated tests
• View and export test results

The tool supports auto-detection of your Prisma SD-WAN site name for lab visibility.

1. Create a service account in Prisma SASE (TSG) with Read Only permissions.
2. Add the following to your .env file:

   PRISMA_SDWAN_CLIENT_ID=your-client-id@tsgid.iam.panserviceaccount.com
   PRISMA_SDWAN_CLIENT_SECRET=your-client-secret
   PRISMA_SDWAN_TSG_ID=your-tsg-id

3. Restart the container. The detected site name will appear in the dashboard header.

# docker-compose.yml
ports:
  - "8081:8080"  # Use port 8081 instead of 8080

Or use environment variables:

echo "WEB_UI_PORT=8081" > .env

# docker-compose.yml - web-ui environment section
environment:
  # HTTP/HTTPS endpoints
  - CONNECTIVITY_HTTP_1=Production-App:https://myapp.company.com
  - CONNECTIVITY_HTTP_2=Staging-App:https://staging.company.com

  # PING tests (ICMP)
  - CONNECTIVITY_PING_1=HQ-Gateway:10.0.0.1
  - CONNECTIVITY_PING_2=Branch-Gateway:192.168.100.1

  # TCP port checks
  - CONNECTIVITY_TCP_1=SSH-Bastion:10.0.0.100:22
  - CONNECTIVITY_TCP_2=Database:10.0.0.50:3306

# docker-compose.yml - traffic-gen environment section
environment:
  - SLEEP_BETWEEN_REQUESTS=2  # 1 request every 2 seconds (0.5 req/sec)

# docker-compose.yml - web-ui environment section
environment:
  - LOG_RETENTION_DAYS=30  # Keep logs for 30 days
  - LOG_MAX_SIZE_MB=500    # Max 500 MB per log file

# View logs in real-time
docker compose logs -f

# View logs for a specific service
docker compose logs -f web-ui
docker compose logs -f traffic-gen

# Restart services
docker compose restart

# Stop services
docker compose stop

# Stop and remove containers
docker compose down

# Rebuild after code changes
docker compose up -d --build

# Check resource usage
docker stats stigix

# Access container shell
docker compose exec web-ui sh
docker compose exec traffic-gen sh

# Export logs
docker compose logs --no-color > logs-export.txt

┌─────────────────────────────────────────────────────────────┐
│                     User Browser                            │
│                  http://localhost:8080                      │
└────────────────────────┬────────────────────────────────────┘
                         │
                         ▼
        ┌────────────────────────────────────────┐
        │        Stigix All-in-One Container     │
        │   ┌──────────────────────────────┐     │
        │   │    Web Dashboard (React)     │     │
        │   └──────────────┬───────────────┘     │
        │                  ▼                     │
        │   ┌──────────────────────────────┐     │
        │   │  Backend API (Node.js/Exp)   │     │
        │   └──────────────┬───────────────┘     │
        │                  ▼                     │
        │   ┌──────────────────────────────┐     │
        │   │   Traffic Generator (Python) │     │
        │   └──────────────┬───────────────┘     │
        │                  ▼                     │
        │   ┌──────────────────────────────┐     │
        │   │   Target Services (HTTP/XFR) │     │
        │   └──────────────┬───────────────┘     │
        └──────────────────┼─────────────────────┘
                           │
                           ▼
        ┌────────────────────────────────────────┐
        │         Internet / SD-WAN              │
        └────────────────────────────────────────┘

Shared Volumes:
  • config/  - Unified configuration (apps, probes, prisma, vyos)
  • logs/    - Traffic logs and statistics
  • mcp-data/ - Persistence for MCP server state

Error: Cannot connect to the Docker daemon

Solution:

• macOS/Windows: Launch Docker Desktop and wait until the 🐳 icon appears
• Linux: sudo systemctl start docker
• Windows specific issues: See Windows Installation Guide

Error: context deadline exceeded

Solution:

# Retry the pull
docker compose pull

# Or manually pull images
docker pull jsuzanne/stigix:stable

# Change port in docker-compose.yml
ports:
  - "8081:8080"

Or:

echo "WEB_UI_PORT=8081" > .env
docker compose up -d

# Check containers are running
docker compose ps

# Check logs for errors
docker compose logs web-ui
docker compose logs traffic-gen

# Check firewall (Linux)
sudo ufw allow 8080/tcp

# Check network interface configuration
docker compose exec traffic-gen cat /opt/sdwan-traffic-gen/config/interfaces.txt

# Should show your interface (eth0, en0, ens4, etc.)
# If incorrect, edit config/interfaces.txt and restart
docker compose restart

This error should NOT appear in v1.1.0-patch.7 or later. If you see it:

# Update to latest version
docker compose pull
docker compose down
docker compose up -d

# Reduce retention in docker-compose.yml
environment:
  - LOG_RETENTION_DAYS=3
  - LOG_MAX_SIZE_MB=50

1. Check that network interfaces are configured in the Configuration tab
2. Verify traffic generation is started (green "Active" status on dashboard)
3. Check logs: docker compose logs -f traffic-gen

Issue: Stigix traffic fails to start or network operations (like Voice/IoT simulation) fail when running in Host Network mode on certain virtualized stacks (Proxmox → LXC → Ubuntu → Docker).

Solution: This is often due to insufficient container privileges for low-level network operations (NET_ADMIN, NET_RAW).

• Trusted Lab Fix: Enable privileged: true in your docker-compose.yml for the Stigix container.
• Alternative: Add specific capabilities:

  cap_add:
    - NET_ADMIN
    - NET_RAW

Warning: Use privileged: true only in trusted lab setups, as it significantly reduces container isolation and increases host security risk.

• Change default admin password (Dashboard → Settings)
• Set strong JWT_SECRET in docker-compose.yml
• Use HTTPS with a reverse proxy (nginx, Traefik, Caddy)
• Restrict access with firewall rules
• Enable Docker resource limits
• Review and customize application list
• Set appropriate log retention policies

# docker-compose.yml - web-ui environment
environment:
  - JWT_SECRET=your-super-secure-random-string-here

Generate a secure secret:

openssl rand -base64 32
