Radio Gateway

A full-stack Linux radio gateway that bridges analog and digital two-way radios to the internet: Mumble VoIP, Broadcastify streaming, Winlink email over packet radio, APRS tracking, Telegram bot control, AI-powered announcements, and a 17-page web UI. Bus-based audio routing with a visual drag-and-drop editor, plugin-based radio support, per-stream diagnostic tracing, and 55+ MCP tools for AI control -- all from a single Python process.

Radios: TH-9800 (AIOC), TH-D75 (Bluetooth), KV4P (USB serial), FTM-150 (remote endpoint), RSPduo dual SDR receiver. Packet: Winlink email via Direwolf TNC + Pat client. APRS decode with station mapping. BBS terminal. Gateway proximity map from Winlink CMS directory. Audio: Sub-millisecond jitter bus mixer with per-stream trace diagnostics. Fire-and-forget PTT. Direct ALSA capture bypassing PipeWire.

• Unified audio engine -- all buses (listen, solo, duplex, simplex) now run in a single BusManager thread. The main loop is a thin consumer that drains queues for SDR rebroadcast and WebSocket push. One code path for all audio.
• Loop Recorder -- per-bus continuous recording with visual waveform review. Enable the "R" button on any bus to record. Canvas-based waveform viewer with zoom/pan, click-to-play, drag-select, and MP3/WAV export. Configurable retention (1h to 7 days). Dashboard panel with live stats. See docs/loop-recorder.md.
• Plugin auto-discovery -- drop a .py file in plugins/, add a config flag, restart. No gateway code changes needed. Template at plugins/example_radio.py. Full developer guide at docs/plugin-development.md.

Loop Recorder

• Bus-based routing replaces the monolithic mixer. Four bus types (Listen, Solo, Duplex Repeater, Simplex Repeater) handle all audio flow. Sources and sinks are wired through busses -- audio only flows where you connect it.
• Visual routing UI built on Drawflow. Drag sources, busses, and sinks onto a canvas and wire them with click-and-drag connections. Live audio level bars on every node.
• Plugin architecture for all radios. TH-9800, TH-D75, KV4P, and SDR are self-contained plugins (TH9800Plugin, D75Plugin, KV4PPlugin, SDRPlugin) that register as sources and sinks in the routing system.
• Per-bus audio processing -- noise gate, HPF, LPF, and notch filter configurable per bus.
• Full duplex Remote Audio -- Windows client sends and receives simultaneously on two TCP ports.
• Direct Icecast streaming -- internal ffmpeg pipes directly to Icecast. No DarkIce, no ALSA loopback, no external processes.
• Mumble as routable source/sink -- Mumble RX and Mumble TX appear as nodes in the routing page.
• MCP routing tools -- AI can create busses, wire connections, mute sinks, and read levels programmatically.

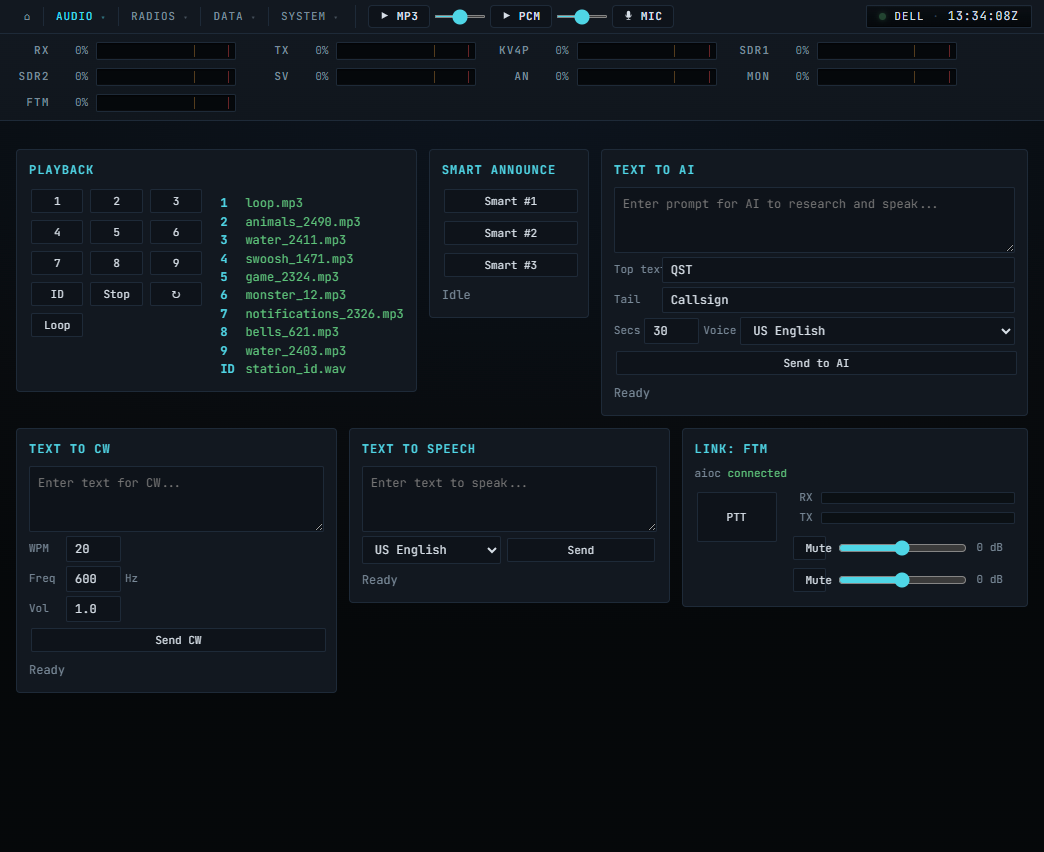

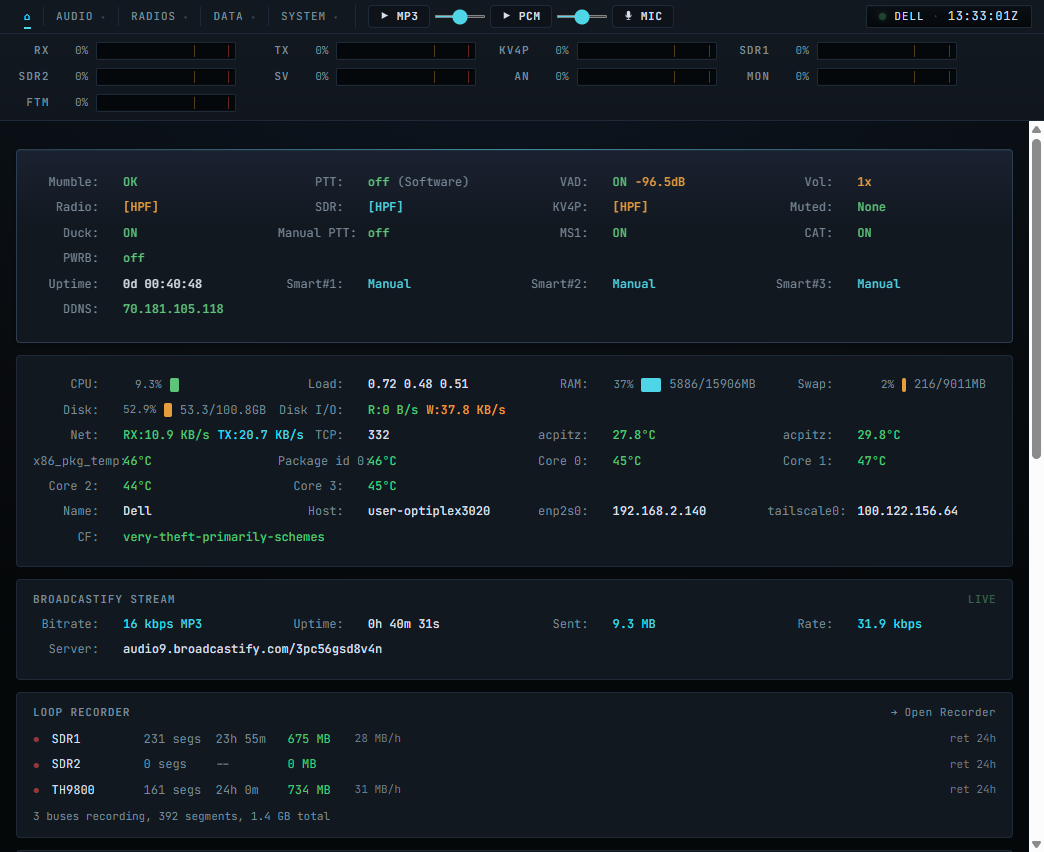

Dashboard	Routing	Controls

TH-9800	TH-9800 (full)	TH-D75

KV4P	SDR	ADS-B

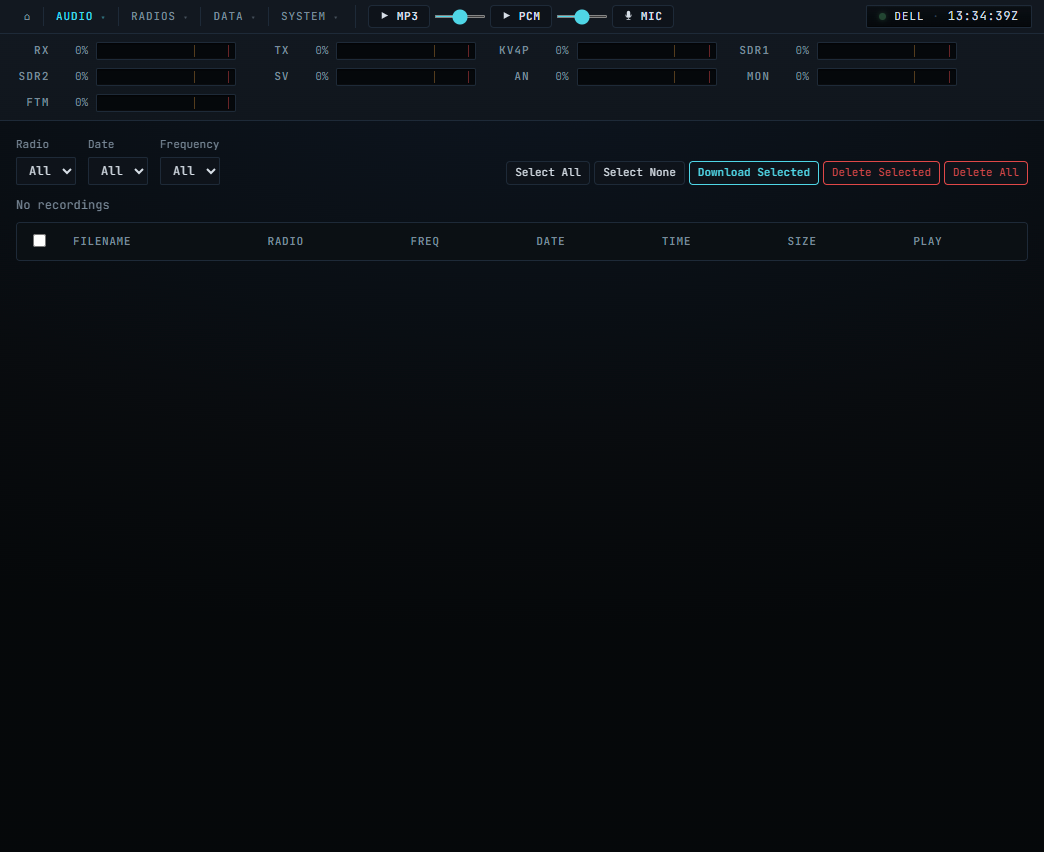

Telegram	Monitor	Recordings

GPS	Repeaters	Transcription

Packet Status	Packet APRS Map	Packet Winlink

Packet BBS	Config	Logs

• Linux system (Raspberry Pi 4, Debian, Ubuntu, Arch)
• Python 3.7+
• PipeWire (recommended) or ALSA
• FFmpeg

git clone <your-repo-url>
cd radio-gateway
bash scripts/install.sh

The installer handles system packages (Python, PortAudio, FFmpeg, HIDAPI, scipy), PipeWire configuration, Python packages, UDEV rules, audio group membership, Mumble server, example config, and a desktop shortcut.

Supported: Raspberry Pi (any model), Debian 12, Ubuntu 22.04+, Arch Linux.

Python 3.12+: The installer patches the pymumble SSL layer automatically.

1. Copy and edit the config:

   cp examples/gateway_config.txt gateway_config.txt

2. Set your Mumble server details:

   MUMBLE_SERVER = your.mumble.server
   MUMBLE_PORT = 64738
   MUMBLE_USERNAME = RadioGateway
   MUMBLE_PASSWORD = yourpassword

3. Start the gateway:

   python3 radio_gateway.py

   Or use the startup script: bash start.sh (handles Mumble, CAT server, tmux sessions, CPU governor, USB resets, and the gateway itself).

4. Open the web UI at http://<host>:8080/dashboard

Built-in HTTP server (no Flask). Shell frame with persistent audio level bars visible on every page. Compact nav bar with inline MP3/PCM/MIC controls. 17 pages served from static HTML files in web_pages/.

[web]
ENABLE_WEB_CONFIG = true
WEB_CONFIG_PORT = 8080
WEB_CONFIG_PASSWORD =        # blank = no auth
GATEWAY_NAME = My Gateway
WEB_THEME = blue             # blue, red, green, purple, amber, teal, pink

Nav bar buttons: MP3 stream toggle, PCM stream toggle, MIC (web microphone -- sends browser audio to the routing system).

Browser audio: MP3 stream (shared FFmpeg encoder) and low-latency WebSocket PCM player with 200ms pre-buffer. Screen wake lock during playback.

Cloudflare tunnel: Free public HTTPS via *.trycloudflare.com. Works behind NAT, no port forwarding needed.

ENABLE_CLOUDFLARE_TUNNEL = true

v2.0 replaces the old priority mixer with a bus-based routing system. All audio flows through busses. Sources produce audio, sinks consume it, and busses sit in between to mix, repeat, or cross-link.

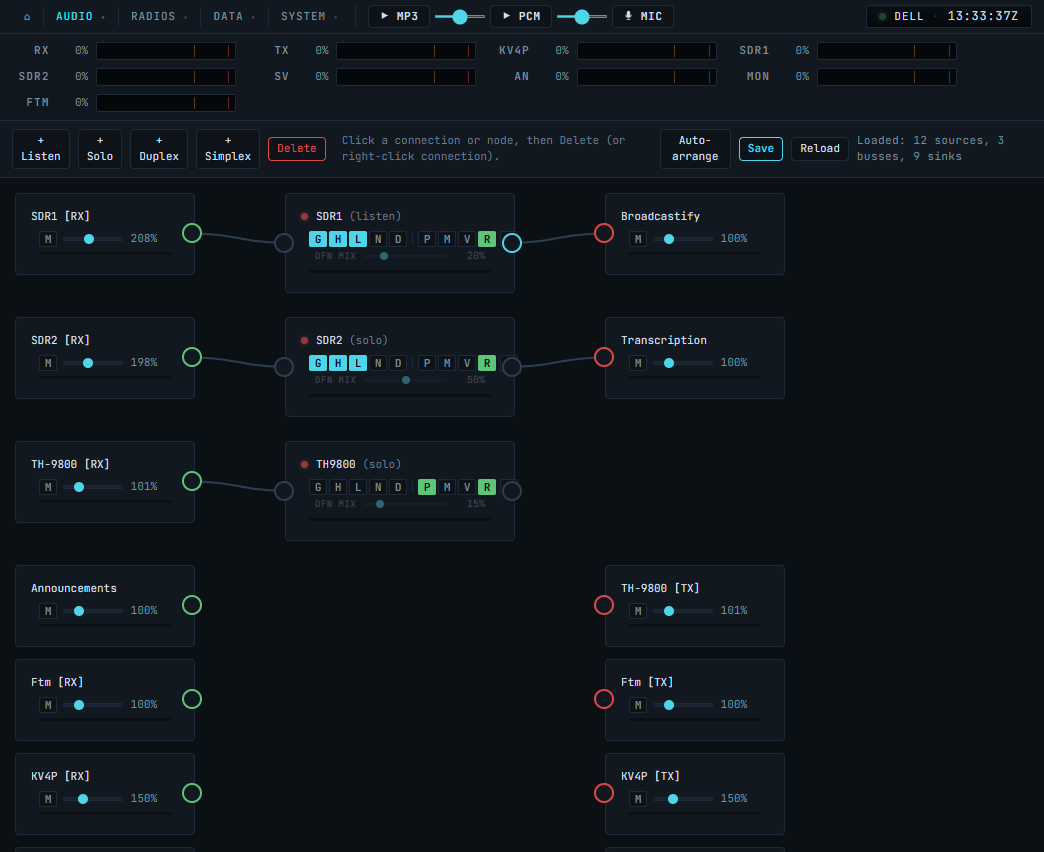

Open /routing in the web UI. The page shows a canvas with three column types:

• Sources (left) -- radio RX, SDR, Mumble RX, Room Monitor, Remote Audio, etc.
• Busses (center) -- create busses by type, each with its own processing chain.
• Sinks (right) -- Mumble TX, Icecast stream, speaker, Remote Audio TX, radio TX, etc.

To wire a connection, drag from a source's output port to a bus's input port, or from a bus's output port to a sink's input port. Audio only flows through established connections.

Each node shows a live audio level bar. Sources and sinks have inline mute and gain controls. Busses have mute toggles and show red level bars when muted.

Each bus has its own audio processing chain, toggled independently:

• Noise Gate -- removes background noise below threshold
• HPF -- high-pass filter (cuts low-frequency rumble)
• LPF -- low-pass filter (cuts high-frequency hiss)
• Notch Filter -- narrow-band rejection at configurable frequency

Each bus can independently enable:

• PCM -- low-latency WebSocket stream
• MP3 -- compressed stream for browser playback
• VAD -- voice activity detection gating

The speaker output has three modes to prevent feedback:

• Virtual -- PipeWire virtual sink (prevents feedback loops)
• Auto -- selects the best available output
• Real -- direct hardware output

All radios are self-contained plugins that register as sources and sinks in the routing system.

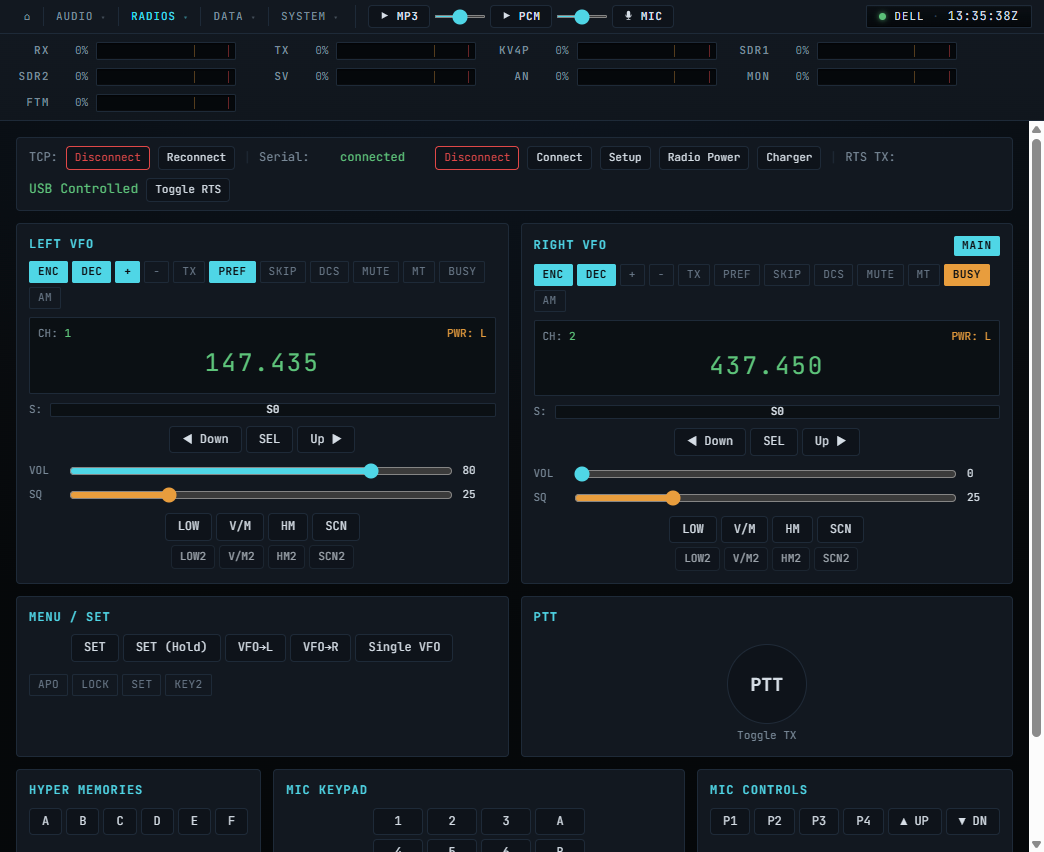

Full CAT control via TH9800_CAT.py TCP server. AIOC USB audio interface with HID PTT.

• Dual VFO with independent frequency, channel, volume, and power control
• Signal meters, all front-panel buttons replicated in the web UI
• Browser mic PTT via the radio page
• Hyper memories and mic keypad

ENABLE_CAT_CONTROL = true
CAT_HOST = 127.0.0.1
CAT_PORT = 9800

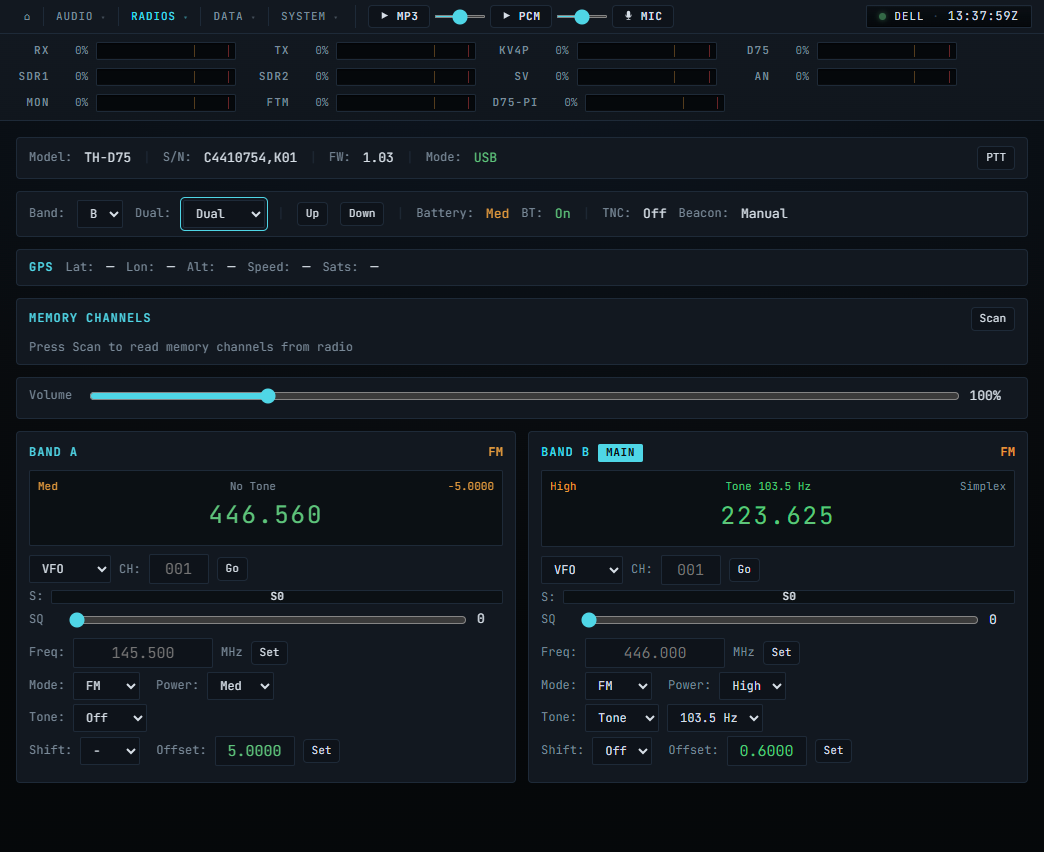

Kenwood TH-D75 D-STAR HT via Bluetooth proxy (scripts/remote_bt_proxy.py). Proxy ports: 9750 (CAT text), 9751 (raw 8kHz PCM audio).

• Bluetooth TX audio -- transmit playback, TTS, and announcements through the D75
• Memory channel load with full tone, mode, shift, offset, and power settings
• Band A/B VFO control, D-STAR status, BT connect/disconnect
• Battery level and TNC mode from proxy

ENABLE_D75 = true
D75_CAT_HOST = 127.0.0.1
D75_CAT_PORT = 9750

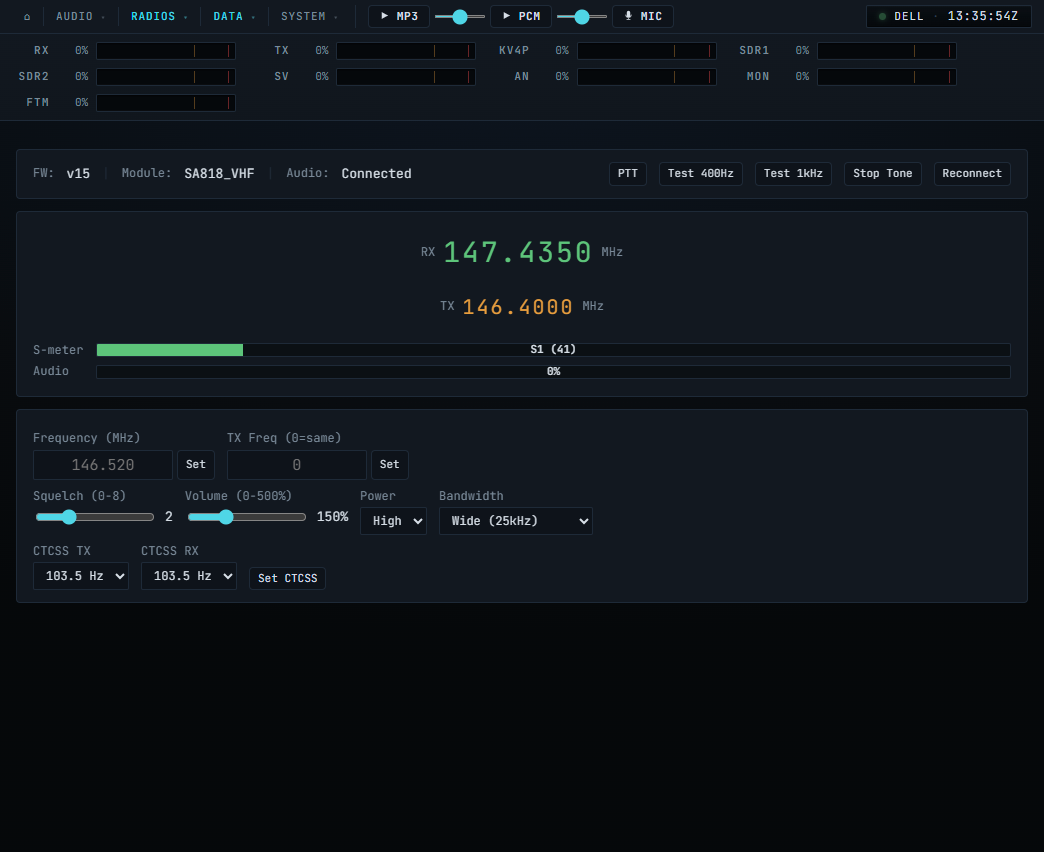

KV4P software-defined radio module (SA818/DRA818) via CP2102 USB-serial. Opus codec audio.

• DRA818 uses 38 CTCSS tones (not 39 -- no 69.3 Hz)
• PTT via its own serial interface
• Frequency, CTCSS TX/RX, squelch, volume, power, bandwidth, S-meter

ENABLE_KV4P = true
KV4P_PORT = /dev/kv4p

Two simultaneous SDR receivers via RTLSDR-Airband + SoapySDR Master/Slave mode. Audio captured through PipeWire virtual sinks.

• RSPduo runs both tuners via Master (mode 4) + Slave (mode 8) -- NOT mode 2
• Start order is critical: Master must stream before Slave starts (gateway enforces this)
• Requires fventuri's SoapySDRPlay3 fork (dual-tuner-submodes branch)
• 2.0 MSps per tuner limit in Master/Slave mode
• 10-slot channel memory persisted in sdr_channels.json
• Full web control: frequency, modulation (AM/NFM), sample rate, antenna, AGC/manual gain, squelch

ENABLE_SDR = true
SDR_DEVICE_NAME = pw:sdr_capture
SDR2_DEVICE_NAME = pw:sdr_capture2

These appear as nodes in the routing page. Wire them to busses to create your audio paths.

v2.0 streams directly to Icecast using an internal ffmpeg process -- no DarkIce, no ALSA loopback devices, no external configuration files. The Icecast stream appears as a sink in the routing page; wire any bus output to it.

ENABLE_STREAM_OUTPUT = true
STREAM_SERVER = audio9.broadcastify.com
STREAM_PORT = 80
STREAM_MOUNT = /yourmount
STREAM_BITRATE = 16

The dashboard shows live streaming status: connection state, bytes sent, TCP send rate, RTT. Start/Stop/Restart controls available on the controls page.

Two browser audio modes, toggled from the nav bar:

• MP3 -- shared FFmpeg encoder, works everywhere
• PCM -- low-latency WebSocket stream with 200ms pre-buffer

The Windows audio client (windows_audio_client.py) operates in full duplex -- sending and receiving audio simultaneously over two TCP connections:

The client uses callback-based audio streams for WDM-KS compatibility. Both directions appear as routable source/sink nodes in the routing page.

pip install sounddevice numpy
python windows_audio_client.py [host]

Config saved to windows_audio_client.json.

Connects remote radios to the gateway over TCP with duplex audio and structured commands. Any number of endpoints connect simultaneously, each with its own source in the routing system.

Endpoint (Pi + AIOC + radio)     Gateway
  link_endpoint.py          <TCP>  GatewayLinkServer
  +-- AIOCPlugin                    +-- LinkAudioSource per endpoint
  |   +-- audio in/out              +-- per-endpoint controls
  |   +-- HID PTT                   +-- mDNS publish (_radiogateway._tcp)
  +-- mDNS discover

Features: plugin architecture (RadioPlugin base class, AudioPlugin, AIOCPlugin), mDNS auto-discovery, per-endpoint PTT/gain/mute, JSON commands with ACK, cable-pull resilience, 60s PTT safety timeout.

# Auto-discover gateway on LAN:
python3 tools/link_endpoint.py --name pi-aioc --plugin aioc

# Manual server:
python3 tools/link_endpoint.py --server 192.168.2.140:9700 --name pi-aioc --plugin aioc

[link]
ENABLE_GATEWAY_LINK = true
LINK_PORT = 9700

Packet radio via Direwolf TNC on the FTM-150 link endpoint. The endpoint switches between audio mode (normal radio RX/TX) and data mode (Direwolf owns the AIOC for packet decode/encode). APRS decode and Winlink email are both supported.

Gateway                          Pi Endpoint (192.168.2.121)
  packet_radio.py                  AIOCPlugin (gateway_link.py)
  +-- KISS TCP client                +-- audio/data mode switch
  +-- APRS decoder                   +-- Direwolf TNC subprocess
  +-- Pat CLI (compose/connect)      +-- CM108 PTT via HID GPIO
  +-- Web UI (packet.html)           +-- AGW port 8010, KISS port 8001

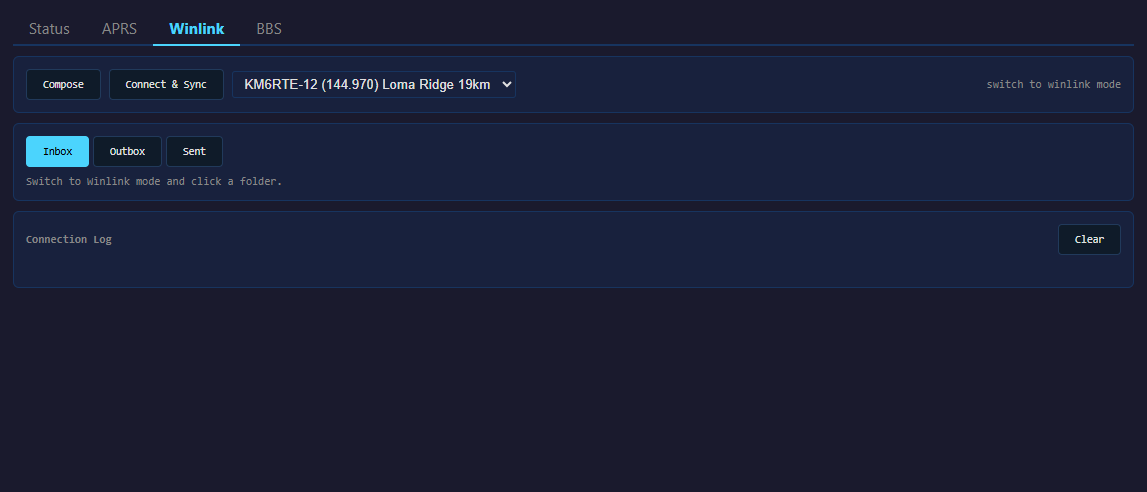

Compose and receive email over VHF packet radio through Winlink CMS gateways. Uses Pat (getpat.io) as the B2F protocol engine, controlled via CLI from the gateway's web UI.

• Compose -- To, CC, Subject, Body form. Messages queued locally via pat compose.
• Connect & Sync -- Connects to a Winlink RMS gateway via pat connect ax25+agwpe:///CALLSIGN. Sends queued outbound, receives inbound. Live connection log shows B2F protocol exchange in real-time.
• Inbox / Outbox / Sent -- Reads Pat's local mailbox. Click to view full message.
• Tested gateway: KM6RTE-12 on 144.970 MHz (Loma Ridge, Orange County, CA) at 1200 baud.

[packet]
ENABLE_PACKET = true
PACKET_CALLSIGN = YOURCALL
PACKET_SSID = 1
PACKET_MODEM = 1200
PACKET_REMOTE_TNC = 192.168.2.121

Pat config (with Winlink password) lives at ~/.config/pat/config.json -- not in the repo.

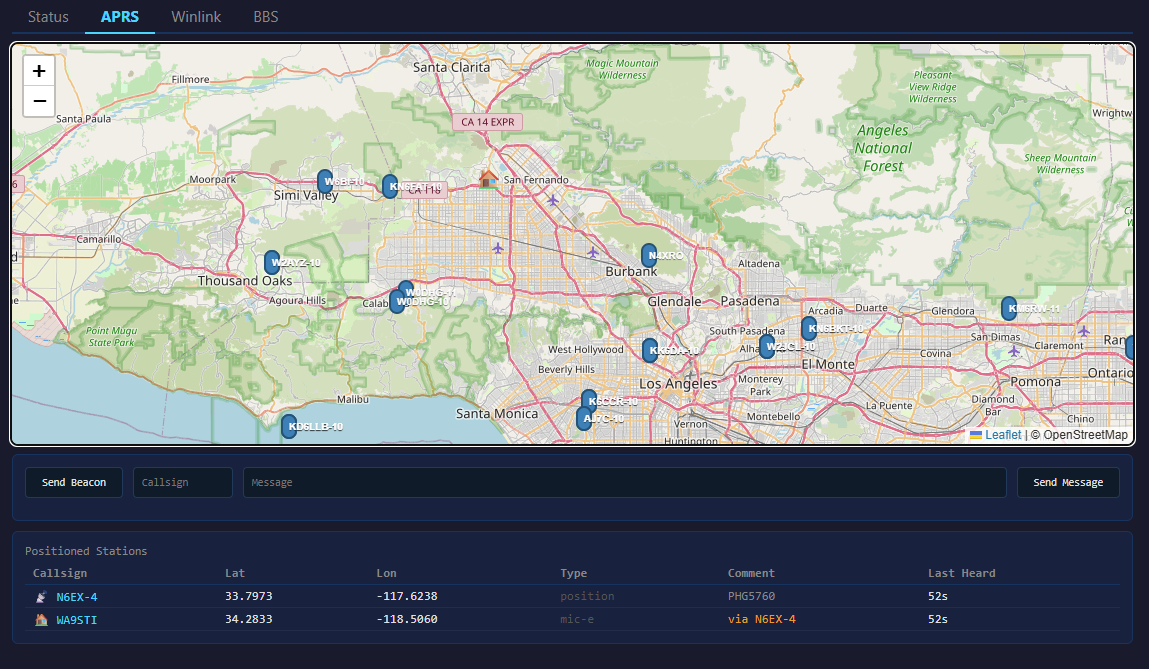

Decodes all standard APRS position formats (uncompressed, compressed, MIC-E, timestamped), weather reports, status messages, objects, and telemetry. Digipeater path extraction with relay lines on the map.

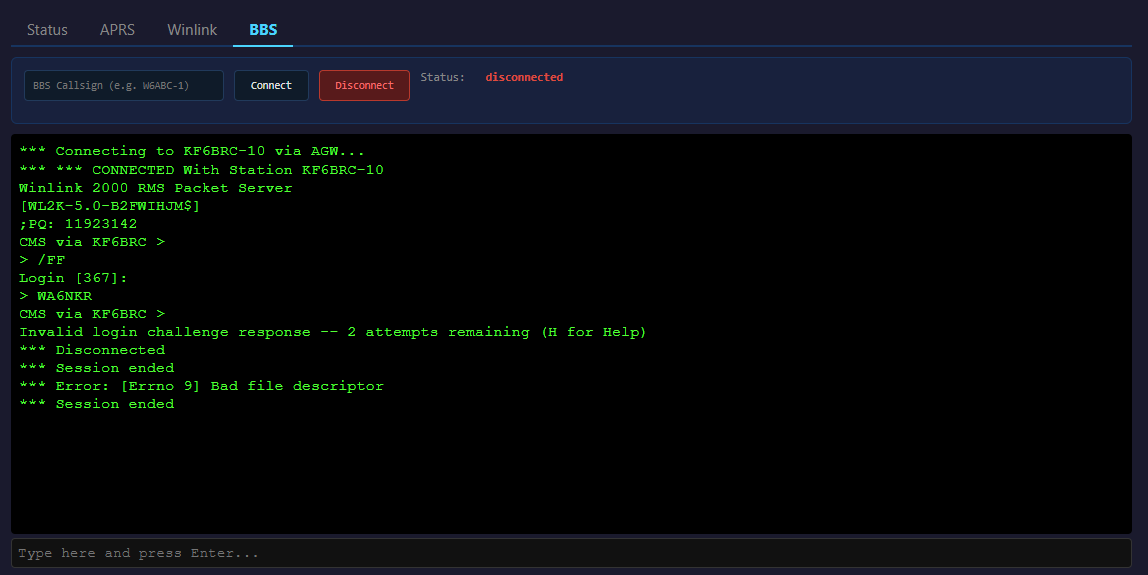

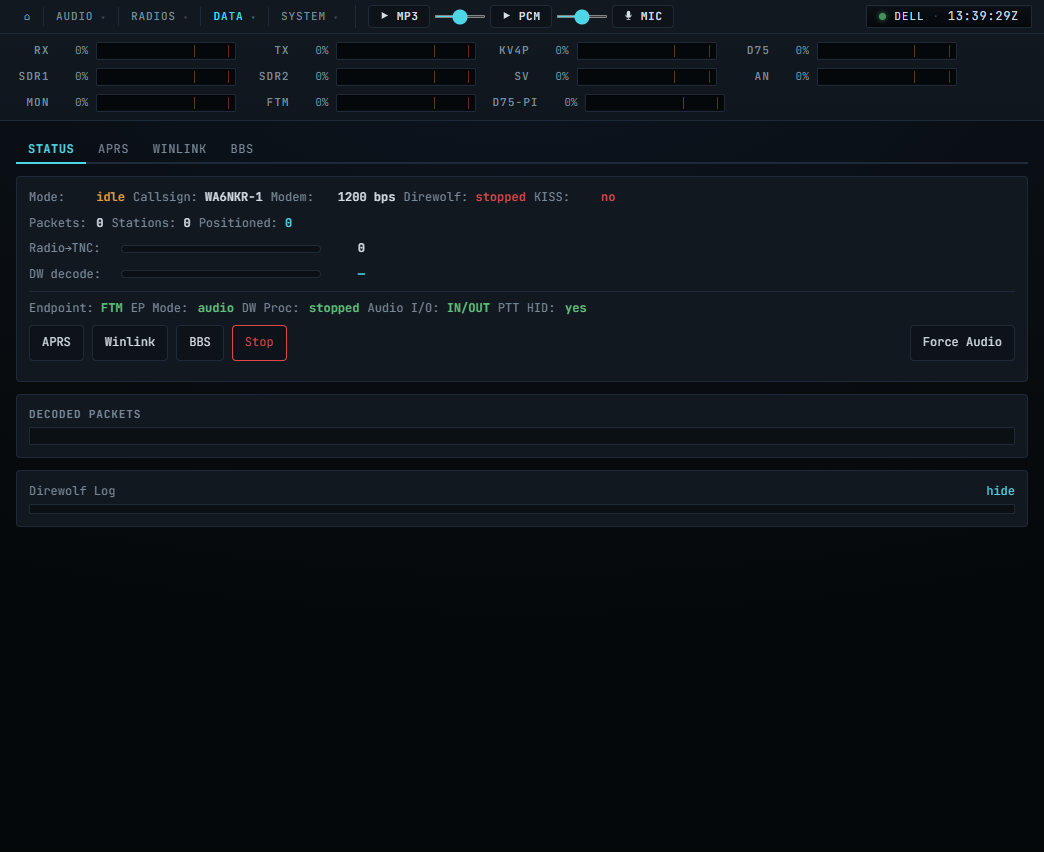

/packet with four tabs: Status (Direwolf log, KISS state, packet count), APRS (Leaflet map with station markers and relay paths), Winlink (compose, inbox, connect & sync), BBS (terminal -- planned).

gateway_mcp.py is a stdio-based MCP server with 44+ tools that gives Claude (or any MCP-compatible AI) full control of the gateway via its HTTP API.

The MCP config lives in .mcp.json in the project root. Enable in Claude Code settings:

{ "enableAllProjectMcpServers": true }

The MCP server runs as a Claude Code child process -- restarting the gateway does NOT restart MCP.

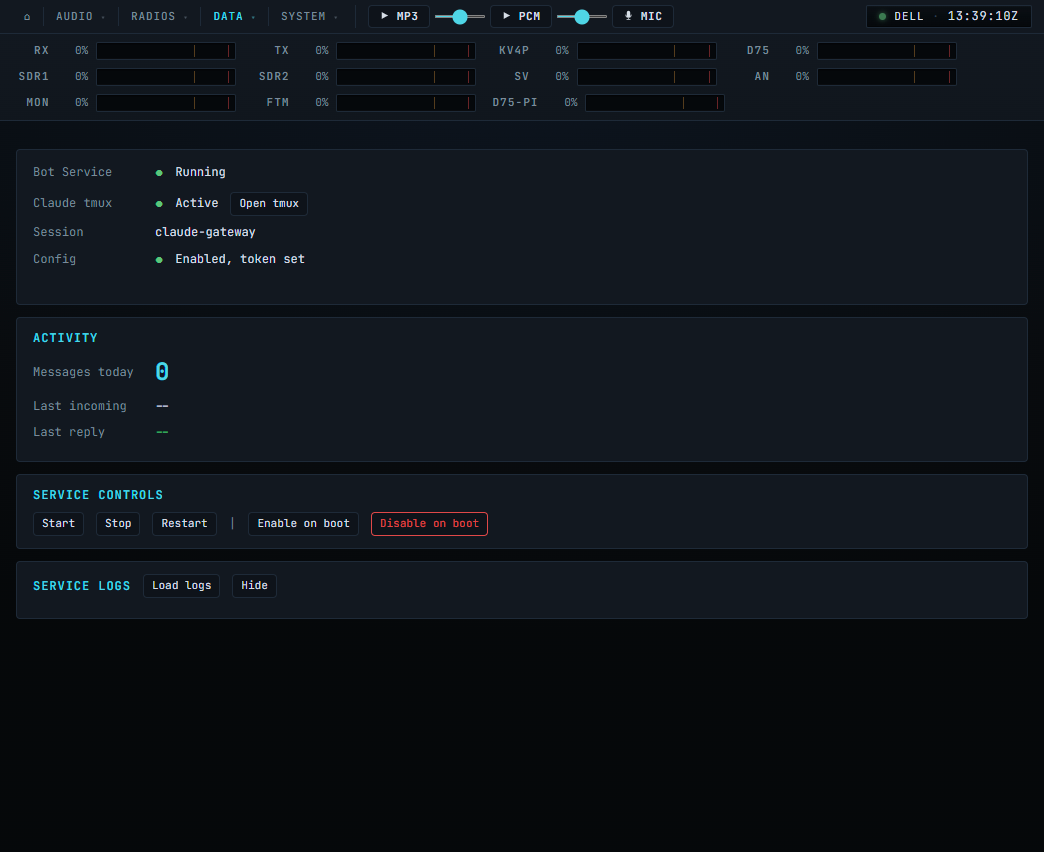

Control the gateway from your phone. Text messages route through Claude Code with MCP tools. Voice notes transmit directly over radio.

Text:  Phone -> Telegram -> telegram_bot.py -> tmux -> Claude Code (MCP) -> telegram_reply()
Voice: Phone -> Telegram -> telegram_bot.py -> ffmpeg -> port 9601 -> radio TX (PTT auto)

Setup:

1. Create a bot via @BotFather, copy the token
2. Get your chat ID: curl "https://api.telegram.org/bot<TOKEN>/getUpdates"
3. Configure:

   [telegram]
   ENABLE_TELEGRAM = true
   TELEGRAM_BOT_TOKEN = 123456:ABC-DEF...
   TELEGRAM_CHAT_ID = 987654321

4. Start Claude Code in tmux: tmux new-session -s claude-gateway then claude --dangerously-skip-permissions
5. Enable the service: sudo systemctl enable --now telegram-bot

Scheduled radio announcements powered by Claude CLI. Claude searches the web, composes a natural spoken message, and the gateway broadcasts via Edge TTS + PTT. No API key needed -- uses existing Claude Code auth.

1. Configure announcement slots with interval, voice, target length, and prompt
2. On each interval, claude -p is called with the prompt
3. Response converted to speech via Edge TTS and broadcast on radio
4. If the radio is busy, waits up to ~8 minutes for a clear channel

ENABLE_SMART_ANNOUNCE = true
SMART_ANNOUNCE_START_TIME = 08:00
SMART_ANNOUNCE_END_TIME = 22:00

SMART_ANNOUNCE_1_PROMPT = Weather forecast for London, UK
SMART_ANNOUNCE_1_INTERVAL = 3600
SMART_ANNOUNCE_1_VOICE = 1
SMART_ANNOUNCE_1_TARGET_SECS = 20
SMART_ANNOUNCE_1_MODE = auto

Up to 19 announcement slots. Trigger manually via the controls page or MCP tools.

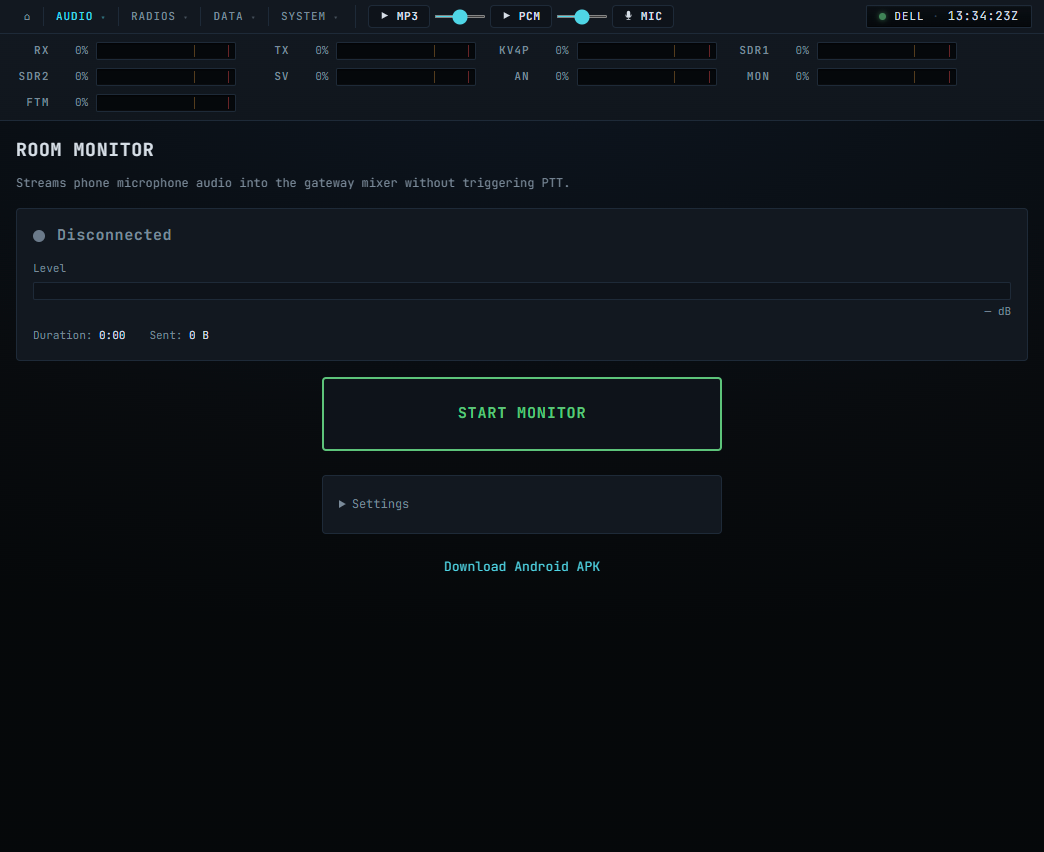

Stream a device microphone to the gateway over WebSocket. Works as a source in the routing system -- wire it to any bus.

• Browser: /monitor page with gain control (1x-50x), VAD threshold, level meter
• Android APK: tools/room-monitor.apk (also downloadable from the gateway at /monitor-apk). Foreground service with persistent notification, streams even with screen locked.

Works through Cloudflare tunnel.

ENABLE_WEB_MONITOR = true

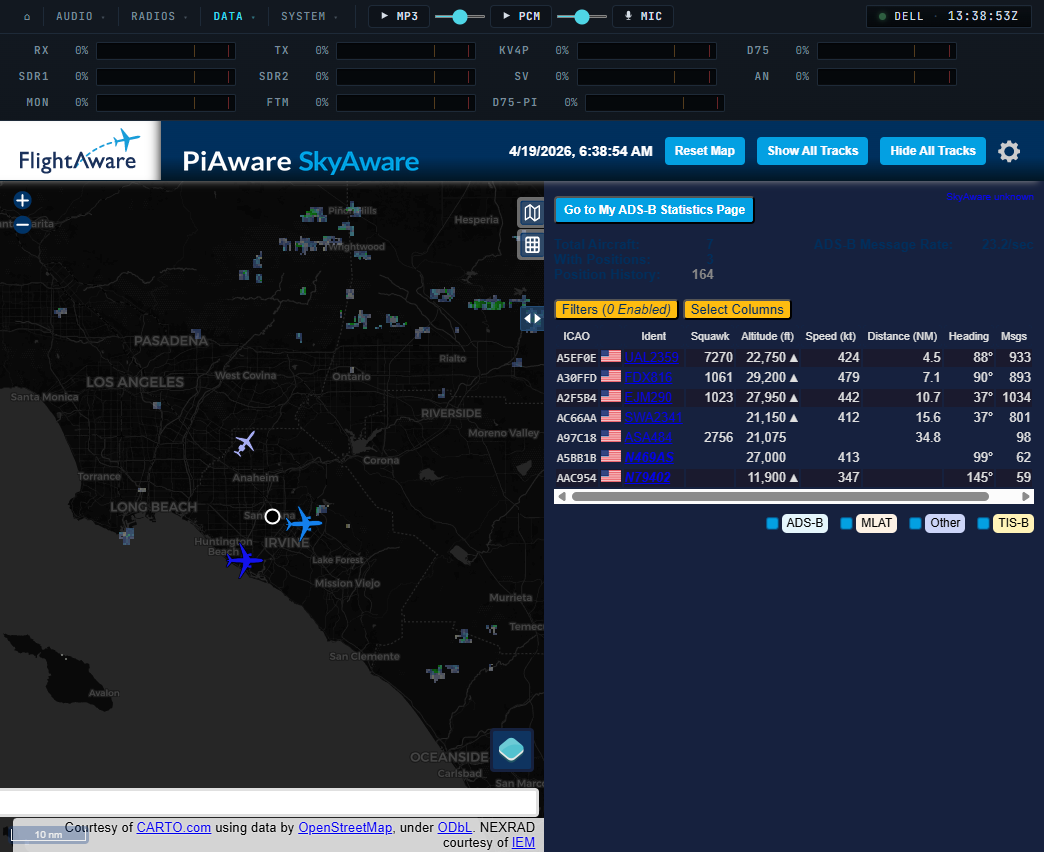

Embedded FlightAware SkyAware map via reverse proxy. Dark mode with NEXRAD weather overlay.

• Hardware: RTL2838/R820T USB SDR dongle (separate from RSPduo)
• Stack: dump1090-fa + lighttpd on port 30080; fr24feed uploads to FlightRadar24
• Access: Single-port through gateway at /aircraft, works through Cloudflare tunnel

ENABLE_ADSB = true
ADSB_PORT = 30080

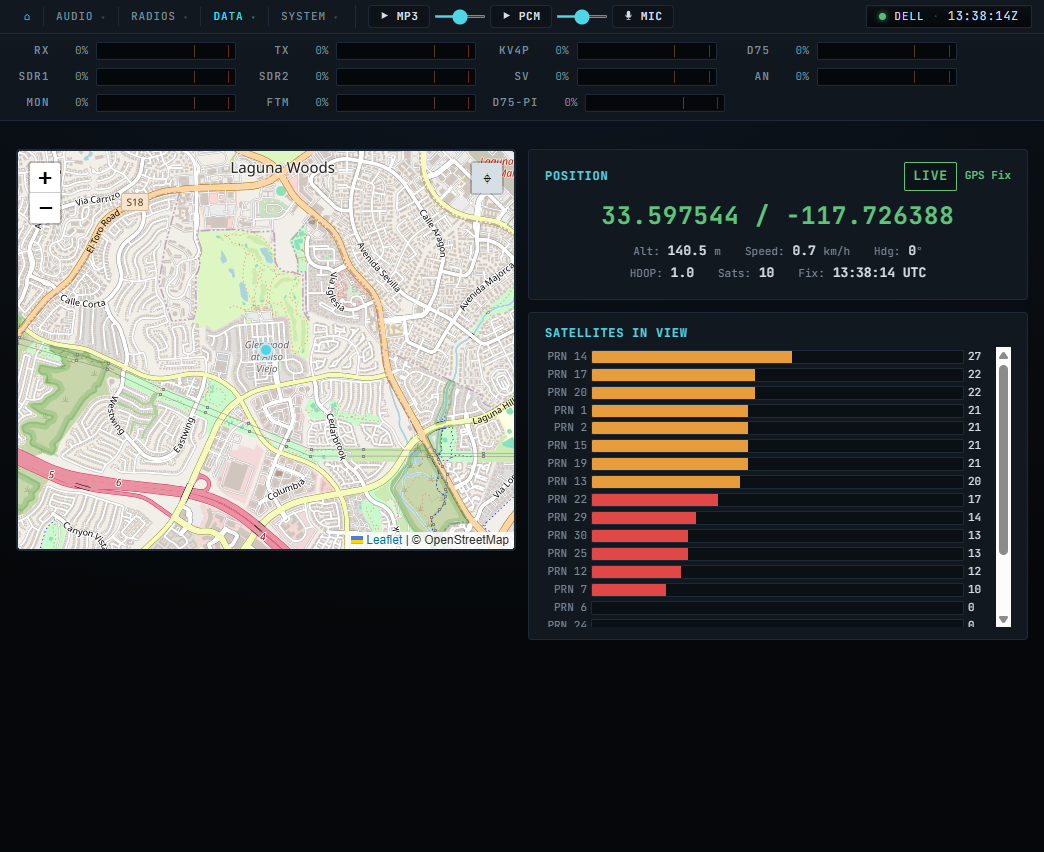

USB serial GPS module (VK-162 or any NMEA device) with a built-in simulation mode for testing without hardware.

• Live Leaflet/OpenStreetMap with pulsing position dot and DOP-based probability ring (color-coded by accuracy)
• Satellite signal strength bar chart (PRN, elevation, azimuth, SNR)
• Movement trail tracking
• SIM/LIVE toggle -- switch between real hardware and simulated position without gateway restart
• Simulation mode outputs fake data at a configurable position (default DM13do, Santa Ana CA)
• GPS position feeds the repeater database for proximity queries

ENABLE_GPS = true
GPS_PORT = /dev/ttyACM1    # or 'simulate' for fake data
GPS_BAUD = 9600

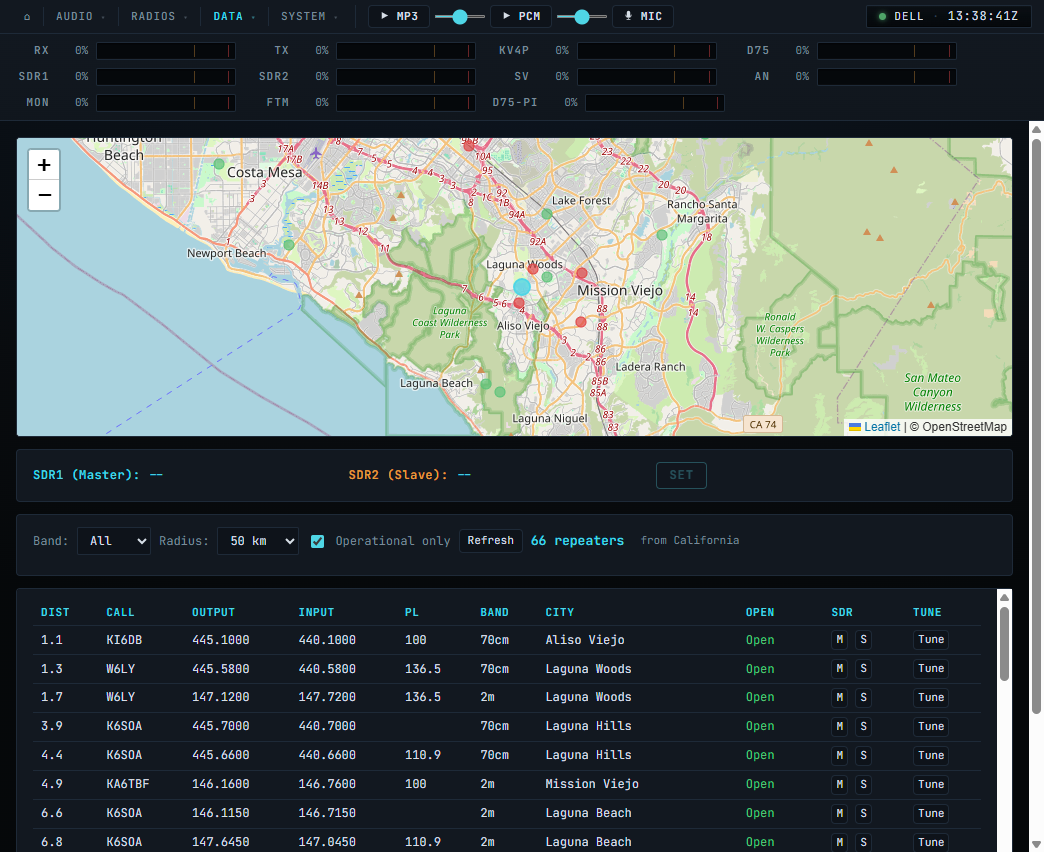

Nearby amateur radio repeaters from the Amateur Repeater Directory, filtered by GPS position.

• Downloads per-state JSON files, caches locally for 24h, auto-refreshes on position change
• State detection from GPS coordinates (includes adjacent states for border coverage)
• Leaflet map with color-coded markers (green=2m, red=70cm, yellow=other)
• Filterable table: band, radius (10-200km), operational status
• MASTER/SLAVE SDR tuning -- assign repeaters to SDR1 and SDR2, then SET tunes both with a single restart
• KV4P Tune button sets frequency + CTCSS tone on the KV4P HT
• MCP tools: nearby_repeaters, repeater_info, repeater_tune, repeater_refresh

ENABLE_REPEATER_DB = true
REPEATER_RADIUS_KM = 50

Live voice-to-text using OpenAI Whisper (local, no cloud API). Transcriptions are tagged with the source frequency so you know which radio/channel produced each line.

• Two modes: Chunked (transcribe after each transmission) and Streaming (rolling buffer, partial results)
• VAD-gated: only transcribes when signal is present
• Frequency tagging: output prefixed with [446.760/462.550] showing which radio/SDR tuner the audio came from
• Forward to Mumble chat and/or Telegram
• Configurable: model size, language, VAD threshold, hold time, audio boost

ENABLE_TRANSCRIPTION = true
TRANSCRIBE_MODE = streaming
TRANSCRIBE_MODEL = base
TRANSCRIBE_LANGUAGE = en

See the Gateway Link documentation for the full protocol spec, plugin development guide, and roadmap.

Google TTS via !speak <text> from Mumble chat. 9 voice accents (US, UK, AU, IN, SA, CA, IE, FR, DE). Configurable speed and volume.

ENABLE_TTS = true
TTS_DEFAULT_VOICE = 1       # 1=US 2=UK 3=AU 4=IN 5=SA 6=CA 7=IE 8=FR 9=DE
TTS_SPEED = 1.3

Morse code broadcast via !cw <text> from Mumble. Configurable WPM, frequency, and volume.

10 announcement slots with soundboard. Supports WAV, MP3, FLAC with automatic resampling. File naming: station_id.mp3 for slot 0, 1_welcome.mp3 for slot 1, etc.

TheLinkBox-compatible named pipe interface.

ENABLE_ECHOLINK = false
ECHOLINK_RX_PIPE = /tmp/echolink_rx
ECHOLINK_TX_PIPE = /tmp/echolink_tx

Run one or two Mumble servers directly from the gateway. No external murmurd needed.

ENABLE_MUMBLE_SERVER_1 = true
MUMBLE_SERVER_1_PORT = 64738
MUMBLE_SERVER_1_PASSWORD = yourpassword

The /voice page provides a web-based voice interface to Claude Code running in a tmux session. Start/stop session controls, speech-to-text input.

Scheduled tasks with configurable triggers. Manage via the MCP tools (automation_status, automation_history, automation_reload, automation_trigger).

Built-in No-IP compatible updater.

ENABLE_DDNS = true
DDNS_HOSTNAME = your.ddns.net
DDNS_UPDATE_INTERVAL = 300

Gmail notifications on startup, errors, and events.

ENABLE_EMAIL = true
EMAIL_ADDRESS = user@gmail.com
EMAIL_APP_PASSWORD = xxxx-xxxx-xxxx-xxxx

All settings live in gateway_config.txt (INI format with [section] headers). Copy the template from examples/gateway_config.txt and edit to suit your setup.

The web Config page (/) provides a live editor with collapsible sections and Save & Restart.

Key sections: [mumble], [audio], [ptt], [sdr], [web], [cat], [d75], [kv4p], [streaming], [smart_announce], [telegram], [adsb], [link], [remote_audio], [email], [ddns], [echolink], [relay], [automation], [gps], [repeaters], [transcription].

Security: gateway_config.txt is in .gitignore -- it contains stream keys and passwords. Never commit it.
