The open-source platform to build AI agents and run your agentic workforce. Connect 1,000+ integrations and LLMs to orchestrate agentic workflows.

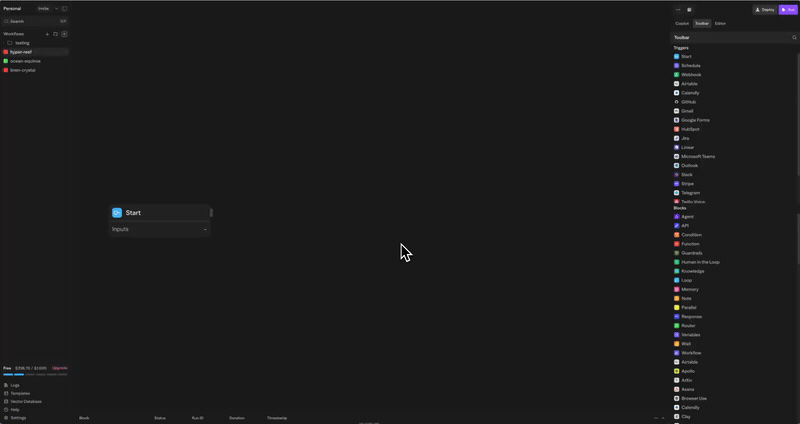

Design agent workflows visually on a canvas—connect agents, tools, and blocks, then run them instantly.

Leverage Copilot to generate nodes, fix errors, and iterate on flows directly from natural language.

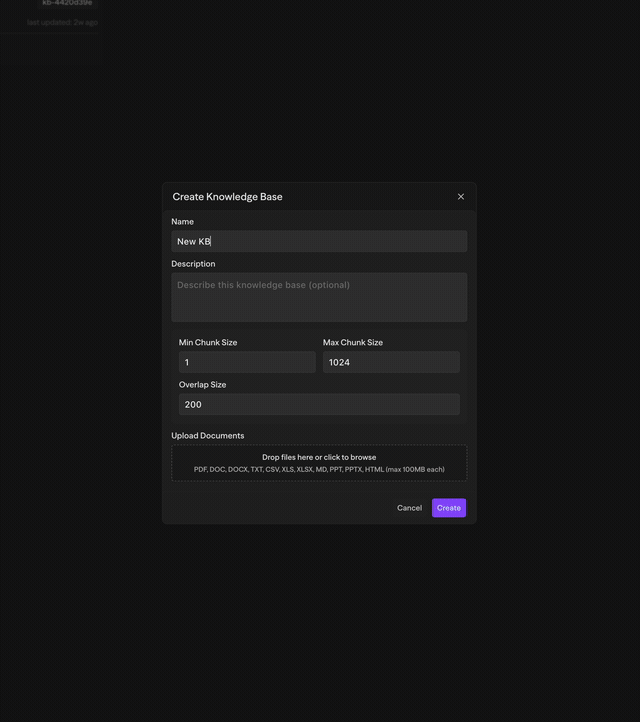

Upload documents to a vector store and let agents answer questions grounded in your specific content.

npx simstudio

→ http://localhost:3000

Docker must be installed and running on your machine.

git clone https://github.com/simstudioai/sim.git && cd sim
docker compose -f docker-compose.prod.yml up -d

Open http://localhost:3000

The Docker Compose stack starts a dedicated worker container by default. If REDIS_URL is not configured, the worker will start, log that it is idle, and do no queue processing. This is expected. Queue-backed API, webhook, and schedule execution requires Redis; installs without Redis continue to use the inline execution path.

Sim also supports local models via Ollama and vLLM — see the Docker self-hosting docs for setup details.

Requirements: Bun, Node.js v20+, PostgreSQL 12+ with pgvector

1. Clone and install:

git clone https://github.com/simstudioai/sim.git
cd sim
bun install
bun run prepare  # Set up pre-commit hooks

2. Set up PostgreSQL with pgvector:

docker run --name simstudio-db -e POSTGRES_PASSWORD=your_password -e POSTGRES_DB=simstudio -p 5432:5432 -d pgvector/pgvector:pg17

Or install manually via the pgvector guide.

3. Configure environment:

cp apps/sim/.env.example apps/sim/.env
# Create your secrets
perl -i -pe "s/your_encryption_key/$(openssl rand -hex 32)/" apps/sim/.env
perl -i -pe "s/your_internal_api_secret/$(openssl rand -hex 32)/" apps/sim/.env
perl -i -pe "s/your_api_encryption_key/$(openssl rand -hex 32)/" apps/sim/.env
# DB configs for migration
cp packages/db/.env.example packages/db/.env
# Edit both .env files to set DATABASE_URL="postgresql://postgres:your_password@localhost:5432/simstudio"

4. Run migrations:

cd packages/db && bun run db:migrate

5. Start development servers:

bun run dev:full  # Starts Next.js app, realtime socket server, and the BullMQ worker

If REDIS_URL is not configured, the worker will remain idle and execution continues inline.

Or run separately: bun run dev (Next.js), cd apps/sim && bun run dev:sockets (realtime), and cd apps/sim && bun run worker (BullMQ worker).

Copilot is a Sim-managed service. To use Copilot on a self-hosted instance:

• Go to https://sim.ai → Settings → Copilot and generate a Copilot API key
• Set COPILOT_API_KEY environment variable in your self-hosted apps/sim/.env file to that value

See the environment variables reference for the full list, or apps/sim/.env.example for defaults.

• Framework: Next.js (App Router)
• Runtime: Bun
• Database: PostgreSQL with Drizzle ORM
• Authentication: Better Auth
• UI: Shadcn, Tailwind CSS
• State Management: Zustand
• Flow Editor: ReactFlow
• Docs: Fumadocs
• Monorepo: Turborepo
• Realtime: Socket.io
• Background Jobs: Trigger.dev
• Remote Code Execution: E2B

We welcome contributions! Please see our Contributing Guide for details.

This project is licensed under the Apache License 2.0 - see the LICENSE file for details.

Made with ❤️ by the Sim Team
